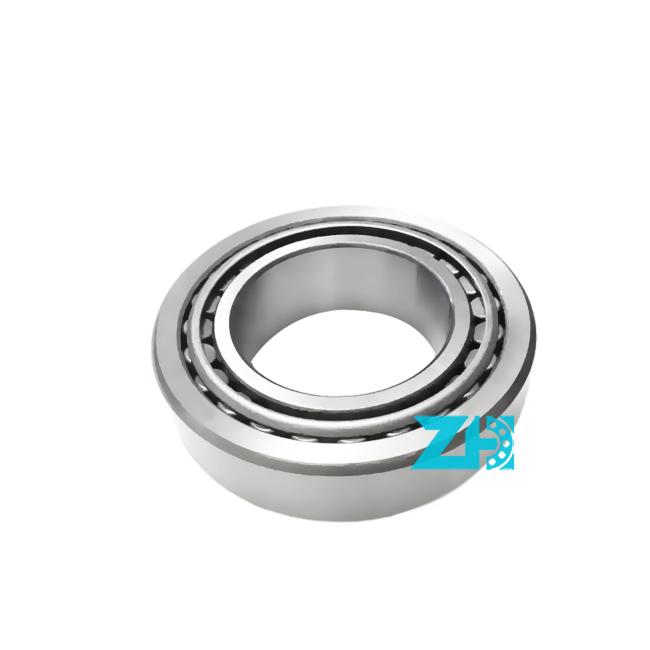

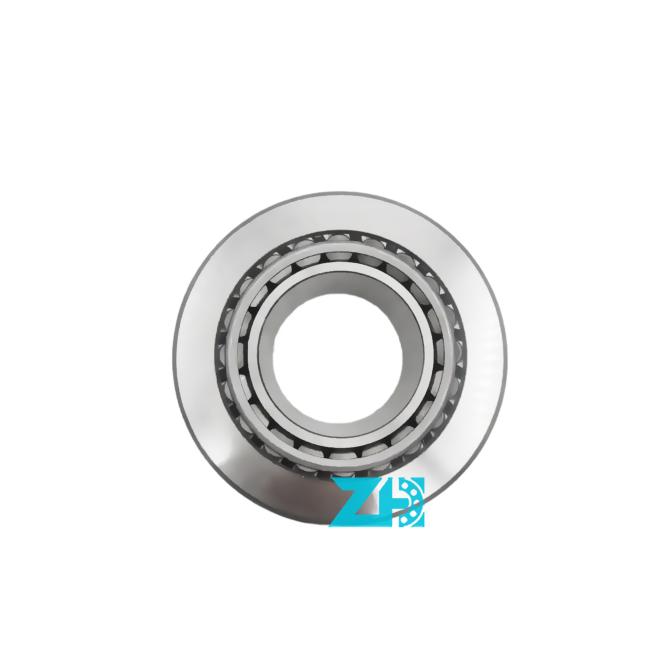

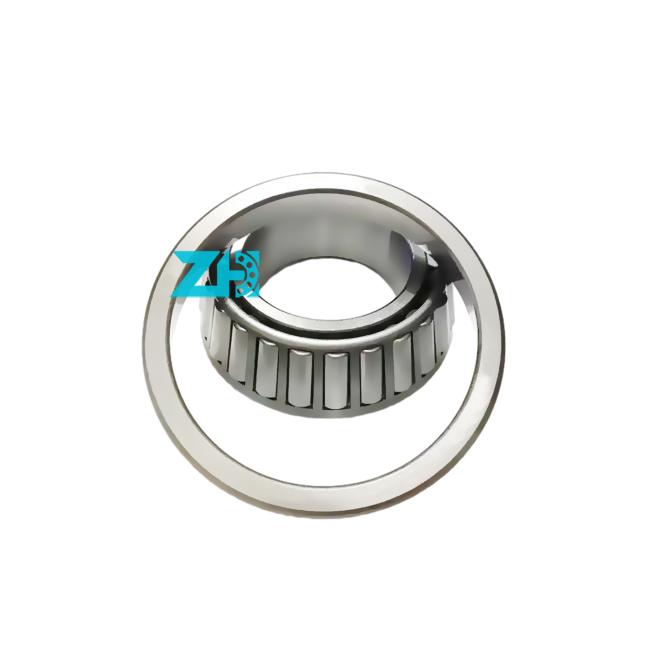

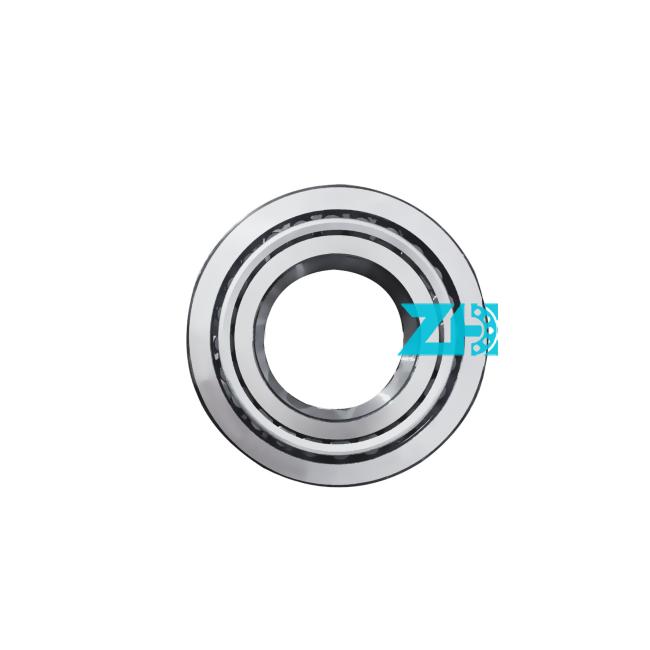

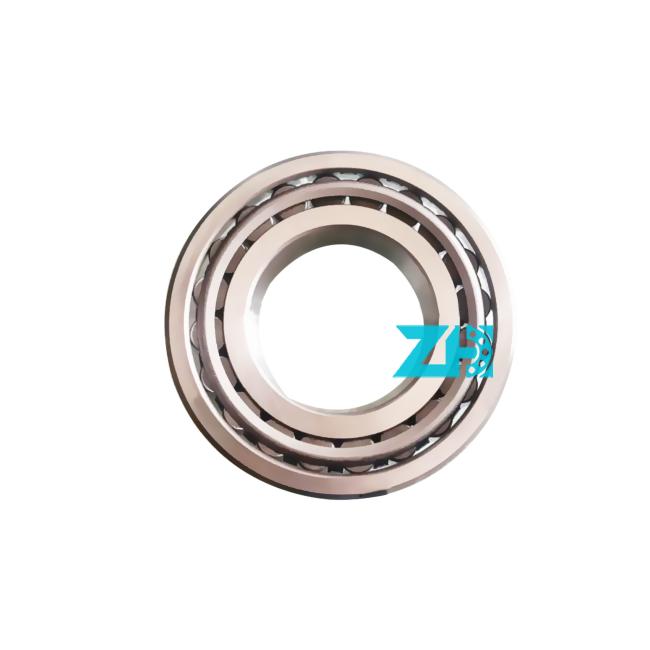

Taper Roller Bearing Truck Bearings F-805015 F801400 size 70x165x60mm tapered roller thrust bearings
Taper Roller Bearing F-805015 F801400 size 70x165x60mm spare parts truck bearing Factory supply
Technical Parameters:
| model |
F-805015 F801400 |
| Size(d*D*B) |
70 x 165 X60mm |
| Type | Taper Roller Bearing |
| Precision | P0/P6/P5/P4 |
| Feature |
Long Life,Stable Performance and Durable |
| Material | GCR15 |
| After-sales Service |
Online Support Professional Service |
| Stock |
Sufficient |
Product Description
A taper roller bearing, also known as a tapered roller bearing, is a type of rolling element bearing that can accommodate both radial and axial loads. It consists of an outer ring, an inner ring, tapered rollers, and a cage that holds the rollers in place. Taper roller bearings are designed to handle high radial and axial (thrust) loads and are commonly used in applications where heavy loads and high rotational speeds are involved.
Tapered roller bearings are commonly used in various industries and applications, including automotive wheel bearings, truck transmissions, construction equipment, agricultural machinery, and industrial gearboxes. Their ability to handle both radial and axial loads makes them suitable for applications where combined loads are present.
A tapered roller bearing consists of an inner ring (cone), an outer ring (cup), tapered rolling elements (rollers), and a cage. The inner and outer rings have tapered raceways, and the rollers are arranged in a conical shape between the raceways. The angle of the taper on the raceways and rollers is designed to allow for effective load distribution and axial thrust.
Other bearing model catalog:
| Cone Bearing | Cup Bearing | d(mm) | D(mm) | T(mm) |
| EE107060 | 107105CD | 152.4 | 268.3 | 160.3 |
| EE450601 | 451215CD | 152.4 | 308.0 | 200.0 |
| HH234048 | HH234011CD | 152.4 | 308.0 | 200.0 |
| HH234049 | HH234011CD | 152.4 | 308.0 | 200.0 |
| 81606 | 81963CD | 154.0 | 244.5 | 108.0 |
| 46780 | 46720CD | 158.8 | 225.4 | 85.7 |
| 81629 | 81963CD | 160.0 | 244.5 | 108.0 |
| 81630 | 81963CD | 160.0 | 244.5 | 108.0 |
| HM237532 | HM237510CD | 160.3 | 288.9 | 142.9 |
| 46790 | 46720CD | 165.1 | 225.4 | 85.7 |
| 67780 | 67720CD | 165.1 | 247.7 | 103.2 |
| M235145 | M235113CD | 165.1 | 254.0 | 101.6 |
| 94649 | 94114CD | 165.1 | 288.9 | 142.9 |
| HM237535 | HM237510CD | 165.1 | 288.9 | 142.9 |
| 46792 | 46720CD | 166.7 | 225.4 | 85.7 |
| 67782 | 67720CD | 168.3 | 247.7 | 103.2 |
| M235149 | M235113CD | 170.0 | 254.0 | 101.6 |
| 94675 | 94114CD | 171.5 | 288.9 | 142.9 |
| 67786 | 67720CD | 174.6 | 247.7 | 103.2 |
| 67787 | 67720CD | 174.6 | 247.7 | 103.2 |
| 94687 | 94114CD | 174.6 | 288.9 | 142.9 |
| HM237542 | HM237510CD | 174.6 | 288.9 | 142.9 |
| 36990 | 36920CD | 177.8 | 227.0 | 66.7 |
| 67790 | 67720CD | 177.8 | 247.7 | 103.2 |
| 67791 | 67720CD | 177.8 | 247.7 | 103.2 |
| M238840 | M238810CD | 177.8 | 269.9 | 119.1 |
| 94700 | 94114CD | 177.8 | 288.9 | 142.9 |
| HM237545 | HM237510CD | 177.8 | 288.9 | 142.9 |
| HM237545H | HM237510CD | 177.8 | 288.9 | 142.9 |
| EE222070 | 222127CD | 177.8 | 320.7 | 185.7 |
| H239640 | H239612CD | 177.8 | 320.7 | 185.7 |
| 93708 | 93127CD | 180.0 | 317.5 | 146.1 |
| 67883 | 67820CD | 184.2 | 266.7 | 103.2 |
| 67884 | 67820CD | 187.3 | 266.7 | 103.2 |
| M238849 | M238810CD | 187.3 | 269.9 | 119.1 |
| H239649 | H239612CD | 187.3 | 320.7 | 185.7 |
| 67885 | 67820CD | 190.5 | 266.7 | 103.2 |
| 93750 | 93127CD | 190.5 | 317.5 | 146.1 |
| EE420751 | 421451CD | 190.5 | 368.3 | 193.7 |
| 67887 | 67820CD | 192.1 | 266.7 | 103.2 |
| LM739749 | LM739710CD | 196.9 | 257.2 | 85.7 |
