P4 P0 P1 P5 P6 P3 Quality LEVEL Taper Roller Bearing NJ3045 NJ305ET2XU NJ305ET2XUP2RS CHROME STEEL
NJ3045 NJ305ET2XU NJ305ET2XUP2RS P4 P0 P1 P5 P6 P3 Quality LEVEL CHROME STEEL Taper Roller Bearing
Product introduction
These cylindrical bearings can be used in products ranging from cars, motorcycles, and bicycles to heavy machinery like lift cranes and even ship propellers.
As the industry leader in cylindrical bearings manufacturing and supplying, we have a variety of different models to fulfill the needs of our customers.
Our Cylindrical Bearings are available in a wide range of sizes and materials to accommodate the specific needs of all those who come to us looking for a reliable cylindrical bearing supplier.
We also can customize the specific cylindrical bearing that you need so that you get precisely what you are looking for.

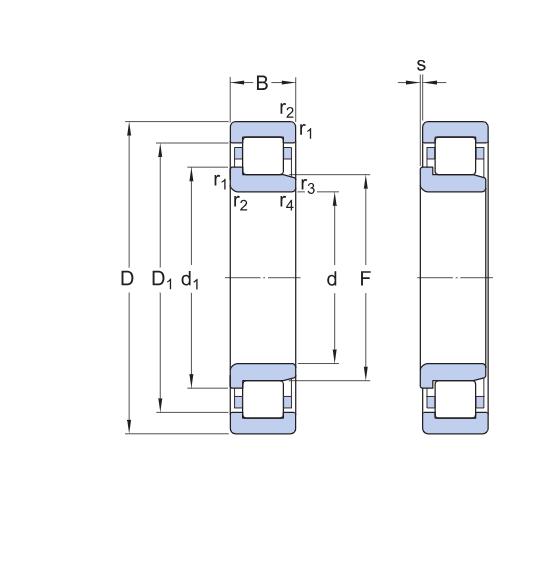

Dimensions![]()
| d |
25 mm
|
Bore diameter |
|---|---|---|
| D |
62 mm
|
Outside diameter |
| B |
17 mm
|
Width |
| d1 |
≈38.1 mm
|
Shoulder diameter of inner ring |
| D1 |
≈50.25 mm
|
Shoulder diameter of outer ring |
| F |
34 mm
|
Raceway diameter of inner ring |
| r1,2 |
min.1.1 mm
|
Chamfer dimension |
| r3,4 |
min.1.1 mm
|
Chamfer dimension |
| s |
max.1.3 mm
|
Permissible axial displacement |

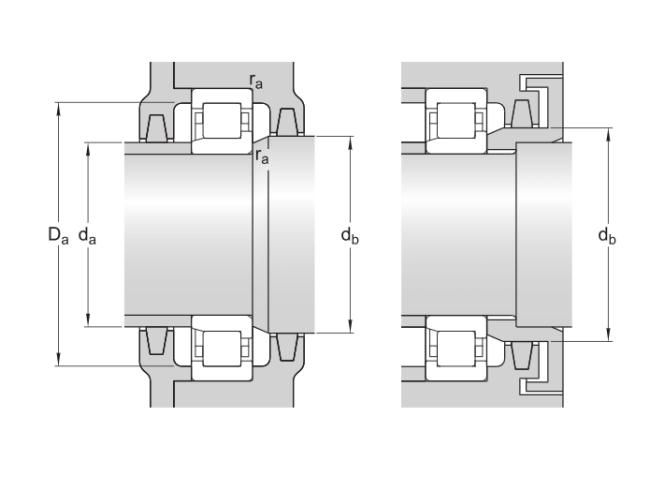

Abutment dimensions
| da |
min.31 mm
|
Diameter of spacer sleeve |
|---|---|---|
| da |
max.32.5 mm
|
Diameter of spacer sleeve |
| db |
min.40 mm
|
Diameter of shaft abutment |
| Da |
max.54.9 mm
|
Diameter of housing abutment |
| ra |
max.1 mm
|
Radius of fillet |
Calculation data
| Basic dynamic load rating | C |
46.5 kN
|
|---|---|---|
| Basic static load rating | C0 |
36.5 kN
|
| Fatigue load limit | Pu |
4.55 kN
|
| Reference speed |
12 000 r/min
|
|
| Limiting speed |
15 000 r/min
|
|
| Minimum load factor | kr |
0.15
|
| Limiting value | e |
0.2
|
| Calculation factor | Y |
0.6
|
-
Some other products are recommended
205ZC 30302ZC 32012ZC 6905ZC 30209ZC 306ZC 208ZC 2304ZC 32013ZC 304020ZC 3020ZC 6932ZC 2211ZC 345233ZC 208ZC 32207ZC 2305ZC 5904ZC 308ZC 553830ZC 209ZC 32211ZC 243320ZC 2212ZC 309ZC 5908ZC 2206ZC 32212ZC 2820ZC 2209ZC 2208ZC 206ZC 055ZC 354520ZC 30205ZC 6014ZC 6922ZC 305ZC 30212ZC 30211ZC 503806ZC 060ZC 33207ZC 309ZC 30213ZC 6008ZC 30314ZC 502515ZC

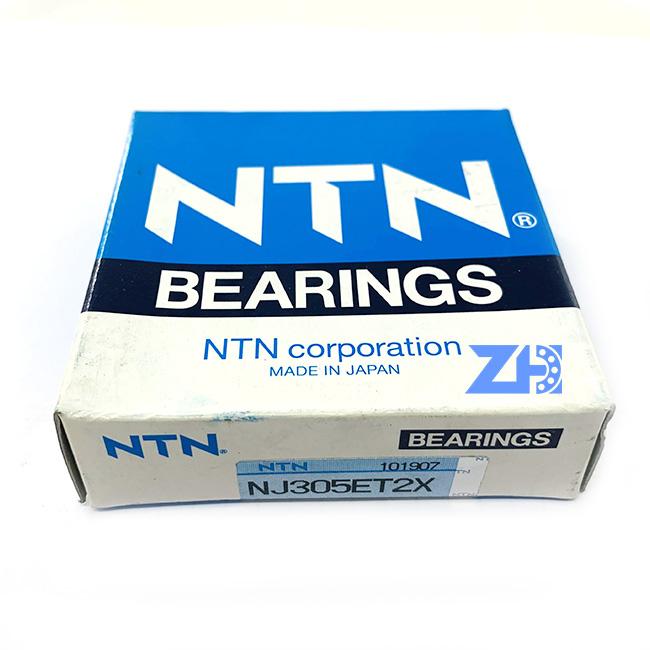

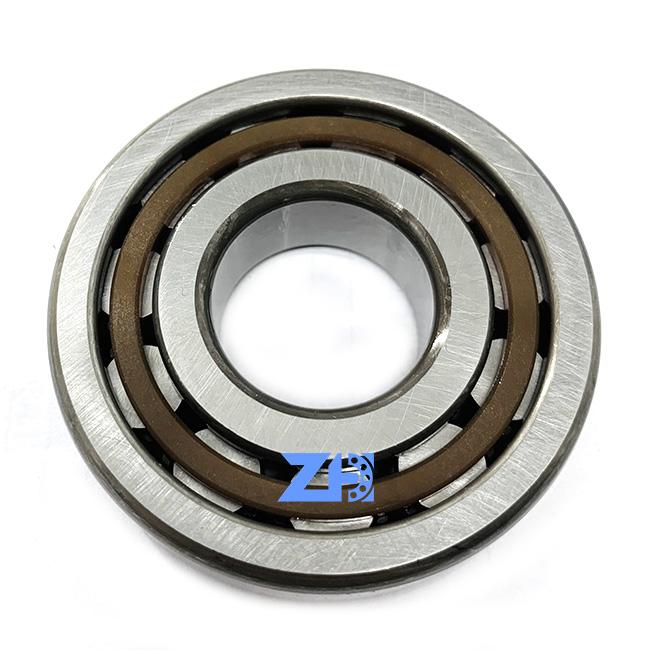

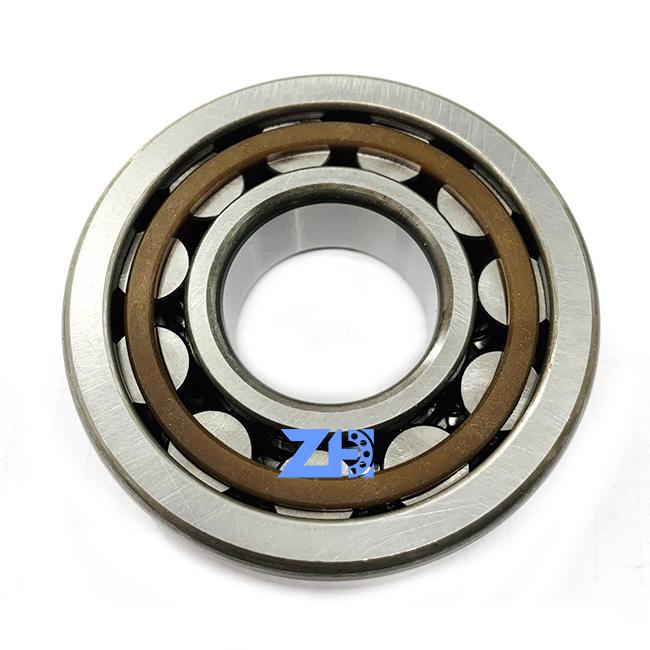

Picture show
![]()
![]()
![]()
![]()
![]()
![]()
