P0 P06 P5 P3 Quality LEVEL 20*52*15mm NJ304 NJ304ET2XU NJ304ET2XUP2RS CHROME STEEL Taper Roller Bearing
NJ304 NJ304ET2XU NJ304ET2XUP2RS P4 P0 P1 P5 P6 P3 Quality LEVEL CHROME STEEL Taper Roller Bearing
Product introduction
NJ304ET2XU roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.(Factory prices, welcome to buy)
- High radial load carrying capacity
- Long service life
- Locate the shaft axially in one direction
- Separable design

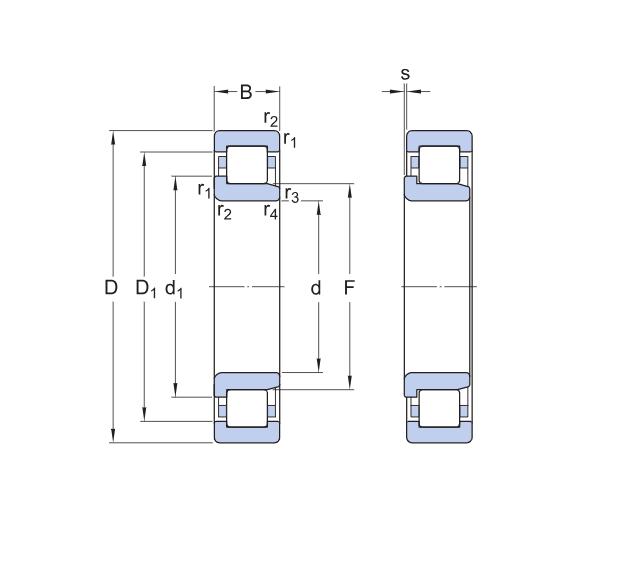

Dimensions
| d |
20 mm
|
Bore diameter |
|---|---|---|
| D |
52 mm
|
Outside diameter |
| B |
15 mm
|
Width |
| d1 |
≈31.2 mm
|
Shoulder diameter of inner ring |
| D1 |
≈41.85 mm
|
Shoulder diameter of outer ring |
| F |
27.5 mm
|
Raceway diameter of inner ring |
| r1,2 |
min.1.1 mm
|
Chamfer dimension |
| r3,4 |
min.0.6 mm
|
Chamfer dimension |
| s |
max.0.9 mm
|
Permissible axial displacement |

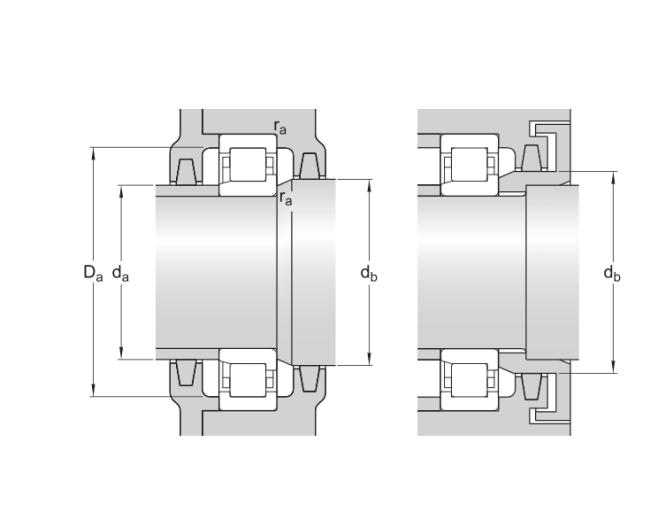

Abutment dimensions
| da |
min.26.1 mm
|
Diameter of spacer sleeve |
|---|---|---|
| da |
max.26.2 mm
|
Diameter of spacer sleeve |
| db |
min.33 mm
|
Diameter of shaft abutment |
| Da |
max.45.4 mm
|
Diameter of housing abutment |
| ra |
max.1 mm
|
Radius of fillet |
Calculation data
| Basic dynamic load rating | C |
35.5 kN
|
|---|---|---|
| Basic static load rating | C0 |
26 kN
|
| Fatigue load limit | Pu |
3.25 kN
|
| Reference speed |
15 000 r/min
|
|
| Limiting speed |
18 000 r/min
|
|
| Minimum load factor | kr |
0.15
|
| Limiting value | e |
0.2
|
| Calculation factor | Y |
0.6
|
-
More product recommendations
-
308ZC 553830ZC 209ZC 32211ZC 243320ZC 2212ZC 065ZC 309ZC 5908ZC 2206ZC 32212ZC 2820ZC 2209ZC 070ZC 2208ZC 206ZC 055ZC 354520ZC 30205ZC 6014ZC 6922ZC 305ZC 30212ZC 30211ZC 503806ZC 060ZC 33207ZC 309ZC 30213ZC 6008ZC 30314ZC 502515ZC 30305ZC 503807ZC 2207ZC 207ZC 6906ZC 503303ZC

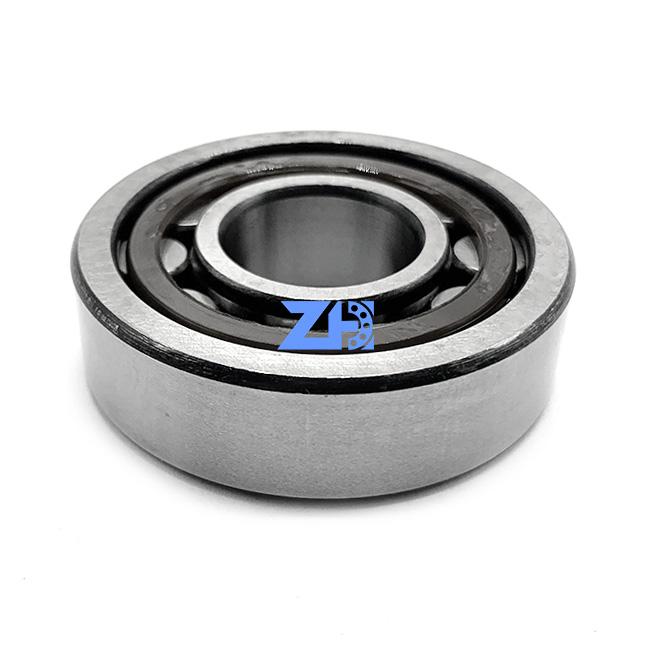

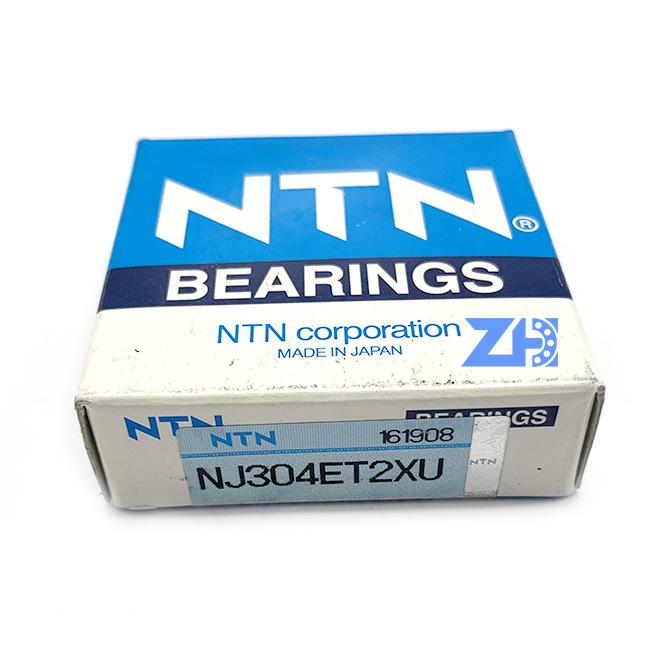

Picture show
![]()
