Good price NJ205 NJ205ET2X 205ET2X high Quality LEVELTaper Roller 52*52*15 Bearing Made in CHIINA MOQ 1
NJ205 NJ205ET2X 205ET2X P0 P5 P6 P4 P3 P2 P1 Quality LEVEL CHROME STEEL Taper Roller Bearing
Product introdution

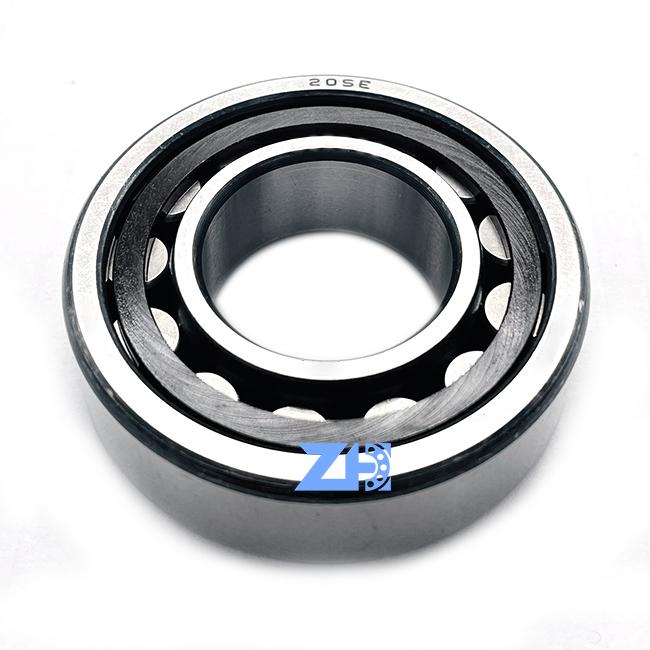

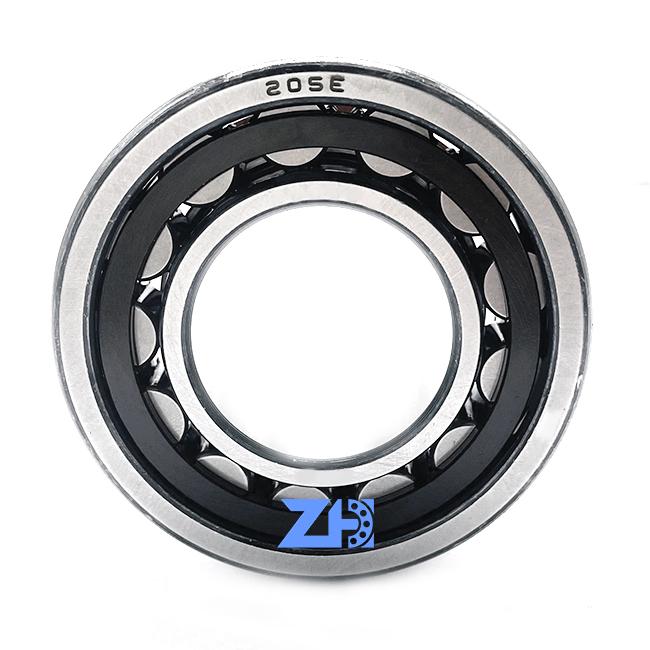

NJ205ET2X Cylindrical Roller Bearing is a type of linear bearing that uses one or more matched rows of cylindrical rollers to support combined loads, while allowing for rotational and axial movement. This bearing features a central shaft, inner ring with an integral flange, two integral flanges, and an outer ring that's fully removable. It can accommodate heavy radial loads at high speeds, has been pre-lubricated with light oil, ensuring it's ready for use upon arrival.

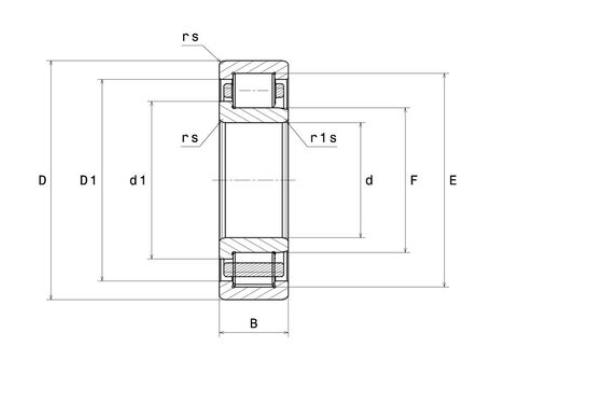

| PRODUCT DEFINITION | |
|---|---|
| Brand | ZH |
| d - Internal diameter | 25 mm |
| D - External diameter | 52 mm |
| B - Bearing/Inner ring width | 15 mm |
| E - Upper roller diameter | 46,5 mm |
| F - Under roller diameter | 31,5 mm |
| d1 - IR flange outer diameter | 34,5 mm |
| rs - Min fillet radius | 1 mm |
| r1s - Min fillet radius | 0,6 mm |
| Radial clearance class | CN |
| Mass | 0,135 kg |
| PRODUCT PERFORMANCE | |
|---|---|
| C - Dynamic load | 29,3 kN |
| C0 - Static load | 27,7 kN |
| Cu - Fatigue limit load | 3,4 kN |
| Nlim - Oil lubrication limit speed | 15000 tr/min |
| Nlim - Grease lubrication limit speed | 13000 tr/min |
| Tmin - Min operating temperature | -20 °C |
| Tmax - Max operating temperature | 120 °C |

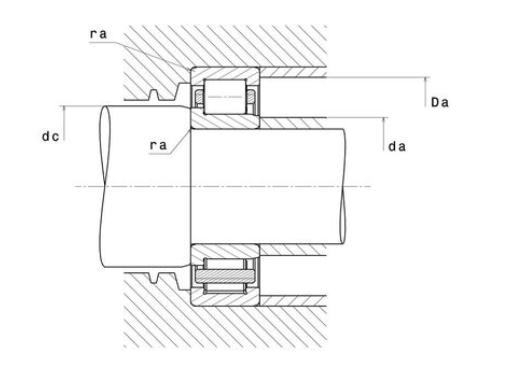

| ABUTMENT | |
|---|---|
| da min - Min shoulder diameter IR | 30 mm |
| da max - Small face shoulder max diameter | 31 mm |
| dc min - Min inner ring GO diameter | 37 mm |
| Da max - Max shoulder diameter OR | 47 mm |
| ra max - Max fillet radius | 1 mm |
-
