NK28-20 Needle roller bearing NK28/20 28x37x20mm Needle roller bearings NK, light series
Price:
Factory price
MOQ:
1PCS
Delivery Time:
Negotiable
Brand:
ZH
Product Description

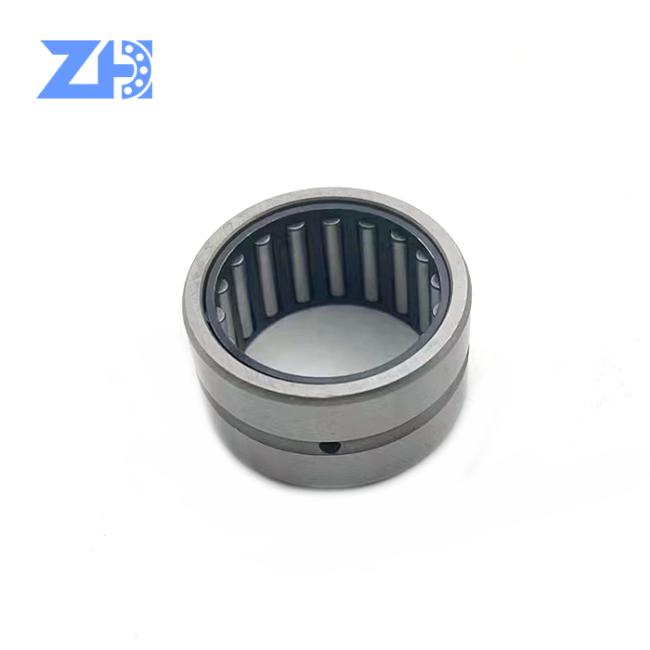

NK28-20 Needle roller bearing NK28/20 , 28x37x20mm.Needle roller bearings NK, light series
Specifications
- Availability 1000PCS
- BrandINA
- Item NumberNK28/20-XL INA
- Also known as0507541220000
NB283720
NK28/20
RNA283720
TAF283720 - CategoryNeedle Roller and Cage Assembly
Weight and Dimensions
- Inner (d) MM28
- Outer (D) MM37
- Width (B) MM20
- Inner (d) Inch1.1024
- Outer (D) Inch1.4567
- Width (B) Inch0.7874
- Weight (kg)0.052
Product Properties
- SealNo Seal
Data from Schaeffler (medias)
- Radial Static Load Rating C0r (N)34000
- Radial Dynamic Load Rating Cr (N)24800
- ECLASS number23-05-09-07
- ECLASS2 number23-05-09-07
- Medias descriptionNeedle roller bearings NK, light series
| NEEDLE ROLLER BEARING LIST FOR EXCAVATOR | ||||
| 15*21*21 | 30*42*25 | 35*51*30 | 40*55*27.5 | 47*65*55 |
| 18*24*20 | 30*42*26 | 35*51*32 | 40*55*30 | 47.5*67.5*25 |
| 20*26*13 | 30*42*30 | 35*51*45 | 40*56*21 | 47*67*27.5 |
| 22*29*16 | 30*42*36 | 36*42*15.5 | 40*56*25 | 47*67*54 |
| 22*30*14 | 30.5*42.5*42.5 | 36*42*25 | 40*56*27 | 47*67*65 |
| 22*30*15 | 31*44*43 | 36*48*22.5 | 40*57*31.5 | 50*58*25 |
| 22*30*30 | 31*46*21.5 | 36*48*25 | 40*58*30 | 50*58*30 |
| 25*29*13 | 32*38*17 | 36*48*29 | 40*58*31.5 | 50*65*32 |
| 25*30*14 | 32*38*20 | 36*48*36 | 40*58*40 | 50*70*28 |
| 25*30*20 | 32*39*16 | 36*51*27.5 | 40*60*22.5 | 50*70*32 |
| 25*31*17.5 | 32*39*20 | 36*52*30 | 40*60*30 | 50*70*36 |
| 25*32*16 | 32*40*25.5 | 36*52*36 | 40*60*32 | 50*70*43 |
| 25*33*14 | 32*40*27.5 | 37*45*20 | 40*60*40 | 50.8*64.8*44.5 |
| 25*33*16 | 32*40*29 | 37*55*36 | 40*60*45 | 51*65*25 |
| 25.4*33.35*16 | 32*40*30 | 35*47*25 | 40*60*62 | 51*65*60 |
| 25.4*33.35*25.5 | 32*40*51.5 | 38*46*20 | 40*62*40 | 51*71*60 |
| 25*33*30 | 32*42*15 | 38*47.5*31.5 | 41*49*17 | 51*71*70 |
| 25*34.5*12 | 32*42*20.5 | 38*48*25 | 41*53*16 | 52*68*30 |
| 25*35*15 | 32*42*41 | 38*54*35 | 42*50*30 | 52*72*32 |
| 25*35*16 | 35*45*22.5 | 38*58*33 | 42*54*18 | 53*73*21 |
| 25*35*30 | 32*45*51 | 39*55*19.5 | 42*55*22 | 53*73*27.5 |
| 25.5*35.5*30 | 32*46*18 | 39*55*20.5 | 42*58*25 | 53*73*30 |
| 28*38*17 | 32*46*32 | 39*55*22.5 | 43*63*30 | 53*73*40 |
| 28*40*25 | 34*42*19.8 | 39*55*25 | 43*63*54 | 53*73*50 |
| 28*42*50 | 34*42*20 | 40*45*17 | 45*53*24.5 | 53*73*55 |
| 29*37*34 | 34*46*16 | 40*45*21 | 45*53*28 | 55*65*32 |
| 29*38*25.5 | 34*46*19.5 | 40*45*27 | 45*53*31 | 55*67*27 |
| 28.5*38.2*32 | 34.5*46.5*23 | 40*48*20 | 45*55*24 | 55*69*25 |
| 29*41*15.6 | 35*41*13.5 | 40*48*25 | 45*57*25 | 59*71*32 |
| 29*43*43 | 35*42*16 | 40*48*27 | 45*57*50 | 60*70*28 |
| 30*35*17 | 35*42*20 | 40*48*30 | 45*60*25 | 60*76*27.5 |
| 30*36*13 | 35*44*36 | 40*48*34 | 45*60*45 | 60*76*55 |
| 30*36*22 | 35*47*20 | 40*48*40 | 45*65*40 | 60*78*30 |
| 30*38*18 | 35*47*30 | 40*50*25.5 | 45*65*43 | 60*82*30 |
| 30*38*24 | 35*49*25 | 40*50*30 | 45*65*55 | 60*84*36 |
| 30*38*30 | 35*49*28 | 40*50*40 | 46*62*30 | 60*86*60 |
| 30*40*20 | 35*49*39 | 40*50*45 | 47*54*32 | 66*76*36 |
| 30*40*30 | 35*49*45 | 40*52*18 | 47*63*30 | 66*86*28 |
| 30*40*32 | 35*50*40 | 40*54*31.7 | 47*65*25 | 70*80*40 |
| 30*42*15 | 35*51*25 | 40*54*51 | 47*65*27.5 | 74*90*50 |
| 30*42*22.4 | 35*51*29 | 40*55*25 | 47*65*50 |
