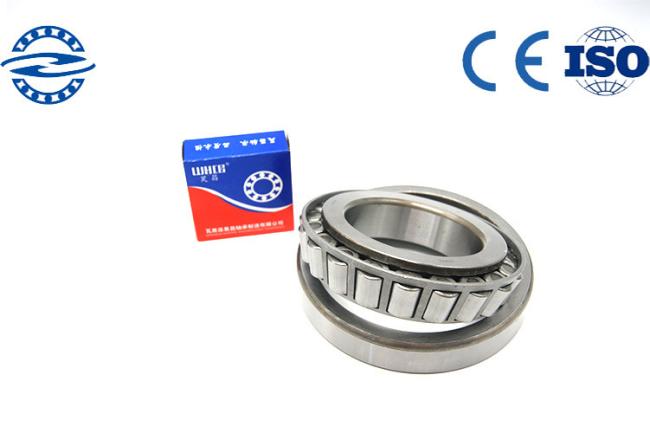

Steel Waterproof Small Size Taper Roller Bearing 32209 Silver Color 45*85*24.5mm
Steel Waterproof Small Size Taper Roller Bearing 32209 Silver Color 45*85*24.5mm
Product Details
Dear my friend, our company has thousands of products, and we cannot display them all at the moment. If you need to leave a message or send an email to us, we will serve you as quickly as possible, thanks! ! !
- All products undergo quality inspection before entering the market;
- All product packaging and MOQ will try our best to meet the actual requirements and needs of customers;
- All kinds of express delivery as you choose, whatever by sea, Fed Express, DHL, TNT, EMS or others.
FQA
Q1. Do you have what other types of bearings?
A: We have deep groove ball bearing , self- aligning ball bearing , cylindrical roller bearing ,spherical roller bearings , angular contact ball bearings , thrust ball bearing , thrust ball bearing , pillow block bearing , joint bearng ,needle bearing. You can choose according to your needs.
Q2. Can I choose the bearing number I need ?
A: Sure , you can choose the model you need. We will design the model you decide.
Q3. Can you adjust the price again ?
A: We can talk to each other.
Q4.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
| Single-Row Tapered Roller Bearings (metric) | |||||||||||
| Bearing No. | Boundary dimensions (mm) | Basic load ratings (KN) | Limiting speeds (rpm) | ||||||||
| d | D | T | B | C | r min | r1 min | Cr(KN) | Cor(KN) | Grease lub. | Oil lub | |
| 30302 | 15 | 42 | 14.25 | 13 | 11 | 1 | 1 | 21.9 | 19.2 | 10000 | 14000 |
| 30202 | 15 | 35 | 11.75 | 11 | 10 | 0.6 | 0.6 | 14.9 | 13.4 | 12000 | 16000 |
| 30203 | 17 | 40 | 13.25 | 16 | 11 | 1 | 1 | 20.8 | 20.7 | 10000 | 14000 |
| 30303 | 17 | 47 | 17.25 | 14 | 12 | 1 | 1 | 27.4 | 24.5 | 9200 | 12000 |
| 32303 | 17 | 47 | 15.25 | 19 | 16 | 1 | 1 | 31.9 | 29.9 | 9400 | 13000 |
| 32004 | 20 | 42 | 15 | 15 | 12 | 0.6 | 0.6 | 27.3 | 31.5 | 9700 | 13000 |
| 30204 | 20 | 47 | 15.25 | 14 | 12 | 1 | 1 | 27 | 27.2 | 8700 | 12000 |
| 32204 | 20 | 47 | 19.25 | 18 | 15 | 1 | 1 | 33.1 | 34.7 | 8900 | 12000 |
| 30304 | 20 | 52 | 16.25 | 15 | 13 | 1.5 | 1.5 | 35 | 33.5 | 7500 | 10000 |
| 32304 | 20 | 52 | 22.25 | 21 | 18 | 1.5 | 1.5 | 45.1 | 46.7 | 8400 | 11000 |
| 320/22 | 22 | 44 | 15 | 15 | 11.5 | 0.6 | 0.6 | 28.3 | 33.6 | 9100 | 12000 |
| 30305 | 25 | 62 | 18.25 | 17 | 15 | 1.5 | 1.5 | 48.2 | 46.9 | 6800 | 9000 |
| 30305D | 25 | 62 | 18.25 | 17 | 13 | 1.5 | 1.5 | 41.5 | 45 | 5700 | 8000 |
| TR0506R | 25 | 62 | 18.25 | 17 | 14 | 1.5 | 1.5 | 45 | 45.8 | 6700 | 9000 |
| 33205 | 25 | 52 | 22 | 22 | 18 | 1 | 1 | 48.9 | 58.5 | 7900 | 1000 |
| 30205 | 25 | 52 | 16.25 | 15 | 13 | 1 | 1 | 31.5 | 33.7 | 7800 | 10000 |
| 32005 | 25 | 47 | 15 | 15 | 11.5 | 0.6 | 0.6 | 30.2 | 37.7 | 8300 | 11000 |
| 33005 | 25 | 47 | 17 | 17 | 14 | 0.6 | 0.6 | 27.5 | 37 | 8000 | 10700 |
Shipping
1. Express
We have two enterprise DHL and TNT in charfe of delivery .
Time : six days
2. Sea transportation
This mode of transportation is relatively slow.
Time : It depends on different countries
3. Air transportation
Fast speed
Time : within six days
