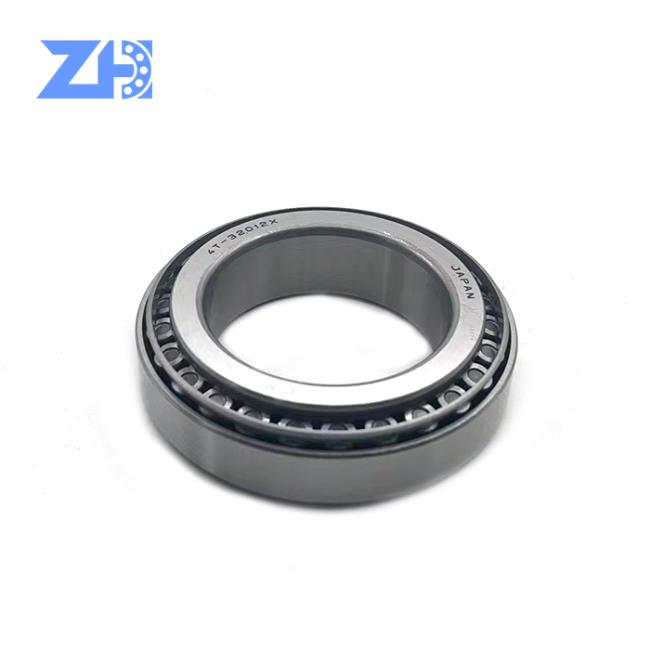

32012 X/QCL7C Tapered Roller Bearing 60x95x23, 32012 X/Q 32012X
32012 X/QCL7C Tapered roller bearing 60x95x23 32012 X/Q 32012X Tapered Roller Bearing 32012
Specifications
- Availability4 pcs
- BrandZH
- Item Number32012-X-XL
- CategoryTapered Roller Bearing Single Row
Weight and Dimensions
- Inner (d) MM60
- Outer (D) MM95
- Width (B) MM23
- Inner (d) Inch2.3622
- Outer (D) Inch3.7402
- Width (B) Inch0.9055
- Weight (kg)0.6
Product Properties
- PrecisionStandard Precision
Data from Schaeffler (medias)
- Radial Static Load Rating C0r (N)124000
- Radial Dynamic Load Rating Cr (N)97000
- ECLASS number23-05-09-10
- ECLASS2 number23-05-09-10
- Medias descriptionTapered roller bearings 320, main dimensions to DIN ISO 355 / DIN 720, separable, adjusted or in pairs
32012 X/Q 32012X Tapered Roller Bearing 32012
Tapered roller bearing is mainly used to bear the joint mainly consisting of radial load and axial load. Compared with the angular contact ball bearing, large carrying capacity, limit rotational speed is low. Tapered roller bearings can withstand axial load in one direction, can limit axial displacement of shaft or housing in one direction.
Tapered roller bearings are widely used in automobiles, rolling mills, mining, metallurgy, plastics machinery and other industries.
Related Series
Related Taper Roller Bearing Catalogue
| New items | Specifications(dxDxB) | Weight/kg |
| 31303 | 17X47X15.5 | 0.13 |
| 31304 | 20X52X16.5 | 0.17 |
| 31305 | 25X62X18.5 | 0.26 |
| 31306 | 30X72X21 | 0.38 |
| 31307 | 35X80X23 | 0.517 |
| 31308 | 40X90X25.5 | 0.66 |
| 31309 | 45X100X27.5 | 0.97 |
| 31310 | 50X110X29.5 | 1.23 |
| 31311 | 55X120X32 | 1.5 |
| 31312 | 60X130X34 | 1.92 |
| 31313 | 65X140X36.5 | 2.29 |
| 31314 | 70X150X38.5 | 2.87 |
| 31315 | 75X160X40 | 3.43 |
| 31316 | 80X170X42.5 | 4.09 |
| 31317 | 85X180X45 | 4.91 |
| 31318 | 90X190X47 | 5.53 |
| 31319 | 95X200X50 | 6.84 |
| 31322 | 110X240X63 | 11 |
| 31324 | 120X260X68 | 15.6 |
| 31326 | 130X280X64.5 | 18.9 |
| 31328 | 140X300X77.5 | 17.4 |
| 32012 | 160X340X88 | 29.9 |
| 30306X2B | 30X72X24.5 | 0.472 |
| 30309X2B | 45X100X32 | 1.04 |
We could supply the following spare parts:
|
Model no
|
d(mm)
|
D(mm)
|
T(mm)
|
W(KG)
|
|
HR32004XJ
|
20
|
42
|
15
|
0.097
|
|
HR32005XJ
|
25
|
47
|
15
|
0.11
|
|
HR32006XJ
|
30
|
55
|
17
|
0.17
|
|
HR32007XJ
|
35
|
62
|
18
|
0.22
|
|
HR32008XJ
|
40
|
68
|
19
|
0.27
|
|
HR32009XJ
|
45
|
75
|
20
|
0.34
|
|
HR32010XJ
|
50
|
80
|
20
|
0.37
|
|
HR32011XJ
|
55
|
90
|
23
|
0.55
|
|
HR32012XJ
|
60
|
95
|
23
|
0.59
|
|
HR32013XJ
|
65
|
100
|
23
|
0.63
|
|
HR32014XJ
|
70
|
110
|
25
|
0.84
|
|
HR32015XJ
|
75
|
115
|
25
|
0.90
|
|
HR32016XJ
|
80
|
125
|
29
|
1.30
|
|
HR32017XJ
|
85
|
130
|
29
|
1.35
|
|
HR32018XJ
|
90
|
140
|
32
|
1.75
|
|
HR32019XJ
|
95
|
145
|
32
|
1.80
|
|
HR32020XJ
|
100
|
150
|
32
|
1.90
|
|
HR32021XJ
|
105
|
160
|
35
|
2.40
|
|
HR32022XJ
|
110
|
170
|
38
|
3.05
|
|
HR32024XJ
|
120
|
180
|
38
|
3.25
|
|
HR32026XJ
|
130
|
200
|
45
|
4.95
|
|
HR32028XJ
|
140
|
210
|
45
|
5.25
|
|
HR32030XJ
|
150
|
225
|
48
|
6.35
|
related taper roller bearings list:
Metric single row tapered roller bearing
Inch single row tapered roller bearing
Double row tapered roller bearing
Four row tapered roller bearings
Paired single row tpered roller bearings
1. Less coefficient of friction, High limiting speed, Large size range, Variations of structure.
2. Tapered Roller Bearings are designed such like cup. Cone and rollers have tapered surfaces whose apexes converge at a common point on the bearing axis.
3. Single-row tapered roller bearing is able to carry radial and axial load in one directions simultaneously because an axial component of produced when this type of bearings loaded radically, two bearings are used together facing one another, or two or more bearings are matched and used.
FAQ
Q1: I want to buy your products, how can I pay?
A :You can pay via T/T , L/C , WEST UNION , ESCROW , PAYPAL , ETC. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: If you meet with quality problem, we promise to replace goods or return your funds.
Q3: If we don’t find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month, and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.
Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send 1pc for quality testing if we have the item you need in stock.
