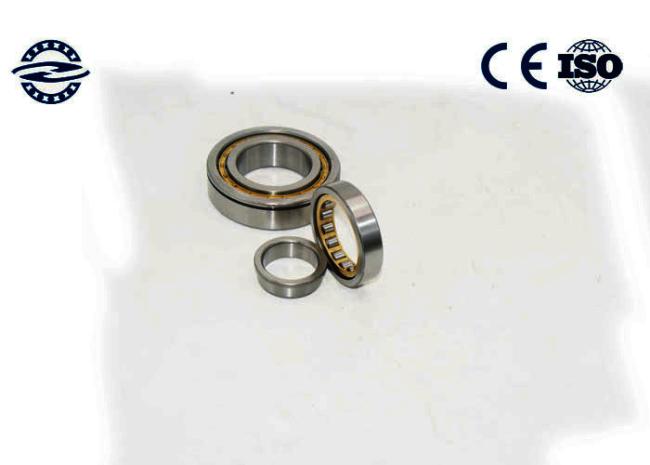

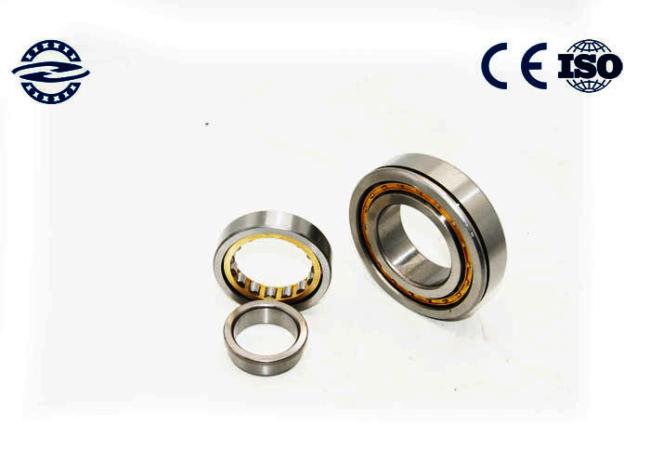

Premium Quality And Low Friction NJ210 Cylindrical Roller Bearing / Flanged Bearing

Characteristics of Cylindrical roller bearing

1. Roller and raceway for line contact or repair of the contact, radial load capacity, suitable for heavy load and impact load.
2. Small coefficient of friction, suitable for high speed, extreme speed close to deep groove ball bearings.
3. The N and nu types can be axially movable to accommodate changes in the relative position of the shaft and housing due to thermal expansion or mounting errors and can be used as free end supports.
4. For the machining of shaft or seat hole, the relative deflection of the outer ring axis should be controlled strictly so as to avoid the contact stress concentration.
5. The inner ring or outer ring can be separated for easy installation and disassembly.

Company advantage

1.We have more than 14 years industry experience

2. We have professional technology support

3. We can accept OEM, customization, customers’ logo

4.Our forwarders will give the low freight for long-term partner

5.We reply to your enquiry within 24 hours

6.We will protect our sale area of distribution

About our company

Type of cylindrical roller bearing

a. single row cylindrical roller bearings, cage, mainly of the NU,NJ,NUP, and N designs.

b. double row cylindrical roller bearings, caged, mainly of the NNU and NN designs.

c. multi-row cylindrical roller bearings, caged.

d. single row full complement cylindrical roller bearings, mainly of the NCF and NJG designs.

e. double row full complement cylindrical roller bearings, mainly of the NNF design.

f. multi-row full complement cylindrical roller bearings, with four rollers.

Series of cylindrical roller bearing

1. Types NU, N, NNU, and NN are suitable as free-end bearings.
2. Types NJ and NF can sustain limited axial loads in one direction.
3. Types NH and NUP can be used as fixed-end bearings.
4. NH-type cylindrical roller bearings consist of the NJ-type cylindrical roller bearings and HJ-type L-shaped thrust collars.
5. The inner ring loose rib of an NUPtype cylindrical roller bearing should be mounted so that the marked side is on the outside.
6. The RNU cylindrical roller bearing has an outer ring with double capped edges but does not come with inner ring. Such bearing is the NU cylindrical roller bearings without the inner ring
7. The RN cylindrical roller bearing has an inner ring with double capped edge but does not come with outer ring

Data about cylindrical roller bearing

. Outer Diameter: 90mm

. Inner Diameter: 50mm

. Weight: 0.587kg

. Width: 20mm

. New Model: NJ210

. Old Model: 42210
