Oil Lubriexcavatorion 22319 Spherical Roller Thrust Bearing Size 95*200*67 mm
22319 Spherical Roller Thrust Bearing,high quality China hot sale
| Brand | Z&H | ||||||
| Name | Spherical roller bearing | ||||||
| Model | 21300,22200,22300,23000,23100,23200,23900,24000,24100,29000 | ||||||
| CC,E,W33,CCW33,EW33,EK,CCKW33,CCK,CA,MB,EAE4 | |||||||
| Material | GCr15 | Certifiexcavatore | ISO9001:2008 | ||||
| Precision | P0, P6, P5 | ||||||
| Bore Size: | 95mm | Outside diameter | 200mm | ||||
| Clearance | C0,C1,C2,C3,C4,C5 etc. | ||||||
| Cage Type | Brass cage or Stainless cage | ||||||
| Seals Type | RS, 2RS, R2, Z, 2Z, 2RZ etc | ||||||
| Features | Spherical Roller bearings are designed to carry heavy loads, even under misalignment or shaft deflection. Spherical Roller bearings can also handle axial loading in either direction and heavy shock loads. Available with a cylindrical or a tapered bore for mounting with or without a sleeve adapter. Available with many internal clearance (C2 to C4) and retainer options. Available bore dimension range is 20mm to 900mm. | ||||||
| Appliexcavatorion | It is used widely for the appliexcavatorion of rotary welding machinery, medium and small series crane and excavators etc. | ||||||
| Package | pallet, wooden case,industrial package or as customers' requirement | ||||||
| Price | FOB, CRF, CIF | Delivery Time | 7-15 days | ||||
| Payment Terms | A.100% irrevocable L/C at sight | ||||||
| B.30% T/T in advance, 70% L/C or T/T | |||||||
| C. Documents against Payment | |||||||
| D. Others | |||||||
Other size
| 22300series | ||
| Bearing Number | Dimension (mm ) | Weight (kg) |
| 22306 | 30X72X19 | 0.37 |
| 22307 | 35X80X31 | 0.75 |
| 22308 | 40X90X33 | 1.03 |
| 22309 | 45X90X33 | 1.4 |
| 22310 | 50X110X40 | 1.85 |
| 22311 | 55X120X43 | 2.42 |
| 22312 | 60X130X46 | 3 |
| 22313 | 65X140X48 | 3.65 |
| 22314 | 70X150X51 | 4.4 |
| 22315 | 75X160X55 | 5.47 |
| 22316 | 80X170X58 | 6.63 |
| 22317 | 85X180X60 | 7.07 |
| 22318 | 90X190X64 | 8.76 |
| 22319 | 95X200X67 | 9.93 |
| 22320 | 100X215X73 | 13.7 |
| 22322 | 110X240X80 | 17.7 |
| 22324 | 120X260X86 | 22.9 |
| 22326 | 130X280X93 | 28.5 |
| 22328 | 140X300X102 | 35.5 |
| 22330 | 150X320X108 | 42 |
| 22332 | 160X340X114 | 52.2 |
| 22334 | 170X360X120 | 60.7 |
| 22336 | 180X380X126 | 72.6 |
| 22338 | 190X400X132 | 84.2 |
| 22340 | 200X420X138 | 94.4 |
| 22344 | 220X460X145 | 119 |
FAQ
1. How long can the inquiry be answered?
If we got you inquiry list will feedback within 2-6 hours. Urgent will be faster.
2. How about your quality of bearings?
Strictly follow ISO9001 standard for production.
3. What is the MOQ of your products?
Usually >1,depends on the model.
4. How about the Delivery time?
About 3・ 15days. (According to the quantity.)
5. How do you check the quality before delivery?
Our company has a professional quality inspect!on department,
which strictly controls the quality of products.
6. if there is a problem with the products we receive, how can you solve it?
If have any questions, please contact us in time.
We will deal with them immediately.
7. How long will our question be answered?
We will respond within 1 hour and solve it within 24 hours.

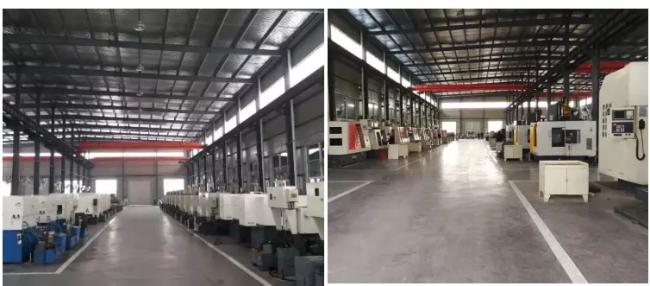

the factory
Payment terms
1.you need to pay in advance
2.You can use west union
3.L/C at sight
4.30% T/T in advance . 70% against copy of B/L
Other product
Cylindrical roller bearing
Thrust ball bearing
thrust roller bearing
Tapered roller bearing
Deep groove ball bearing
