Spherical Roller Bearing Can be used for motor generator bearings 22328CCJA 22328 22328W 22328ZW 140*330*102mm
22328CCJA 22328 22328W 22328ZW 22328CA 22328RS 22328CB 22328CC 22328ECA P0 P6 P5 P3 P4 P2 Quality LEVEL CHROME STEEL Spherical Roller Bearing
Product introduction
22328CCJA Spherical roller bearings are dedicated to extremely severe applications and must support high loads, severe misalignment, contaminated environments, shocks, and vibrations. (Factory price, low price to get goods)
sphericals feature the industry’s highest load rating: a full 18% higher than a standard spherical roller bearing.
This level of quality means at least a 75% extension of service life.Dimensional stability is ensured by a specific heat treatment. A +/- 0.5° misalignment capability,
without reducing the load capacity, and up to 1° 30’ in case of low loads.

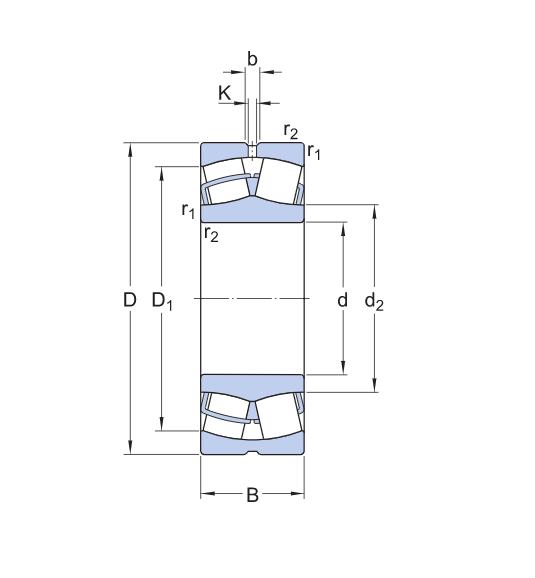

Dimensions
| d |
40 mm
|
Bore diameter |
|---|---|---|
| D |
90 mm
|
Outside diameter |
| B |
33 mm
|
Width |
| d2 |
≈49.9 mm
|
Shoulder diameter of inner ring |
| D1 |
≈74.3 mm
|
Shoulder/recess diameter of outer ring |
| b |
6 mm
|
Width of lubrication groove |
| K |
3 mm
|
Diameter of lubrication hole |
| r1,2 |
min.1.5 mm
|
Chamfer dimension |

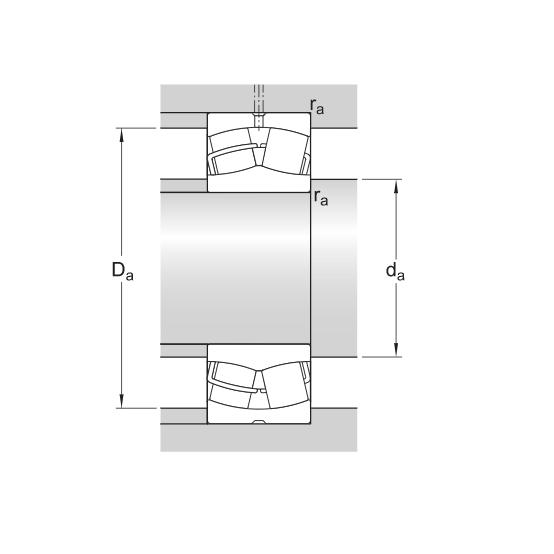

Abutment dimensions
| da |
min.49 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.81 mm
|
Diameter of housing abutment |
| ra |
max.1.5 mm
|
Radius of fillet |
Calculation data
| Basic dynamic load rating | C |
155 kN
|
|---|---|---|
| Basic static load rating | C0 |
140 kN
|
| Fatigue load limit | Pu |
15 kN
|
| Reference speed |
6 000 r/min
|
|
| Limiting speed |
8 000 r/min
|
|
| Limiting value | e |
0.37
|
| Calculation factor | Y1 |
1.8
|
| Calculation factor | Y2 |
2.7
|
| Calculation factor | Y0 |
1.8
|
-
Most of the customer's choices
A8V0107 HPV95 A10FD28 A8V115 SG20 K3V112DT HPV35 AP2D36 HPV091DS K3SP36C HPV95N A10VD43 A8V0107 SG23 K3V112DP HPV75 M2X146 HPV091ES HPV116 HPV160 k5v200 A8V0140 M2X120 M5X130 K3V112BDP HPV95 PVK-2B-505 HPV091/102 HPV145 HPV132 AP12 A8V0160 M2X150 K3V140DT K3V180 AP2D36 HPV0102 HPV116/145 HPV140 AP2D25 A8V0200 M5X180 K3V180DT k3v140 SDV36 HPV0118 NV111 HPV165 AP2D18 A10VO28 M2X63 K5V140DTP HPV102 A8V160 AP12 K5V80 K7V63 K5V200DTH HPV132 PVB92 VRD63 K5V160DTP HPV118 SG025 NVK45 SBS120 K5V200DPH HPV140 PSVD2-27 SPK10/10 K5V160DP HPV145 SBS140

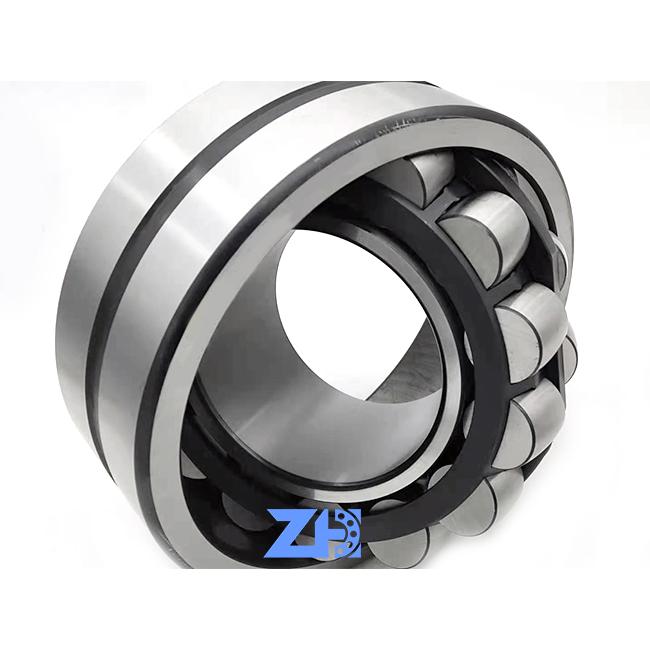

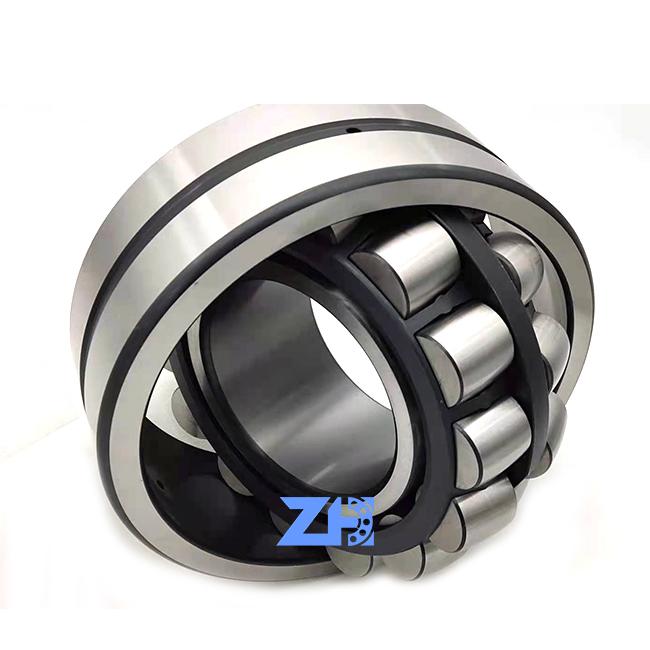

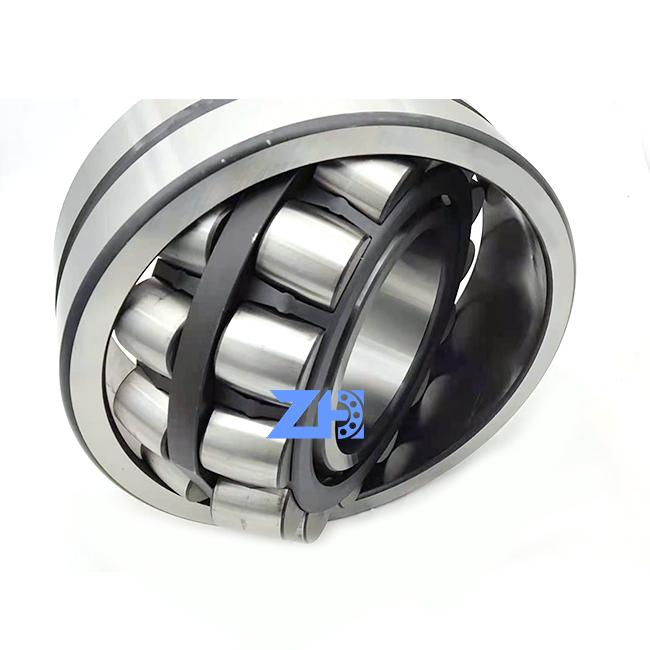

Picture show
