Professional production KRV22-PP-XA 22*10*36.2mm automobile bearing Spherical Roller Bearing

KRV22-PP-XA KRV22-PP-XARS KRV22-PP-XAJ2Q P0 P6 P5 P3 P4 P2 Quality LEVEL CHROME Spherical Roller Bearings

Production introduction
NATR Or NATV Design Support Roller With A Polyamide 66 Axial Sliding And Sealing Ring On Both Sides. Improved Crowned Profile Of The Outer Ring Running Surface, KR Design Cam Follower Have The Same Features As NATR Or NATV, Sizes 16 And 19 Have One Slot In The Head Of The Stud As Standard. Sizes ≥ 22 Have A Recessed Hexagon On Both Ends, Features Except For The Outer Ring Running Surface, Which Has A Cylindrical Profile

Cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with a threaded solid stud instead of an inner ring. They have a thick-walled outer ring with a cylindrical running surface and are supplied sealed and ready-to-mount. The bearings can be relubricated via the stud.

• High radial load carrying capacity
• Accommodate axial loads due to skew or tilting
• Long service life
• Easy to mount
• Sealed for increased reliability, with relubrication feature

  NATR Or NATV Design Support Roller With A Polyamide 66 Axial Sliding And Sealing Ring On Both Sides. Improved Crowned Profile Of The Outer Ring Running Surface, KR Design Cam Follower Have The Same Features As NATR Or NATV, Sizes 16 And 19 Have One Slot In The Head Of The Stud As Standard. Sizes ≥ 22 Have A Recessed Hexagon On Both Ends, Features Except For The Outer Ring Running Surface, Which Has A Cylindrical Profile

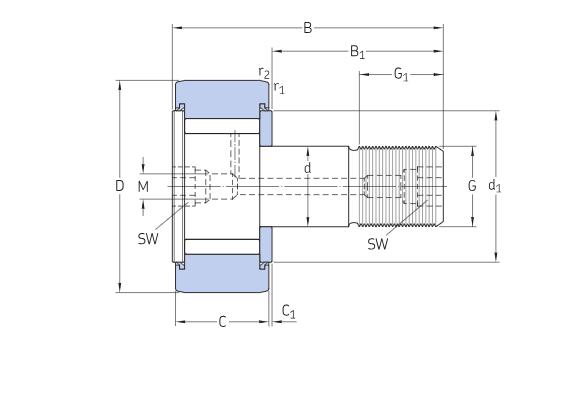

  Dimensions

  D	22 mm	Outside diameter
  d	10 mm	Attachment diameter
  B	36.2 mm	Total length
  C	12 mm	Width outer ring
  B1	23 mm	Length shank on stud
  C1	0.6 mm	Distance face outer ring to face side washer
  d1	17.1 mm	Outside diameter flange ring
  G	M10x1	Thread stud
  G1	12 mm	Length thread
  M	3 mm	Seat diameter for lubrication accessories
  SW	5 mm	Width across flats
  r1,2	min.0.3 mm	Chamfer dimension

  Calculation data

  Basic dynamic load rating	C	5.61 kN
  Basic static load rating	C0	9.5 kN
  Fatigue load limit	Pu	1.06 kN
  Maximum dynamic radial loads	Fr	max.5.5 kN
  Maximum static radial loads	F0r	max.7.8 kN
  Limiting speed		3 600 r/min



  Properties

  Rolling elements	Needle rollers
  Number of rows	1
  Outer ring profile	Cylindrical
  Stud alignment	Centric
  Number of flanges, outer ring	2
  Feature for tightening	Hexagonal recess
  Cage	Without
  Radial internal clearance	Between C2 and CN
  Tolerance class	Other
  Material, bearing	Bearing steel
  Coating	Without
  Sealing	Seal on both sides
  Sealing type	Contact
  Lubricant	Grease
  Relubrication feature	Centre of each stud end

  Recommended content
•
•

  KMF125-PC200-8	NUP206E	NUP309=180	NUP2212=220	6305	NUP308	NUP308=140	30314D=250
  KMF160-PC360-7	15578	NUP309	NUP206=100	NUP2211=250	30309D=110	T7FC055=300	NUP309
  MSG-27P	NUP2206	NUP206	NUP2208=210	NUP207	NUP207/NUP306	NUP309	T7FC055
  AP5S53	NUP2207	6305M	NUP307=110	NUP307	30309D	30312D	T7FC055
  M5X130	NUP2207	4T-30307	30312	NUP307	30312D	30314D	32207
  M5X180	NUP207=120	NUP306	30312D	NUP2208	NUP2209	30312D
  32205	NUP2209=160	NUP307	30312D	NUP2211	NUP2209	6008
  T7FC060	NUP2207=140	HMK3525+IR	NUP310	NUP308	NUP2209	NUP307
  NUP207	NUP2206=130	30309D	NUP308	NUP309	NUP2212	30311D
  6213	NUP309=180	30210	NUP306	NUP309	NUP2212	T7FC055
  NUP308	NUP309=180	30210	NUP307	NUP2212	NUP2211	NIP2310
  NUP309	NUP310	30311D	NUP205E	30312D=155	30312D=155	NUP208E
  JMF29	SG08	SG04	GM35VA	M2X96	M2X120	NUP308=140
  JMF23	GM17VA	SG025	GM35VL	MCB172	M2X146	T7FC065
  JMF151	JMV-44/22	SG02	GM38VB	HMT36FA	M2X150	NUP207
  JMF195	JMV-53/31	SG15	MAG150	HMGC32	M2X170	HMS072
  JMF250	MAG85	SG20	TM09	HMGF35	M2X210	AP5S67
  M2X55	MAG120	KMF41-PC60-7	GM18VL	HMGF36	HMGF57	11749/11710
  M2X63	MAG150	KMF90-PC200-6	KMF125-PC200-7	HMGC48	DNB50/60	NUP2310

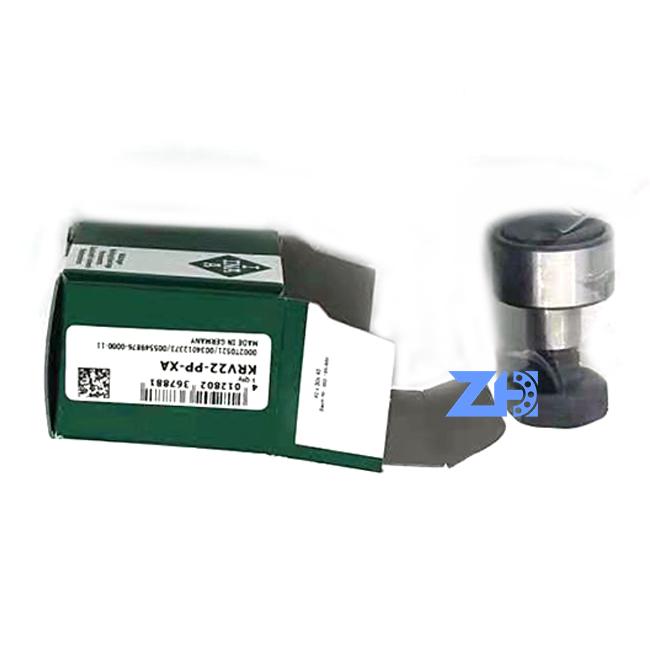

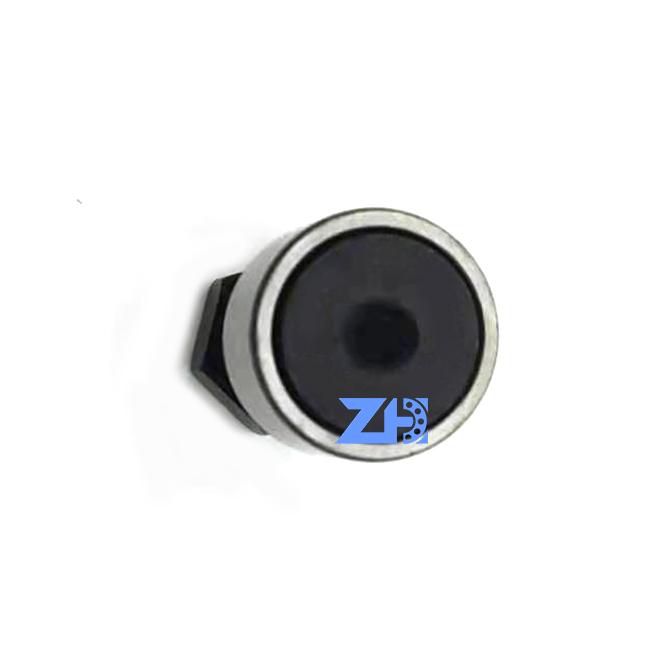

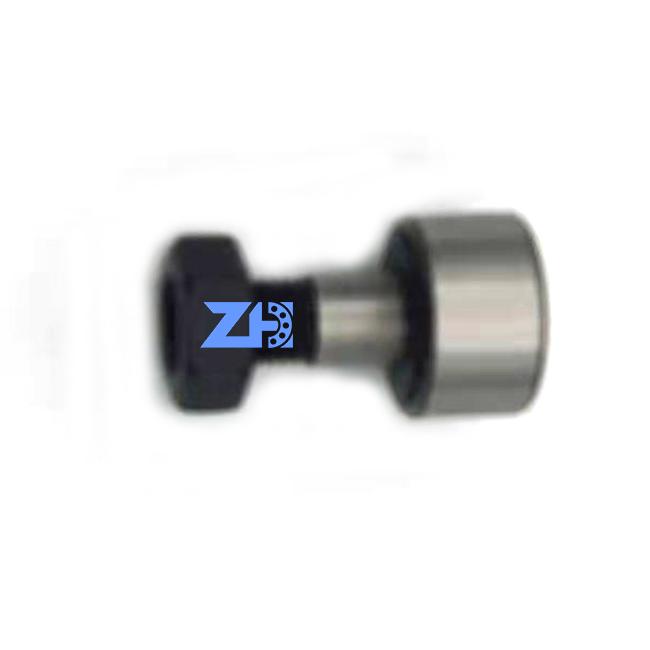

  Picture show
