High quality Spherical Roller Bearing 22230CC 2223ZW 22230CA CHROME STEEL Material Automobile Bearing
22230CC 22230C 22230 P0 P6 P5 P3 P4 P2 Quality LEVEL CHROME STEEL Spherical Roller Bearing
Product introduction
22230CC Spherical roller bearings are dedicated to extremely severe applications and must support high loads, severe misalignment,Appreciably increased operating speed, allowing an extended scope of applications(Factory price, trustworthy)
High temperature capacity of up to 200°C (392°F) for metallic cage bearings. Dimensional stability is ensured by a specific heat treatment. A +/- 0.5° misalignment capability, without reducing the load capacity, and up to 1° 30’ in case of low loads.
Dimensions
| d |
150 mm
|
Bore diameter |
|---|---|---|
| D |
270 mm
|
Outside diameter |
| B |
73 mm
|
Width |
| d2 |
≈178 mm
|
Shoulder diameter of inner ring |
| D1 |
≈234 mm
|
Shoulder/recess diameter of outer ring |
| b |
13.9 mm
|
Width of lubrication groove |
| K |
7.5 mm
|
Diameter of lubrication hole |
| r1,2 |
min.3 mm
|
Chamfer dimension |

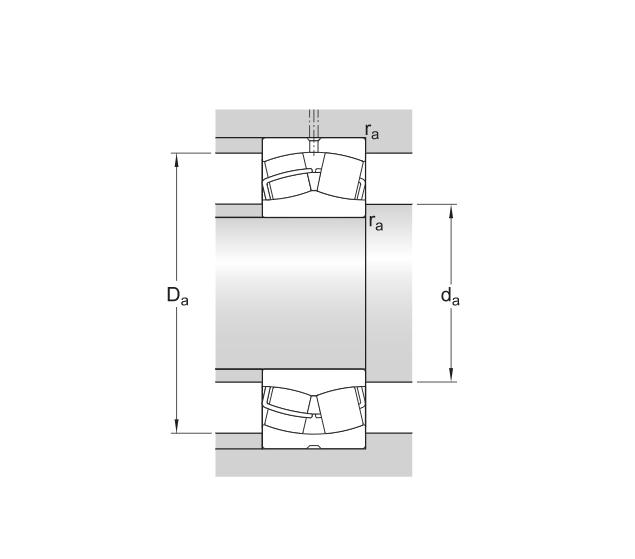

Abutment dimensions
| da |
min.164 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.256 mm
|
Diameter of housing abutment |
| ra |
max.2.5 mm
|
Radius of fillet |
Calculation data
| Basic dynamic load rating | C |
898 kN
|
|---|---|---|
| Basic static load rating | C0 |
1 080 kN
|
| Fatigue load limit | Pu |
102 kN
|
| Reference speed |
2 200 r/min
|
|
| Limiting speed |
3 000 r/min
|
|
| Limiting value | e |
0.26
|
| Calculation factor | Y1 |
2.6
|
| Calculation factor | Y2 |
3.9
|
| Calculation factor | Y0 |
2.5
|
-
Related products, better use
HPV75 A8V107 A8V86 SG04 K3V63BDT K3V112BDT SBS120 HPV050 HPV55 K5V140 A8V080 SG08 K3VL80DTP K3V63DT SBS80 HPV091DW HPV90 A8V55 A8V107 SG12 K5V80DTP K3V63BDT AP2D25 HPV091EW HPV95 A10FD28 A8V115 SG20 K3V112DT HPV35 AP2D36 HPV091DS HPV95N A10VD43 A8V0107 SG23 K3V112DP HPV75 A10VD17 HPV091ES HPV160 k5v200 A8V0140 M2X120 M5X130 K3V112BDP HPV95 A10VD43 HPV091/102 HPV132 AP12 A8V0160 M2X150 K3V140DT K3V180 A10VS063 HPV0102 HPV140 AP2D25 A8V0200 M5X180 K3V180DT k3v140 A10VS071 HPV0118

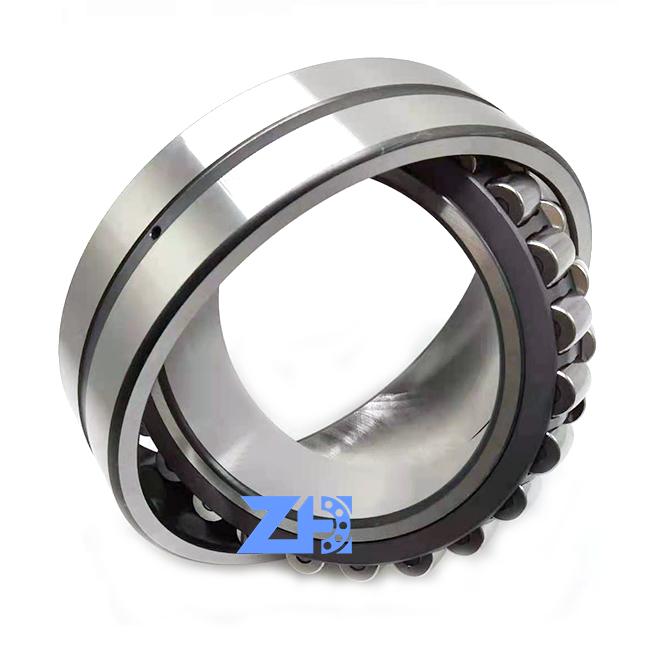

Picture show
![]()
![]()
![]()
