High Quality 6202 6203 6204 6205 6206 6207 6208 2rs C3 Deep Groove Ball Bearing
Price:
Negotiation
MOQ:
1PCS
Delivery Time:
2-7 work days
Brand:
QIEAL ZH
Product Description

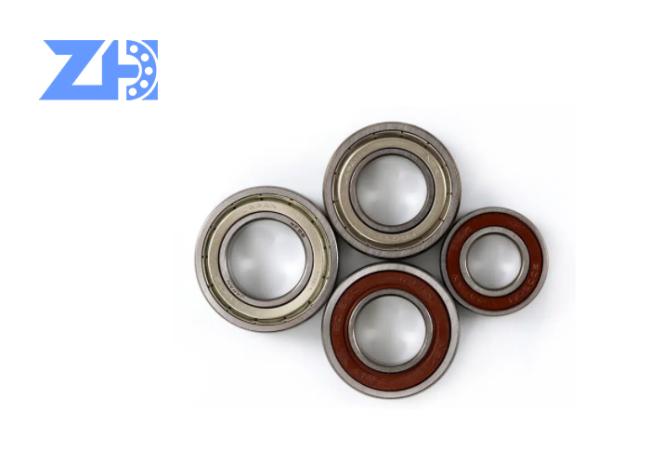

High quality 6202 6203 6204 6205 6206 6207 6208 2rs C3 deep groove ball bearing
| Number | Specifiexcavatorion | Rated Load(KN) | Weight | |||
| D(mm) | D(mm) | W(mm) | Cr(N) | Cor(N) | kg | |
| 6200 | 10 | 30 | 9 | 4.056 | 1.888 | 0.032 |
| 6201 | 12 | 32 | 10 | 5.512 | 2.48 | 0.037 |
| 6202 | 15 | 35 | 11 | 6.24 | 3 | 0.045 |
| 6203 | 17 | 40 | 12 | 7.648 | 3.8 | 0.065 |
| 6204 | 20 | 47 | 14 | 10.16 | 5.24 | 0.11 |
| 6205 | 25 | 52 | 15 | 11.2 | 6.24 | 0.13 |
| 6206 | 30 | 62 | 16 | 15.6 | 8.96 | 0.2 |
| 6207 | 35 | 72 | 17 | 20.4 | 12.24 | 0.29 |
| 6208 | 40 | 80 | 18 | 24.56 | 15.2 | 0.37 |
Our Services
Mainly use to the following field:
Automobile: rear wheel, transmission, electrical components
Electrical: general motors, household appliances
Other: instrument, internal combustion engine, construction machinery, railway rolling stock, loading, unloading and handling machinery, agricultural machinery, all kinds of industrial machinery
Electrical: general motors, household appliances
Other: instrument, internal combustion engine, construction machinery, railway rolling stock, loading, unloading and handling machinery, agricultural machinery, all kinds of industrial machinery
Deep groove ball bearing is the most commonly used rolling bearing.Its structure is simple, it consists of inner and outer rings with deep symmetrical ball race, separator and complement of balls, and it can be easy to operate.It is mainly used for standing the radial load. But when the radial play is increasing, it has the performance of angular contact bearing assembly. In that case, it may simultaneously stand the radial loads and the axial loads.
Bearing rings and balls
deep groove ball bearings are heat stabilized up to at least 120 °C (250 °F).
Cages
Steel, stainless steel, brass or PEEK cages can be used at the same operating temperatures as the bearing rings and balls. For temperature limits of cages made of other polymer materials, refer to Polymer cages.
Seals
The permissible operating temperature for seals depends on the seal material:
- NBR: –40 to +100 °C (–40 to +210 °F)
Temperatures up to 120 °C (250 °F) can be tolerated for brief periods. - FKM: –30 to +200 °C (–20 to +390 °F)
Temperatures up to 230 °C (445 °F) can be tolerated for brief periods.
 |
|
Calculation data
| Basic dynamic load rating | C | 20.3 | kN | |
| Basic static load rating | C0 | 11.2 | kN | |
| Fatigue load limit | Pu | 0.475 | kN | |
| Reference speed | 24000 | r/min | ||
| Limiting speed | 15000 | r/min | ||
| Calculation factor | kr | 0.025 | ||
| Calculation factor | f0 | 14 |
Mass
| Mass bearing | 0.2 | kg |
| Bearing NO. | Principal dimension | Bearing NO. | Principal dimension | ||||
| L.D. | O.D. | Width | I.D. | O.D. | Width | ||
| 6000-Z/2Z/RS/2RS | 10 | 26 | 8 | 6214-Z/2Z/RS/2RS | 70 | 125 | 24 |
| 6001-Z/2Z/RS/2RS | 12 | 28 | 8 | 6215-Z/2Z/RS/2RS | 75 | 130 | 25 |
| 6002-Z/2Z/RS/2RS | 15 | 32 | 9 | 6216-Z/2Z/RS/2RS | 80 | 140 | 26 |
| 6003-Z/2Z/RS/2RS | 17 | 35 | 10 | 6217-Z/2Z/RS/2RS | 85 | 150 | 28 |
| 6004-Z/2Z/RS/2RS | 20 | 42 | 12 | 6218-Z/2Z/RS/2RS | 90 | 160 | 30 |
| 6005-Z/2Z/RS/2RS | 25 | 47 | 12 | 6304-Z/2Z/RS/2RS | 20 | 52 | 15 |
| 6006-Z/2Z/RS/2RS | 30 | 55 | 13 | 6305-Z/2Z/RS/2RS | 25 | 62 | 17 |
| 6007-Z/2Z/RS/2RS | 35 | 62 | 14 | 6306-Z/2Z/RS/2RS | 30 | 72 | 19 |
| 6008-Z/2Z/RS/2RS | 40 | 68 | 15 | 6307-Z/2Z/RS/2RS | 35 | 80 | 21 |
| 6009-Z/2Z/RS/2RS | 45 | 75 | 16 | 6308-Z/2Z/RS/2RS | 40 | 90 | 23 |
| 6010-Z/2Z/RS/2RS | 50 | 80 | 16 | 6309-Z/2Z/RS/2RS | 45 | 100 | 25 |
| 6011-Z/2Z/RS/2RS | 55 | 90 | 18 | 6310-Z/2Z/RS/2RS | 50 | 110 | 27 |
| 6012-Z/2Z/RS/2RS | 60 | 95 | 18 | 6311-Z/2Z/RS/2RS | 55 | 120 | 29 |
| 6013-Z/2Z/RS/2RS | 65 | 100 | 18 | 6312-Z/2Z/RS/2RS | 60 | 130 | 31 |
| 6014-Z/2Z/RS/2RS | 70 | 110 | 20 | 6313-Z/2Z/RS/2RS | 65 | 140 | 33 |
| 6015-Z/2Z/RS/2RS | 75 | 115 | 20 | 6314-Z/2Z/RS/2RS | 70 | 150 | 35 |
| 6016-Z/2Z/RS/2RS | 80 | 125 | 22 | 6315-Z/2Z/RS/2RS | 75 | 160 | 37 |
| 6017-Z/2Z/RS/2RS | 85 | 130 | 22 | 6316-Z/2Z/RS/2RS | 80 | 170 | 39 |
| 6018-Z/2Z/RS/2RS | 90 | 140 | 24 | 6317-Z/2Z/RS/2RS | 85 | 180 | 41 |
| 6019-Z/2Z/RS/2RS | 95 | 145 | 24 | 6404-Z/2Z/RS/2RS | 20 | 72 | 19 |
| 6020-Z/2Z/RS/2RS | 100 | 150 | 24 | 6405-Z/2Z/RS/2RS | 25 | 80 | 21 |
| 6204-Z/2Z/RS/2RS | 20 | 47 | 14 | 6406-Z/2Z/RS/2RS | 30 | 90 | 23 |
| 6205-Z/2Z/RS/2RS | 25 | 52 | 15 | 6407-Z/2Z/RS/2RS | 35 | 100 | 25 |
| 6206-Z/2Z/RS/2RS | 30 | 62 | 16 | 6408-Z/2Z/RS/2RS | 40 | 110 | 27 |
| 6207-Z/2Z/RS/2RS | 35 | 72 | 17 | 6409-Z/2Z/RS/2RS | 45 | 120 | 29 |
| 6208-Z/2Z/RS/2RS | 40 | 80 | 18 | 6410-Z/2Z/RS/2RS | 50 | 130 | 31 |
Packaging & Shipping

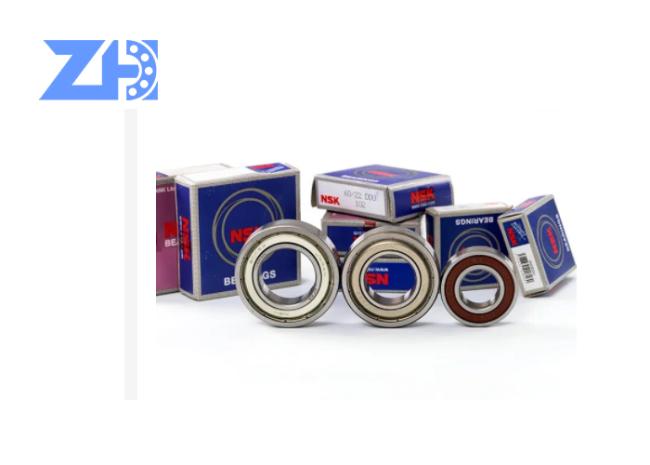

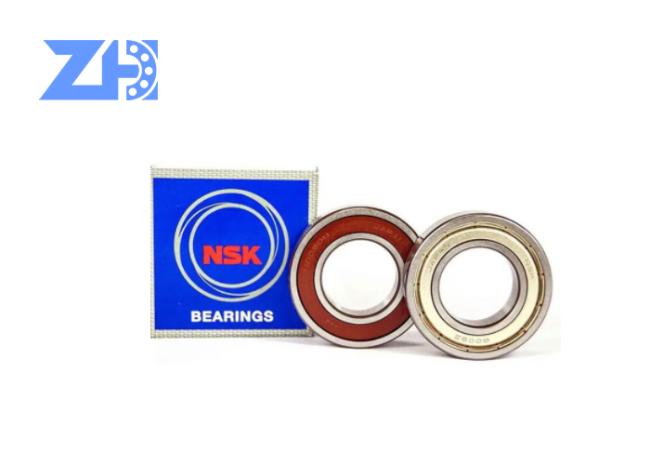

Natural package:
White box,Plastic Tubes,Wooden cartons
Customized Package According to our customer's requirements
Delivery time:3-5 days or according to our customer’s order quantity
