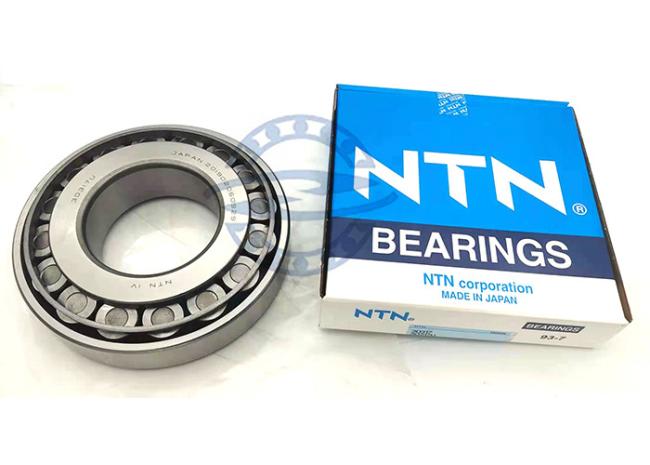

30315 30316 30317 Taper Roller Bearing Size 85*180*41 mm For Automobiles
Price:
Negotiation
MOQ:
1PC
Delivery Time:
2-7 work days
Brand:
ZH / Qireal
Product Description
30315 30316 30317 Taper Roller Bearing Size 85*180*44.5 mm For Automobiles
Details
Taper roller bearings are separable and have the following components: outer ring, inner ring, and roller assembly (containing the rollers and a cage).
The non-separable inner ring and roller assembly is called the cone, and the outer ring is called the cup.
Internal clearance is established during mounting by the axial position of the cone relative to the cup.
Metric tapered roller bearings follow the designation system defined by ISO 355.
| product name | bearing 30317 taper roller bearing |
| size | 85*180*41mm |
| weight | 4.84kg |
| seal type | open |
| precision | P0, P6, P5, P4, P2 |
| number of row | single row |
| material | Gcr15 or Gcr15SiMn |
| appliexcavatorion | Papermaking machinery, speed reducer, railway vehicle axle, gear box bearing, rolling mill rolling mill rolls, crusher, vibrating screen, printing machinery, woodworking machinery, all kinds of industry. |
| delivery time |
1) 1-3 days for samples or in stock
2) 10-15 days for ordering |
Hot sell product
| Designation | d | D | B | Weight(kg) |
| BS2-2205-2CS | 25 | 52 | 23 | 0.26 |
| BS2-2206-2CS | 30 | 62 | 25 | 0.34 |
| BS2-2207-2CS | 35 | 72 | 28 | 0.52 |
| BS2-2208-2CS | 40 | 80 | 28 | 0.57 |
| BS2-2209-2CS | 45 | 85 | 28 | 0.66 |
| BS2-2210-2CS | 50 | 90 | 28 | 0.7 |
| BS2-2211-2CS | 55 | 100 | 31 | 1 |
| BS2-2212-2CS | 60 | 110 | 34 | 1.3 |
| BS2-2213-2CS | 65 | 120 | 38 | 1.6 |
| BS2-2214-2CS | 70 | 125 | 38 | 1.8 |
| BS2-2215-2CS | 75 | 130 | 38 | 2.1 |
| BS2-2216-2CS | 80 | 140 | 40 | 2.4 |
| BS2-2217-2CS | 85 | 150 | 44 | 3 |
| BS2-2218-2CS | 90 | 160 | 48 | 3.7 |
| BS2-2219-2CS | 95 | 170 | 51 | 4.6 |
| BS2-2220-2CS | 100 | 180 | 55 | 5.5 |
| BS2-2222-2CS | 110 | 200 | 63 | 7.6 |
| BS2-2224-2CS | 120 | 215 | 69 | 9.75 |
| BS2-2226-2CS | 130 | 230 | 75 | 11 |
| BS2-2228-2CS | 140 | 250 | 80 | 15.7 |
| BS2-2308-2CS | 40 | 90 | 38 | 1.2 |
| BS2-2309-2CS | 45 | 100 | 42 | 1.6 |
| BS2-2310-2CS | 50 | 110 | 45 | 2.1 |
| BS2-2311-2CS | 55 | 120 | 49 | 2.8 |
| BS2-2312-2CS | 60 | 130 | 53 | 3.4 |
| BS2-2313-2CS | 65 | 140 | 53 | 4.15 |
| BS2-2314-2CS | 70 | 150 | 60 | 5.1 |
| BS2-2315-2CS | 75 | 160 | 64 | 6.5 |
Other product
1.Cylindrical roller bearing
2.Thrust ball bearing
3.Thrust roller bearing
4.Tapered roller bearing
5.Spherical roller bearing
6.Self-aligning ball bearing
7.Angular contact ball bearing
8.Joint bearing
