75*130*25 mm CHROME STEEL Material 6215 6215RS 6215ZZ 6215W Deep Groove Ball Bearing
6215 6215RS 6215ZZ 6215W 6215ZW 6215-2RS 6215E 6215ECK 6215CCA 6215J2Q P0 P6 P5 P3 P4 P2 Quality LEVEL CHROME STEEL Deep Groove Ball Bearing
Product introduction
6215 Deep Groove Ball Bearing is a type of rolling element bearing that is commonly used in a wide range of applications, including machinery, automobiles, appliances, and industrial equipment.(High-end product, cheap price)
It is designed to carry radial loads, which are perpendicular to the axis of rotation, as well as axial loads, which are parallel to the axis of rotation.
The construction of a deep groove ball bearing typically consists of an inner ring, an outer ring, a cage or separator, and rolling elements (usually steel balls) that are arranged in a circular groove on the inner and outer rings.
Dimensions
| d |
75 mm
|
Bore diameter |
|---|---|---|
| D |
130 mm
|
Outside diameter |
| B |
25 mm
|
Width |
| d1 |
≈92.05 mm
|
Shoulder diameter |
| D2 |
≈116.5 mm
|
Recess diameter |
| r1,2 |
min.1.5 mm
|
Chamfer dimension |

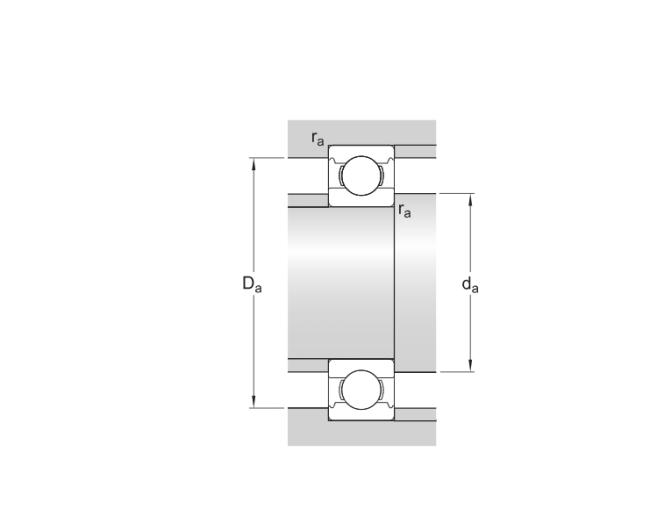

Abutment dimensions
| da |
min.84 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.121 mm
|
Diameter of housing abutment |
| ra |
max.1.5 mm
|
Radius of shaft or housing fillet |
Calculation data
| Basic dynamic load rating | C |
68.9 kN
|
|---|---|---|
| Basic static load rating | C0 |
49 kN
|
| Fatigue load limit | Pu |
2.04 kN
|
| Reference speed |
10 000 r/min
|
|
| Limiting speed |
6 700 r/min
|
|
| Minimum load factor | kr |
0.025
|
| Calculation factor | f0 |
14.7
|
-
Some hot selling products
AP12 K3V63DT K3VL80DTP AP12 HPV132 A8V107 AP2D25 K3V63BDT K5V80DTP SBS140 HPV140 A8V115 AP2D18 HPV35 K3V112DT SBS120 HPV165 A8V0107 AP2D36 HPV75 K3V112DP SBS80 HPK055K A8V0140 SDV36 HPV95 K3V112BDP AP2D25 HPV050 A8V0160 M5X180 K3V180 K3V140DT AP2D36 HPV091DW A8V0200 SG025 k3v140 K3V180DT A10VD17 HPV091EW A10VO28 SG02 HPV102 A8V160 K5V140DTP A10VD43 HPV091DS SG04 HPV118 K5V160DTP A10VS063 HPV091ES SG08 HPV145 K5V160DP A10VS071 HPV091/102

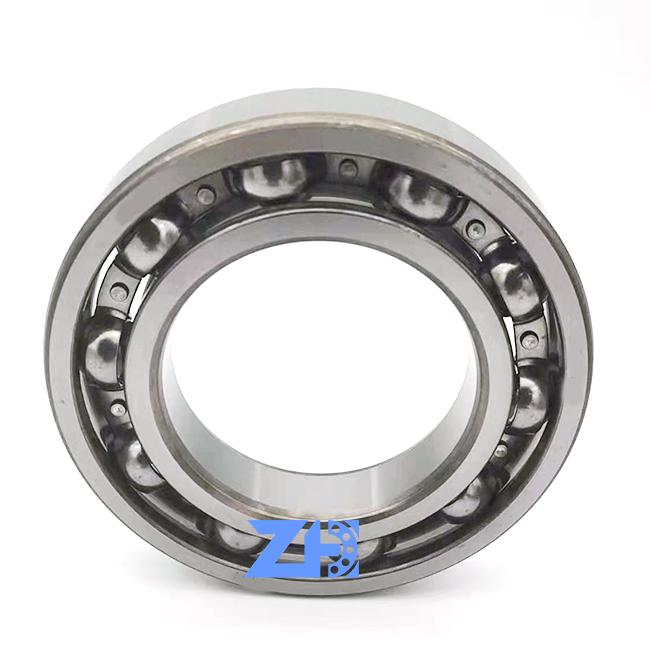

Picture show
|![]()
![]()
![]()
-
![]()
![]()
FAQ
Q1: I want to buy your products, how can I pay?
A :You can pay via T/T , L/C , WEST UNION , ESCROW , PAYPAL , ETC. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: If you meet with quality problem, we promise to replace goods or return your funds.
Q3: If we don’t find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month, and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.
Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send 1pc for quality testing if we have the item you need in stock.
Why choose us?
1. Let’s talk—we have NO barrier in language
2. Request for more item information---there are nearly 2000 products for your option!
3. Write us for quotation---reply you within 24 hours,one quotation could be ready in 2mins for a ready products!
