Insert Bearings LY 310 3L Japan Nsk Ball Bearing For Woodworking Machinery
Price:
Negotiable
MOQ:
1 PCS
Delivery Time:
2-5 work days
Brand:
QIEAL ZH
Product Description

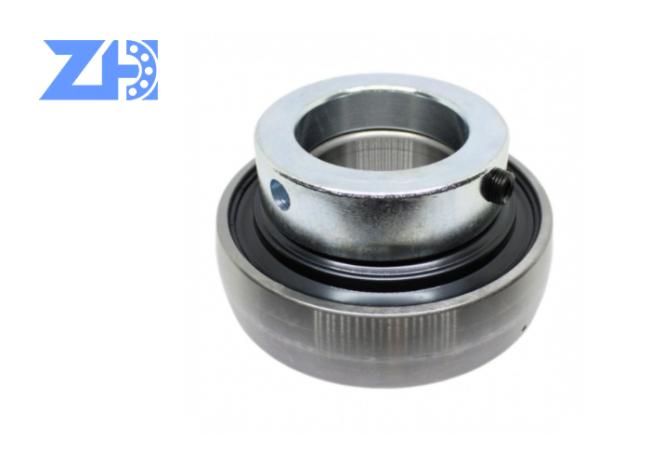

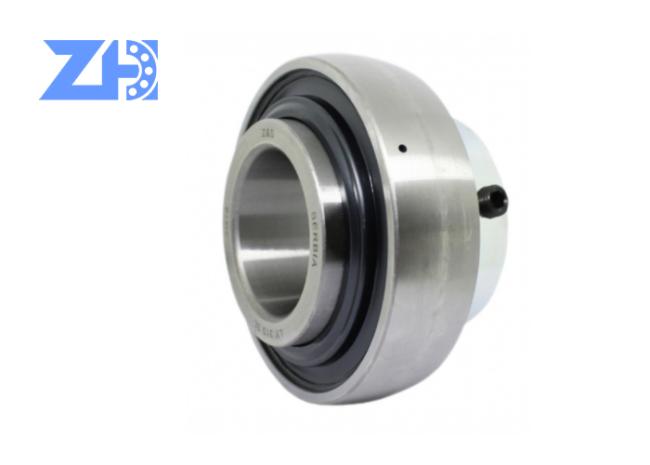

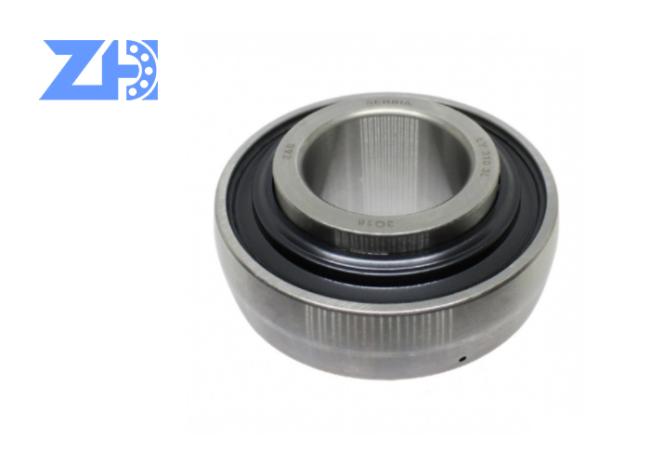

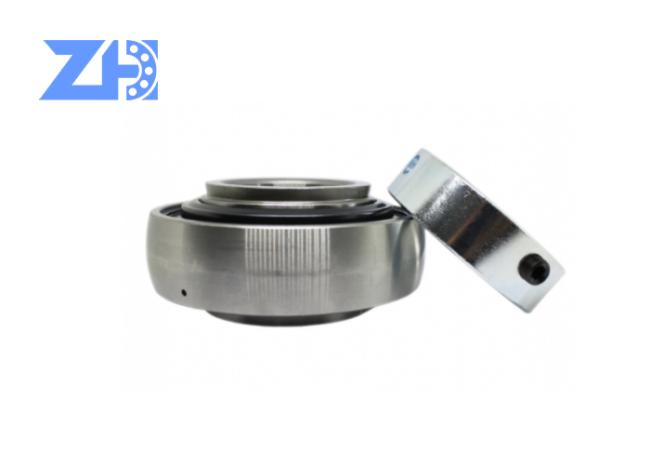

Insert Bearings LY 310 3L Japan Nsk Ball Bearing For Woodworking Machinery
- Weight:
- 1,87 KGS
- Inner diameter [d]:
- 50 mm
- Outer diameter [D]:
- 110 mm
- Inner ring width [B]:
- 66,75 mm
- Outer ring width [C]:
- 29 mm
- Bore type:
- Cylindrical
- Outer ring shape:
- Spherical
- Inner ring:
- With eccentric ring
Plummer block housing units:Cast iron housing, with long base, radial insert ball bearing with grub screws in inner ring, RSR seals.
The castings are made from high-quality cast iron, and finished on all unmachined surfaces with an electrostatic air drying paint.
UCP series pillow block housing bearing size
| Model NO. | Length(mm) | Width(mm) | Thickness(mm) | Weight(kg) |
| UCP201 | 127 | 38 | 60.7 | 0.76 |
| UCP202 | 127 | 38 | 60.7 | 0.74 |
| UCP203 | 127 | 38 | 60.7 | 0.72 |
| UCP204 | 127 | 38 | 64 | 0.7 |
| UCP205 | 140 | 38 | 69.5 | 0.76 |
| UCP206 | 160 | 44 | 82 | 1.25 |
| UCP207 | 167 | 48 | 92 | 1.55 |
| UCP208 | 180 | 52 | 98 | 1.9 |
| UCP209 | 189 | 54 | 106 | 2.2 |
| UCP210 | 204 | 57 | 112 | 2.75 |
| UCP211 | 217 | 60 | 125 | 3.3 |
| UCP212 | 238 | 66 | 137 | 4.7 |
| UCP213 | 262 | 70 | 149 | 5.6 |
| UCP214 | 266 | 72 | 155 | 6.6 |
