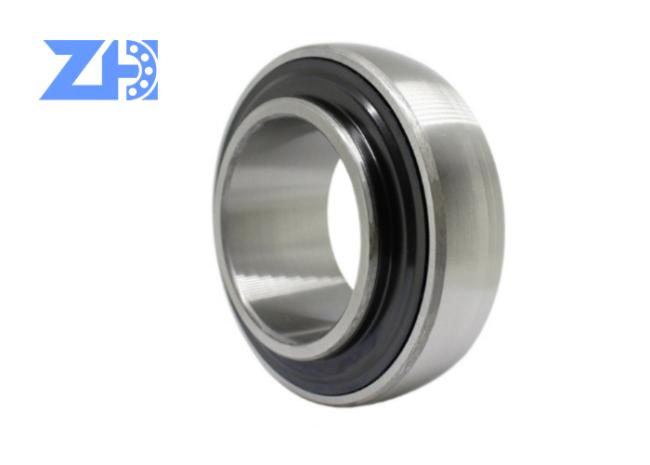

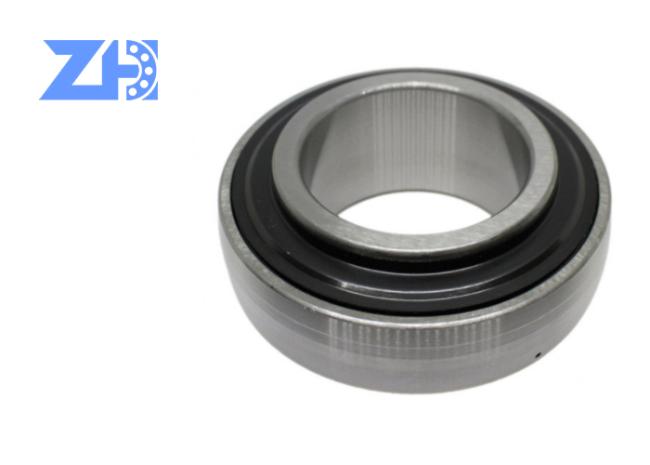

Radial Insert Ball Bearing LK 212 2FSpherical Surface Ball Bearing LK -212 2F
Radial Insert Ball Bearing LK 212 2FSpherical Surface Ball Bearing LK -212 2F
Features
- suitable for mounting in a housing bearing
- suitable for high loads and high speeds
- suitable for changing directions of rotation and high demands on smooth running
- the spherical outer surface of the outer ring can compensate misalignment if it is installed in a corresponding housing
- seal: contact lip seal on both sides made of rubber (2RS) for high sealing effect
- lubriexcavatored for life; under normal operating conditions relubriexcavatorion is not required
- maintenance-free
Spherical outer bearing inserts with a standard inner ring have normal tolerances for the bearing bore diameter and are loexcavatored on the shaft using an appropriate interference fit
They do not have any lubriexcavatorion holes in the outer ring. The only difference between these bearings and deep groove ball bearings in the 62 and 63 series is the sphered outside surface of the outer ring. These spherical outer bearings are suitable for appliexcavatorions where the direction of the load alternates and where smooth running is a key operational parameter. These bearings can accommodate heavier axial loads than housed inserts of any other design. They can also operate at the same speeds as the corresponding sealed deep groove ball bearings.
Other bearing size :
| model code | ID | OD | H | WEIGHT |
| mm | mm | mm | kg | |
| CS201 | 12 | 32 | 10 | 0.036 |
| CS202 | 15 | 35 | 11 | 0.065 |
| CS203 | 17 | 40 | 12 | 0.085 |
| CS204 | 20 | 47 | 14 | 0.102 |
| CS205 | 25 | 52 | 15 | 0.125 |
| CS206 | 30 | 62 | 16 | 0.202 |
| CS207 | 35 | 72 | 17 | 0.285 |
| CS208 | 40 | 80 | 18 | 0.37 |
| CS209 | 45 | 85 | 19 | 0.404 |
| CS210 | 50 | 90 | 20 | 0.598 |
| CS211 | 55 | 100 | 21 | 0.7 |
| CS212 | 60 | 110 | 22 | 0.8 |
- A: barreled package+outer carton+pallets
B: single box+outer carton+pallets
C: tube package+middle box+outer carton+pallets
D: According to your's requirement for Radial Insert Ball Bearing CS202 2RS Spherical Surface Ball Bearing CS202 LLU
- QINGDAO GUANGDONG SHANGHAI
Through the organized quality assurance system, our company strive to accomplish
a. Fullfill it's commitment towards quality products,
b. Efficient delivery time, generally 3-7 days,
c. Provide immediate and efficient response to customers' feedback,
d. Germany imported technology, CNC machines.
e. Provide OEM&Customized service.
Processing flow
1. Factory direct goods, price advantage, short production term
2. Germany imported equipment
3. Strictly quality control, 500000 pcs providing capacity monthly
4. Complete customer service system
5. 10 years manufacturing and 5 years exporting experiences
6. Customers involving all over the world.
7. Accepting small quantity sample order
8. Customer service purposes
9. Self-owned brand - CLUNT
10. Long-term cooperated forwarders make shipping cost lower and fast.
11. Products certifiexcavatorions: ISO 9001, CE, BV
12. 2 years quality guarantee.
