Dust Collector Product Introduction
Central dust collectors are widely used in arc welding, carbon dioxide shielded welding, MAG shielded welding, special welding, gas fusion cutting and other industries such as machinery, casting, metallurgy, building materials, chemical industry, automobile, shipbuilding, equipment manufacturing and other industries to purify the flue gas generated during welding of carbon steel, stainless steel, aluminum and other metals.
Choosing the right and high quality dust collector for your needs is essential. Kaisen is the leading suppliers of the industrial dust extraction systems,we can offer a wide variety of dust collection system solution. And we can offer you effective design and correct filtration technology application with a high performance and low maintenance running costs.
Technical Parameters
| No. | Model | KSDC-8604A/A1 | KSDC-8604B/B1 | KSDC-8606B/B1 | KSDC-8609B/B1 |
| 1 | Fan Air Flow | 6500/8200±300 m3/h | 6000/8000±300 m3/h | 8000/12000±500 m3/h | 8000/12000±500 m3/h |
| 2 | Inlet Air Flow | 4500/6800m3/h | 5000/6500m3/h | 6500/9500m3/h | 6500/9500m3/h |
| 3 | Motor Power | 5.5/7.5kW | 5.5/7.5KW | 7.5/11KW | 7.5/11KW |
| 4 | Power Supply | 3x380V/50Hz | 3x380V/50Hz | 3x380V/50Hz | 3x380V/50Hz |
| 5 | Filter Material | Polyester + PTFE | Polyester + PTFE | Polyester + PTFE | Polyester + PTFE |
| 6 | Filtration Area | 60㎡ | 60㎡ | 90㎡ | 135㎡ |
| 7 | Filtration Efficiency | ≥99.9% | ≥99.9% | ≥99.9% | ≥99.9% |
| 8 | Filtration Precision | ≥0.3um | ≥0.3um | ≥0.3um | ≥0.3um |
| 9 | Filter Cartridge | 4 Pcs | 4 Pcs | 6 Pcs | 9 Pcs |
| 10 | Cleaning Method | Automatic cleaning | Automatic cleaning | Automatic cleaning | Automatic cleaning |
| 11 | Compressed Air | 0.5~0.6Mpa | 0.5~0.6Mpa | 0.5~0.6Mpa | 0.5~0.6Mpa |
| 12 | Noise Level | ≤72±5 dB | ≤72±5 dB | ≤75±5 dB | ≤75±5 dB |
| 13 | Dimension (WxDxH) | 1100×1100×2750mm | 1170×1663×2150mm | 1620×1750×2150mm | 1800×2000×2500mm |
| 14 | Weight | 750±20kg | 770±20kg | 1050/1120±20kg | 1420 /1550±20kg |
Notice: For KSDC-A series fan motor is configured on top of the extractor, it occupies smaller space but height is relatively higher. For KSDC-B series fan motor is configured at the back of the extractor, it occupies larger space, but height is relatively lower.
Workshop Air Cleaner Equipment Features
1. Compact structure, easy management and maintenance, safe operation.
2. Efficient automatic pulse blowback cleaning way, effectively clean the filter cartridge and prolong the service life of the filter cartridge.
3. PLC intelligent control system, clearly shows the situation of different units, and you can touch the screen and adjust the parameters upon your requirements.
4. Main power switch, electronic control components adopt thermal overload protection, phase loss and phase sequence protection, high safety, and can realize functions such as remote control and linkage control.
5. Spark intercept mesh device is installed at the air inlet to avoid direct contact between sparks and the filter cartridge and damage to the filter cartridge.

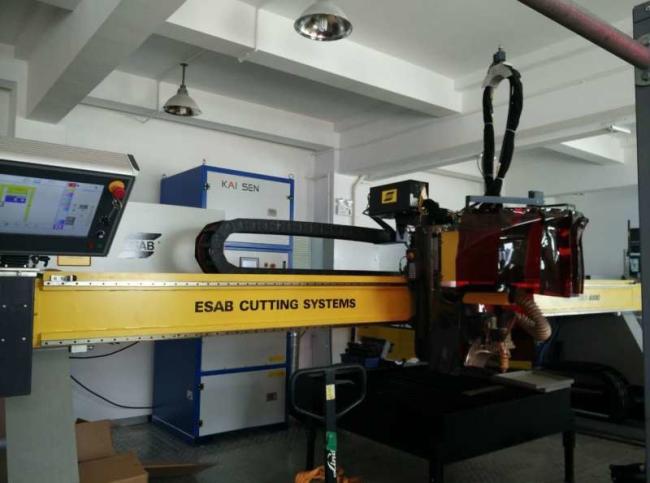

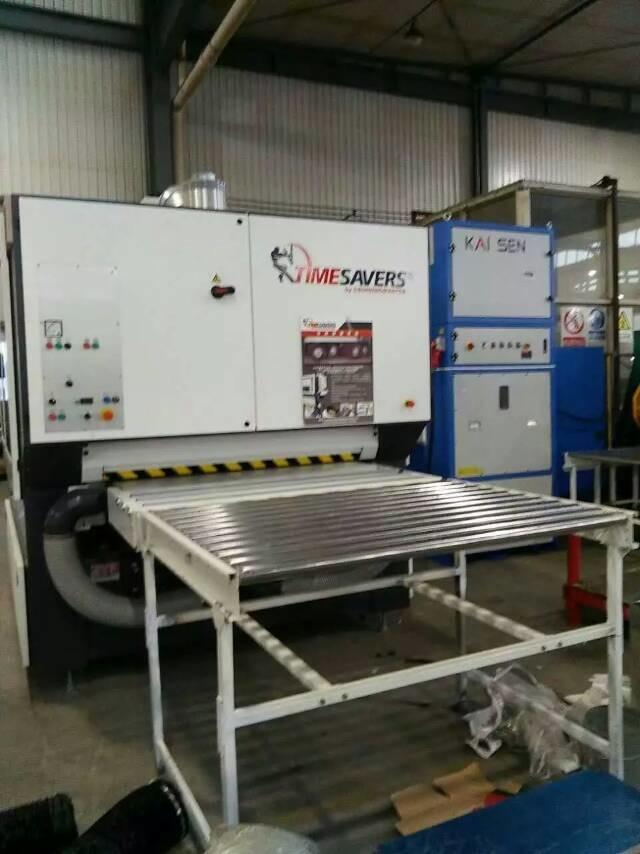

6. This KSDC-8604A series dust collector can be connected with pipe for centralized dust collection, such as for hood suction type dust collection, room type dust collection, etc. It can be used for robotic welding fume smoke extraction, manual welding fume extraction, polishing and grinding dust collection, cutting fume and smoke extraction, etc.
Package & Shipping
Package: Wooden Box without Fumigation
The package will include spare parts box and machine installation tools.
Transportation By Sea or By Air are both Acceptable.
