Industrial Smoke Absorber Product Introduction
Mobile dust collector for extracting general dust, as well as fume and smoke from industrial processes. Mobile dust collector can easily be moved around the workshop. Kaisen's efficient industrial dust collection solutions protect workers and equipment from exposure to hazardous air environments.
It has high filtration efficiency for dust collection and fume filtration for gas shield welding, argon arc welding, MMA and brazing, and other small fume amount working condition.
Standard Parameters
| No. | Model | KSJ-0.7S | KSJ-2.2S |
| 1 | Fan Air Flow | 2000±100m3/h | 3600±100m3/h |
| 2 | Treatment of air flow | 1000 m3/h | 2000 m3/h |
| 3 | Motor Power | 0.75 kW | 2.2kW |
| 4 | Voltage | 1×220 V/50 Hz | 3×380 V/50 Hz |
| 5 | Filtering area | 15m2 | 30m2 |
| 6 | Cleaning Methods | Manual Cleaning | Manual Cleaning |
| 7 | Compressed Air | 0.5~0.6 MPa | 0.5-0.6 Mpa |
| 8 | Filtration efficiency | >99.9% | >99.9% |
| 9 | Filtering Precision | ≥0.3um | ≥0.3um |
| 10 | Numbers of supporting cantilevers | 1 pc φ160mm length 2.0 m | 2 pcs φ160mm length 3.0 m |
| 11 | Noise | ≤74±5dB(A) | ≤74±5dB(A) |
| 12 | Demission | 610×510×990mm | 760×640×1320mm |
| 13 | Weight | 98±5 Kg |
135±5 Kg |
Options
1.1×220V 50Hz, 1×115V 60Hz is avaliable.
2. It can change polyester material filter cartridge.
Working Principle
1. The fume comes from the processing will be sucked into the extractor through the hood, first the fume passes the 1st layer spark intercept steel mesh which will ranmify the fume to avoid residual sparks enter into HEPA filter layer directly.
2. Finally, the fume enters the second layer of HEPA filter cartridge for ultimate purification. Its filtration efficiency can reach 99.9%.
3. As the filtering precision of the main filter cartridge reaches the indoor emission standards, the filtered clean air can be directly discharged indoor through the air vent in the back of the extractor.

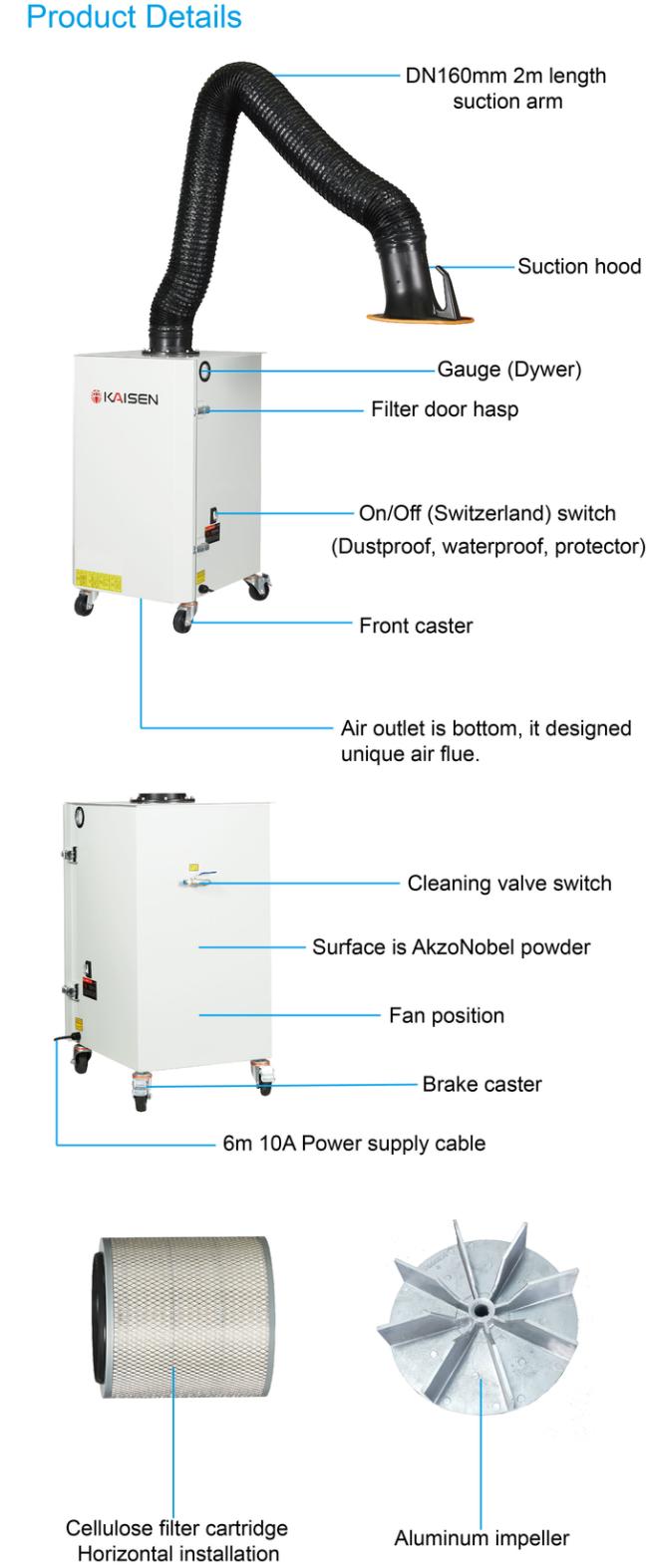

On the control panel, it includes:
-Fan switch
-Pressure difference indicators.
Dust Collector Main features
1. Reasonable structure, compact and practical.
2. Nano flame retardant filter material, large filtration area and high flitration percision.
3. Power phase sequence instructions, short-circuit protection for lack of phase, with shutdown protection measures when too high temperature.
4. Equipped with all-direction caster wheels, movable freely and easy to position.
5. Suction arm can be rotated 360 °, and reach the point of destination and angle of inhale dust and air by pullingthe handle of the hood with the operator’s will flexibly and easily and position by itself in the absence of external force. Depending on needs, 2m, 3m or 4m flexible suction arm are optional.
6. Suction arm uses real temperature-resistant, flame retardant and wear-resistant composite materials, and will not crack after burning through by spark with longer life; the arm diameter is160mm.
