Industrial Dust Removal Equipment with CE Certification Welding Fume Extractor

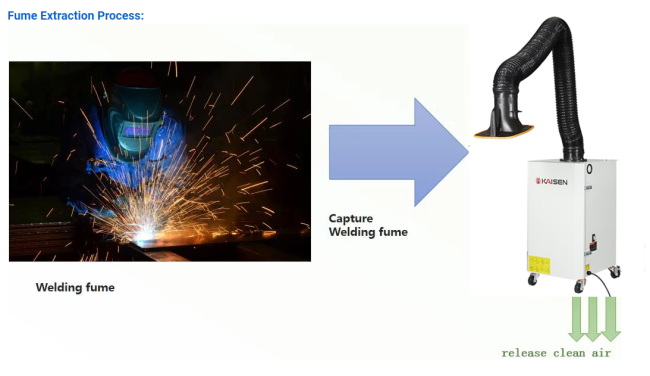

Part 1:The basic Stage Filtration Process about the welding fume extractor

Welding has been widely used in the field of metal processing.
And the welding process produces a lot of smoke and fume.
Welding fume can irritate the eyes and respiratory system, causing coughing, eye irritation and other physiological stimuli.
It is generally believed that particles with aerodynamic force diameter less than 7 microns can enter deep lung and permanently reside in the lung, which may cause chronic lung diseases such as pneumoconiosis.
If there is no fume removal device or the fume removal effect is not good, welding fume will seriously pollute the working environment and endangers the health of workers.

Aiming at the characteristics of small smoke and fume particles, large body size and long suction duct of laser cutting machine, Qingdao Power Space specially developed series products for welding fume extraction. This series of fume extractor is equipped with high efficiency fan, high quality nano flame retardant filter material, spark catcher, etc., and is equipped with high efficiency pulse automatic back blow cleaning system, which can effectively remove the dust blocked on the filter cartridge, make the fume extractor run for a long time and prolong the service life of the filter cartridge. More compact flow path design concept, so that the product fume extracting performance is good, small volume, low noise and high safety performance, which can help metal processing customers to better solve the problem of dust pollution in welding process.

Part 2: Products application
fume extractor is suitable for manual welding and small workpiece welding. It also uses in simple laser welding, engraving and new material processing, ect. It is very flexible using in most working area, especially when the work position is very dispersive.

Part 3: Machine feature
1. Adopts high quality cold-rolled steel plate processing, key structural parts made by laser cutting and one shot punching forming.
2. Reasonable box structure, compact and practical.
3. A diversion device at the inlet to protect the filter from the damage of large particles.
4. Wide front door and the spiral tower buckle design makes check and replace the filter cartridge easily.
5. Filter adopts the high efficiency import PTFE coated polyester fiber, the filtration reach 99.9%.
6. Four casters at the bottom, two of them with active belt brakes, easy to move and fix position.
7.Imported aluminum alloy fan impeller: large air volume, low noise, low energy consumption.
8.Imported motor: European standard production, IM international standard installation.
9.Super-dust drawer: can collect dust for15 to 20 days continuously.
10.Original import suction arm: The unique design of the suction hood captures more efficiently. One more joint design than the conventional suction arm allows the suction arm to reach any direction easily. The internal reinforced skeleton system is an aluminum component, which has been anodized, has superior load bearing and corrosion resistance, and has a longer service life.

Part 4:Parameter

Part 5: Why choose KAISEN?
1.Patent design, CE, ISO9001, ISO14001, and OHSAS18001 certificate approved.
2.Fine details design, like 2-3mm thickness metal, 80mm noise damping cutton...
3.Advanced patent design filter, 0.02-99.9% efficiency, 8000h lifetime. PTFE coated, Import from Japan. easy pass government inspection
4.Famous machine components.
5.2 years warranty on fan and motor, 1 years warranty on filter
6. Manufacture directly sales, lower price, better services and easy maintance.
