Industiral Dust Collector Product Description
KSDC Series is a central dust collection system. It has the characteristics of large air volume, stable structure and convenient cartridge installation and ejection mechanism. It is suitable to deal with the production and processing of a large amount of dust.

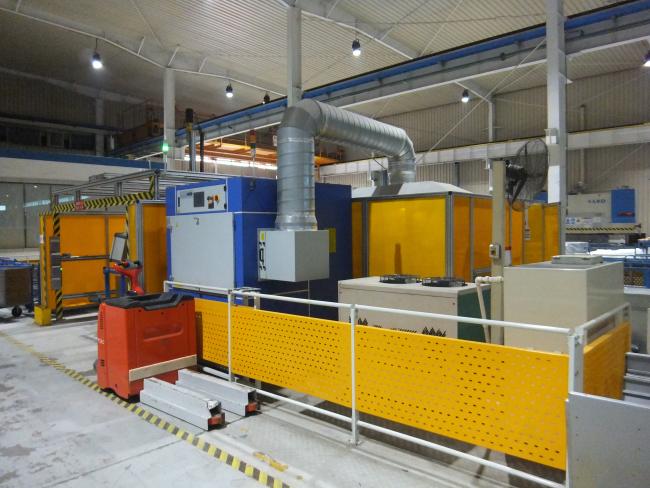

When the workshop have many centralized or relative centralization fume station, we suggest adopts centralized filtration solution. Namely several area fume is collected together, then been treatment efficiently.
Technical Parameters
| No | Model | KSDC-8604B/B1 | KSDC-8604A/A1 | KSDC-8606B/B1 | KSDC-8609B/B1 |
| 1 | Fan Air Flow | 6000/8000±300 m3/h | 6500/8200±300 m3/h | 8000/12000±500 m3/h | 8000/12000±500 m3/h |
| 2 | Inlet Air Flow | 5000/6500m3/h | 4500/6800m3/h | 6500/9500m3/h | 6500/9500m3/h |
| 3 | Motor Power | 5.5/7.5KW | 5.5/7.5kW | 7.5/11KW | 7.5/11KW |
| 4 | Power Supply | 3x380V/50Hz | 3x380V/50Hz | 3x380V/50Hz | 3x380V/50Hz |
| 5 | Filter Material | Polyester + PTFE | Polyester + PTFE | Polyester + PTFE | Polyester + PTFE |
| 6 | Filtration Area | 60㎡ | 60㎡ | 90㎡ | 135㎡ |
| 7 | Filtration Efficiency | ≥99.9% | ≥99.9% | ≥99.9% | ≥99.9% |
| 8 | Filtration Precision | ≥0.3um | ≥0.3um | ≥0.3um | ≥0.3um |
| 9 | Filter Cartridge | 4 Pcs | 4 Pcs | 6 Pcs | 9 Pcs |
| 10 | Cleaning Method | Automatic cleaning | Automatic cleaning | Automatic cleaning | Automatic cleaning |
| 11 | Compressed Air | 0.5~0.6Mpa | 0.5~0.6Mpa | 0.5~0.6Mpa | 0.5~0.6Mpa |
| 12 | Noise Level | ≤72±5 dB | ≤72±5 dB | ≤75±5 dB | ≤75±5 dB |
| 13 | Dimension (WxDxH) | 1170×1663×2150mm | 1100×1100×2750mm | 1620×1750×2150mm | 1800×2000×2500mm |
| 14 | Weight | 770±20kg | 750±20kg | 1050/1120±20kg | 1420 /1550±20kg |
Central Fume Extractor Features
1. Compact structure, easy management and maintenance, safe operation.
2. High-performance fan impeller, high negative pressure and large air volume, can effectively deal with fume and dust.
3. PLC control system, panel simple, easy to operate, clearly shows the situation of different units, and you can touch the screen and adjust the parameters easily.
4. Efficient automatic pulse blowback system, effectively clean the filter cartridge and prolong the service life of the filter cartridge
5. Imported PTFE coated filter cartridge material, the filtration efficiency for 0.3um dust can reach 99.9%.
Package & Shipping
Package: Package Used Wooden Box without Fumigation
The package would include spare parts box and machine installation tools.
Transportation By Sea or By Air are both Acceptable.
