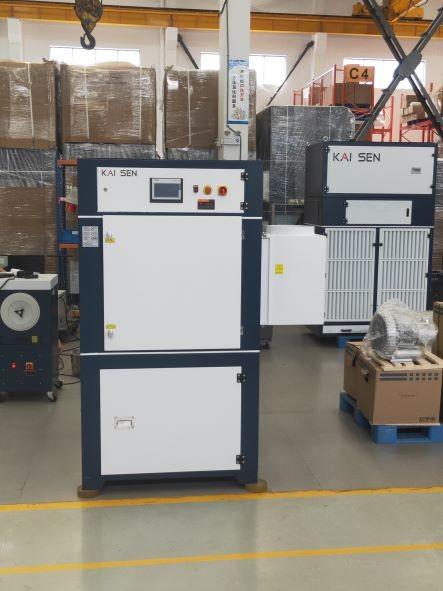

Industrial Fume Extractor 5.5kW For Central Dust Collection System
Industrial Fume Extractor 5.5kW For Central Dust Collection System
Industrial Air Filter Product Introduction
Central fume extractor is a series of products developed by our company based on the requirements of different site conditions. We can design the best fume & dust capturing device and piping system according to different site conditions, and choose suitable purification system according to air flow.
Technical Parameters
| No | Model | KSDC-8604B/B1 | KSDC-8604A/A1 | KSDC-8606B/B1 | KSDC-8609B/B1 |
| 1 | Fan Air Flow | 6000/8000±300 m3/h | 6500/8200±300 m3/h | 8000/12000±500 m3/h | 8000/12000±500 m3/h |
| 2 | Inlet Air Flow | 5000/6500m3/h | 4500/6800m3/h | 6500/9500m3/h | 6500/9500m3/h |
| 3 | Motor Power | 5.5/7.5KW | 5.5/7.5kW | 7.5/11KW | 7.5/11KW |
| 4 | Power Supply | 3x380V/50Hz | 3x380V/50Hz | 3x380V/50Hz | 3x380V/50Hz |
| 5 | Filter Material | Polyester + PTFE | Polyester + PTFE | Polyester + PTFE | Polyester + PTFE |
| 6 | Filtration Area | 60㎡ | 60㎡ | 90㎡ | 135㎡ |
| 7 | Filtration Efficiency | ≥99.9% | ≥99.9% | ≥99.9% | ≥99.9% |
| 8 | Filtration Precision | ≥0.3um | ≥0.3um | ≥0.3um | ≥0.3um |
| 9 | Filter Cartridge | 4 Pcs | 4 Pcs | 6 Pcs | 9 Pcs |
| 10 | Cleaning Method | Automatic cleaning | Automatic cleaning | Automatic cleaning | Automatic cleaning |
| 11 | Compressed Air | 0.5~0.6Mpa | 0.5~0.6Mpa | 0.5~0.6Mpa | 0.5~0.6Mpa |
| 12 | Noise Level | ≤72±5 dB | ≤72±5 dB | ≤75±5 dB | ≤75±5 dB |
| 13 | Dimension (WxDxH) | 1170×1663×2150mm | 1100×1100×2750mm | 1620×1750×2150mm | 1800×2000×2500mm |
| 14 | Weight | 770±20kg | 750±20kg | 1050/1120±20kg | 1420 /1550±20kg |
Central Smoke Absorber Features
1. Central fume extractor is a series of products developed by our company based on the requirements of different site conditions.
2. PLC intelligent control system: Clearly shows the situation of different units, and you can touch the screen and adjust the parameters easily.
3. High-performance fan impeller, high negative pressure and large air volume, can effectively deal with fume and dust.
4. Its filtration efficiency can reach 99.9%.
5. Spark intercept mesh device is installed at the air inlet to avoid direct contact between sparks and the filter cartridge and damage to the filter cartridge.
6. The structure of integrated design is compact and reasonable.
7. The filter cartridge of the dust collector adopts a vertical installation method, and the dust collector adopts pulse automatic rotation cleaning way, makes the surface blowback cleaning effect of the filter cartridge more obvious and thorough, and can always ensure it has a maximum ventilation capacity. Greatly improve the service life of the dust collector.
8. Central dust collector is mainly used for scattered, large amount, wide-area dust collection.
9. As per the workpiece material you processed, we supply non-explosion-proof and explosion-proof type dust collector. Explosion-proof device can be equipped to protect your workers when necessary. If you're not sure which type to choose, you can tell us your welding workpiece material, then we'll recommend you the suitable type.
Application
Welding fume Filtration,Welding fume Killer system
Robotic Welding Fume Extraction & Dust Extraction
Soldering Fume Filtration
Laser Fume Filtration
Hazardous Fume / Dust Filtration / Odour Removal
Custom Made Ducting With Exhaust Systems
