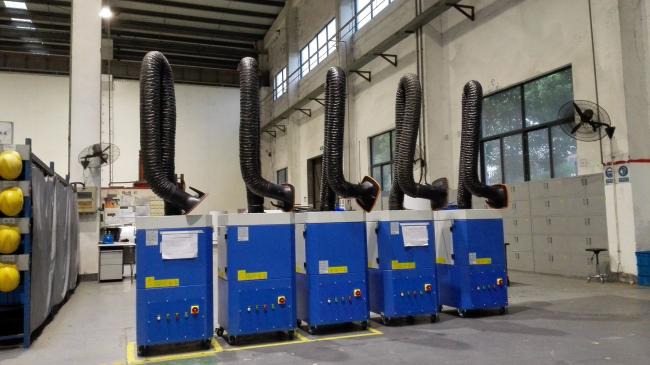

Welding Fume Extractor Product Introduction
Welding dust collector is an equipment designed for filter the dust generated from welding. Welding is extramely common in factories as a mechanical process. In welding process, a variety of harmful dust are produced, which are directly discharged into the air without treatment. Workers in a polluted environment working for a long time, which will have a great impact on health. After a long time, it is easy to cause occupational diseases such as pneumoconiosis.
Welding dust collector can filter the dust come from welding, grinding, cutting, polishing and other processing, can improve the workshop environment effectively, ensure the workers health.
Technical parameters
| No. | Item | KSJ-1.5B | KSJ-1.5S2 |
| 1 | Fan type | Centrifugal fan | Centrifugal fan |
| 2 | Fan Air Flow | 3000±100 m3/h | 3000±100 m3/h |
| 3 | Treatment of air flow | 1500±100 m3/h | 1800±100 m3/h |
| 4 | Power | 1.5 kW | 1.5kW |
| 5 | Working Voltage | 3×380 or 415V/50Hz | 3×380 or 415V/50Hz |
| 6 | Filtration area | 10 m2 | 8 m2 |
| 7 | Number of cartridge filters | 1 piece | 1 piece |
| 8 | Filter Material | Polyester + PTFE | Polyester + PTFE |
| 9 | Filtration efficiency | >99.9% | >99.9% |
| 10 | Solenoid valve | 1 piece | 1 piece |
| 11 | Compressed air | 5～6 bar | 5～6 bar |
| 12 | Ash hopper volume | 12L | 12L |
| 13 | Noise | ≤72±5dB(A) | ≤74±5dB(A) |
| 14 | Weight | 154±5kg | 120±5kg |
| 15 | Dimensions | 650(L)×650(W)×1200(H)mm |
650(L)×650(W)×1200(H)mm |
Workshop Dust Collection Features
1.Suction arm can be rotated by 360° and can reach the position flexibly and easily by pulling the handle on the hood and position in the absence of external force.
2 .The filter elment of the welding fume extractor is made of imported PTFE membrane filter material of high filtration precision, and the filtration precision reaches 0.3 μm.
3 .Depending on needs, 2m, 3m flexible suctrion arm are available.
4. The corresponding indicator on the control panel will light up to indicate different conditions and a power phase sequence indicator phase absence and short-circuit protection are set inside.
5. It is suitable for the purification of fume and dust generated in all kinds of welding, grinding and other places as well as for collecting rare metal particles and precious material.
What we provide
KAISEN produces a wide range of industrial fume/dust extraction and collection equipments, such as mobile welding fume extractor, laser fume/dust collector, soldering fume extractor, mobile high vacuum fume extractor, central high vacuum fume extractor, self-circulation purifying tower, plasma cutting valve-type fume extraction system, central/downdraft grinding dust collector...etc. and other spare parts included.
