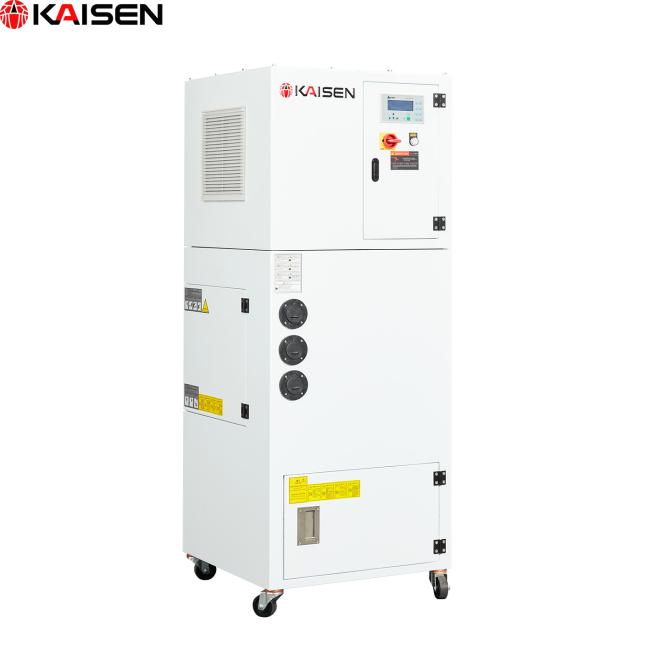

Dust Collector High Vacuum For Industrial Robot Welding 700 M3/H Air Flow KSG-5.5A
Dust Collector High Vacuum For Industrial Robot Welding 700 M3/H Air Flow KSG-5.5A
Fume Extractor Product introduction
High vacuum welding fume extractor is an industrial dust removal equipment, which is specially used to collect and filter dry, oil-free and non-corrosive smoke and dust. The high negative pressure welding fume purifier has a two-stage filtration device: the first stage is for large particle spark filtration, and the second stage is for fine dust filtration (PTFE coated filter cartridge). The high vacuum welding fume extractor can filter up to 99% of 0.3um welding, cutting and grinding fume.
Technical parameters
| No. | Model | KSG-5.5A | KSG-3.4A |
| 1 | Treatment of air flow | 700±10m3/h | 450±10m3/h |
| 2 | Motor Power | 5.5Kw | 3.4kW |
| 3 | Voltage | 380 V/50 Hz | 380 V/50 Hz |
| 4 | Filter Material | Polyester+PTFE | Polyester+PTFE |
| 5 | Filtering area | 20m2 | 20m2 |
| 6 | Cleaning Methods | Automatic Cleaning | Automatic Cleaning |
| 7 | Compressed Air | 0.5-0.6MPa | 0.5-0.6MPa |
| 8 | Filtration efficiency | >99.9% | >99.9% |
| 9 | Filtering Precision | ≥0.3um | ≥0.3um |
| 10 | Noise | ≤72±5dB(A) | ≤72±5dB(A) |
| 11 | Dimension | 700×700×1850 mm | 700×700×1850 mm |
| 12 | Weight | 295±10Kg | 265±10Kg |
Welding Smoke Absorber Features
1. It is equipped overload prevention circle to avoid motor damage. It is of steady performance.
2. Imported PTFE coated filter cartridge has high purification efficiency and durability. The filter cartridge is automatically cleaned by pulse back blowing. The filtration for 0.3um dust can reach 99.9%.
3. It is attached with all-direction caster wheels, which makes the facility movable freely and easy to position.
4. Low noise, stable performance, convenient operation longer lifetime.
5. Apply anti-overloaded circuit to protect the motor from burning out, high security and stable working performance.
Pulsing back-flushing automatic dust -removal system and manual cleaning type for your choice.
6. Application: Robot welding dust collection, large work piece splicing mobile welding, mobile polishing dust removal and other welding conditions.
Company Profile
Shanghai Kaisen Environmental Technology Co.,Ltd has beenalways committed to designing, R&D and manufacturing of industrial dust collectors.Since 2007 we had been engaged in dust collectors for ten years.Our products are extensively applied to the processing of welding, cutting, grinding, painting, casting, chemical, wood processing, paper and other industries.
Package & Shipping
Package: Package Used Wooden Box without Fumigation
The package would include spare parts box and machine installation tools.
Transportation By Sea or By Air are both Acceptable.
