Smoke Absorber Product Description
KSZ series multifunctional mobile fume extractors adopts intelligent PLC system, displays real-time operating parameters, and can realize automatic cleaning according to the monitoring of differential pressure sensor.

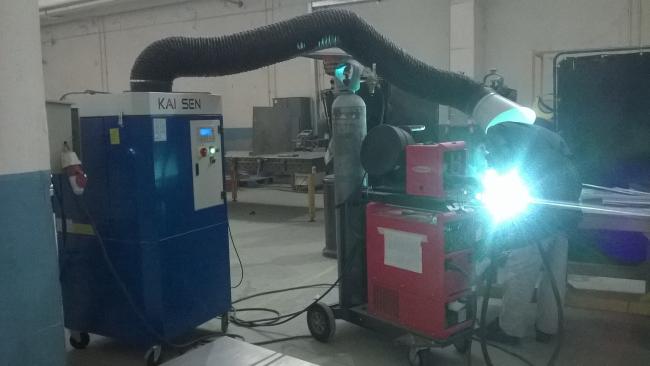

Its freely movable suction arms can be easily extended or rotated 360°, and its suction hood is also simple to position above any welding workstation without any external support, which allowing welders to position the hood wherever it’s needed.
Technical parameters
| No. | Item | KSZ-3.0D1/D2 | KSZ-3.0D |
| 1 | Fan type | centrifugal fan | centrifugal fan |
| 2 | Fan Air Flow | 4000±100 m3/h | 4000±100 m3/h |
| 3 | Treatment of air flow | 2800 m3/h | 2600 m3/h |
| 4 | Motor power | 3 kW | 3kW |
| 5 | Power supply | 3×380V/50Hz or 3×220V/60 Hz | 3×380V/50Hz or 3×220V/60 Hz |
| 6 | Filtration area | 20m2 | 20m2 |
| 7 | Number of cartridge filters | 2 pieces | 2 pieces |
| 8 | Filter medium | Polyester+PTFE | Polyester+PTFE |
| 9 | Filtration efficiency | >99.9% | >99.9% |
| 10 | Filtering Precision | ≥0.3um | ≥0.3um |
| 11 | Solenoid valve | 2 pieces | 2 pieces |
| 12 | Maximum Pressue | 2800Pa | 2800Pa |
| 13 | Compressed air |
5～6 bar
|
5～6 bar |
| 14 | Ash hopper volume | 15L | 15L |
| 15 | Noise | ≤74±5dB(A) | ≤74±5dB(A) |
| 16 | Weight | 266±10kg | 266±10kg |
| 17 | Dimensions(excluding suction arm) | 800(L)×800(W)×1633(H)mm | 800(L)×800(W)×1633(H)mm |
Industrial Fume Extractor Features
1. High efficiency custom aluminum impeller, high air flow, low noise.
2. Imported polyester + PTFE filter material, 0.3 um filtration precision, 99.9% filtration efficiency.
3. Internal arm adopts precise 360° slewing support, flexible rotation, arbitrary hovering, high temperature resistance & flame retardant & abrasion resistance, wide range of movement,single-arm and double-arm for you to choose.
4. PLC control system, easy to operate.
5. Pulsing back-flushing automatic dust-removal system, the filter core is the automatic rotating and back-flushing type, which keeps the filter core surface clean when working, to insure the stable blowing rate; the air compressor parts are connected with high pressure rubber pipe with high pressure air-inflow in the bottom, which insure the facility always in good working condition.
6. Four wheels at the bottom parts, two with brake and easy to fix.
Packing & Shipping
Package: Package Used Wooden Box without Fumigation
The package would include spare parts box and machine installation tools.
Transportaiton By Sea or By Air are both Acceptable.
