Downdraft Grinding Dust Collector With Polyester Coated Cartridge Filters
Downdraft Grinding Dust Collector With Polyester Coated Cartridge Filters
Polishing Fume Extractor Product Introduction

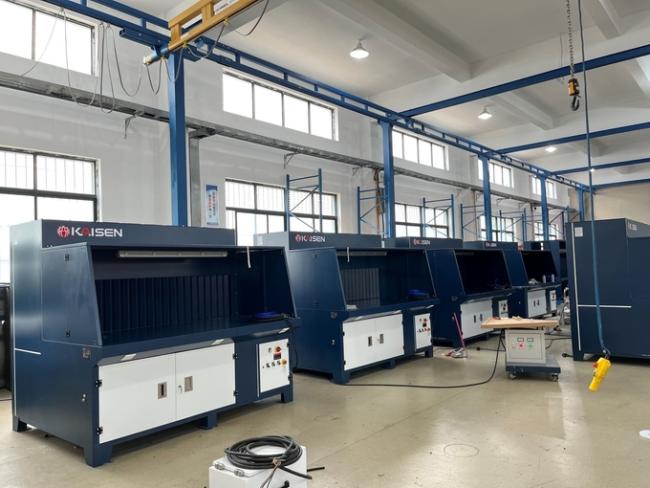

Grinding dust removal workbench is a kind of industrial air filter equipment, it is mainly used to filter dust generated in production processes, such as cutting, grinding and polishing. This workbench can capture fine suspended smoke and dust without interfering with workers' daily operations.
Grinding and polishing dust removal workbench, exhaust air on all sides, built-in dust removal system, fan sound insulation, no need for pipe connection, exhausted clean air can be discharged indoor directly, reducing energy costs. It can capture fine suspended smoke and dust without interfering with the movement and vision of workers.
Technical parameters
|
No. |
Item |
KSDM-5.5-2 |
KSDM-7.5-2 |
|
1 |
Fan type |
centrifugal fan |
centrifugal fan |
|
2 |
Treatment of air flow |
5800±300 m3/h |
8000±300 m3/h |
|
3 |
Motor power |
5.5 kW |
7.5kW |
|
4 |
Power supply |
3×380 or 415V/50Hz |
3×380 or 415V/50Hz |
|
5 |
Filtration area |
36 m2 |
48 m2 |
|
6 |
Number of cartridge filters |
3 pieces |
4 pieces |
|
7 |
Filter medium |
Polyester coated |
Polyester coated |
|
8 |
Filtration efficiency |
>99.9% |
>99.9% |
|
9 |
Filtration Precision |
≥0.3um |
≥0.3um |
|
10 |
Compressed air |
5～6 bar |
5～6 bar |
|
11 |
Cleaning Way |
Automatic Cleaning |
Automatic Cleaning |
|
12 |
Noise |
≤72±5dB(A) |
≤72±5dB(A) |
|
13 |
Weight |
915±15kg |
1350±15kg |
|
14 |
Dimensions |
1950(L)×1535(W)×1845(H)mm |
2200(L)×1820(W)×1970(H)mm |
Features
1. Downdraft table is an industrial dust removal equipment integrating workbench and dust collector. Integral byte polishing dust removing worktable, internal blower, motor and dust collector worktable. With splash and large particles separation, filtration, collection function
2 . Explosion proof integrated self-cleaning polishing dust removing workbench, explosion-proof explosion-proof fan set, explosion-proof electric control box.
3 . The utility model has the advantages of low noise, stable performance, convenient operation and use, etc..
4. It has a table and dust removal function which can remove the dust directly in the source of producing dust.
5. Water curtain sanding dust removing and purifying worktable.
6. The filter lives longer with stable performance and can be changed conveniently.
Applications
1. Middle to large amounts of dust.
2. Small and length size metal workpieces.
3. Sand grinder polishing and grinding dust.
