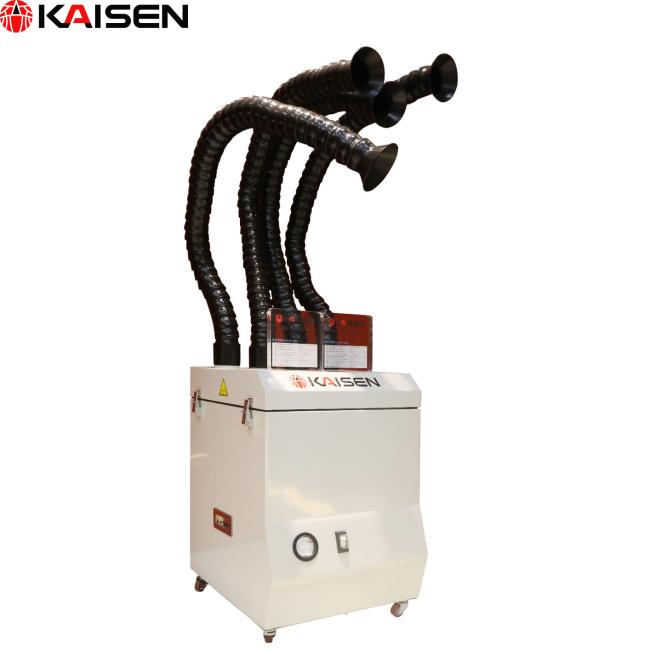

Portable Soldering Fume Extractor Smoke Absorber With 4 Pieces 1.2m Suction Arm
Portable Soldering Fume Extractor Smoke Absorber With 4 Pieces 1.2m Suction Arm
Dust Collector Product Introduction
Kaisen soldering fume extractor suitable for fume filtration and dust collection for different welding process. It also has very good performance for Dust collection and fume filtration for soldering, laser cutting metal, plasma cutting, polishing and small work piece metal grinding, etc;
Technical parameters
|
NO. |
Item |
KSXH-26B | KSXH-20B |
|
1 |
Motor type |
Centrifuged fan |
Centrifuged fan |
|
2 |
Air flow |
850±20m3/h |
260±20m3/h |
|
3 |
Power |
0.26KW |
0.2kW |
|
4 |
Voltage & frequency |
220V/50Hz |
220V/50Hz |
|
5 |
Filtering area |
7㎡ |
4㎡ |
|
6 |
Filter layer |
3 layers |
3 layers |
|
7 |
Filtering material |
Glass fabric, active carbon |
Glass fabric, active carbon |
|
8 |
Filtering efficiency |
0.5um ,>95% |
0.5um ,>95% |
|
9 |
Noise |
≤65±5dB(A) |
≤65±5dB(A) |
|
10 |
Suction arm |
4 pcs 1.4m φ75mm |
2 pcs 1.4m φ75mm |
| 11 | Cleaning Way | Changing Cleaning | Changing Cleaning |
|
12 |
Weight |
48±2kg |
15±2kg |
|
13 |
Dimension |
540×500×780 mm |
308×308×420 mm |
Application
1. Electronic factory PCB welding
2. Soldering
3. Laser engraving, marking, MINI laser cutting.
4. Nail salon
5. Dentist clinic etc.
Advantages
1. Reasonable structure, compact and practical.
2. It is equipped with three layer filter system to avoid the damage effect of flame and large slag particles, which extend the useful life, safer and more reliable.
3. Suction arm adopts precise 360° slewing support,flexible rotation, arbitrary hovering, wide range of movement.
4. One-button start switch, electronic control system is easy to operate, reliable and durable. Automatic pulse jet blowing-back dust clean device can clean dust in machine effectively
5. Dust can be removed from the place where the dust occurs, greatly increasing the collection rate of the dust, directly capturing the dust at the source, in one step;
Packaging & Shipping
Package: Package Used Wooden Box without Fumigation
The package would include spare parts box and machine installation tools.
Transportaiton By Sea or By Air are both Acceptable.
Company Profile
Shanghai Kaisen Environmental Technology Co., Ltd is established in 2007, it located at the technology innovation corridor of G60 in Shanghai. The factory area is about 6 0 0 0 square meter, and it also passed I S O 9 0 0 1, I S O 1 4 0 0 1 and O S A S 1 8 0 0 1 management certification. Over many years, we have been always committed to designing, research & development and manufacturing of industrial fume extractor system. These products are extensively applied to the processing of welding, cutting, grinding, painting, casting, chemical, wood, paper, food and other industries.
