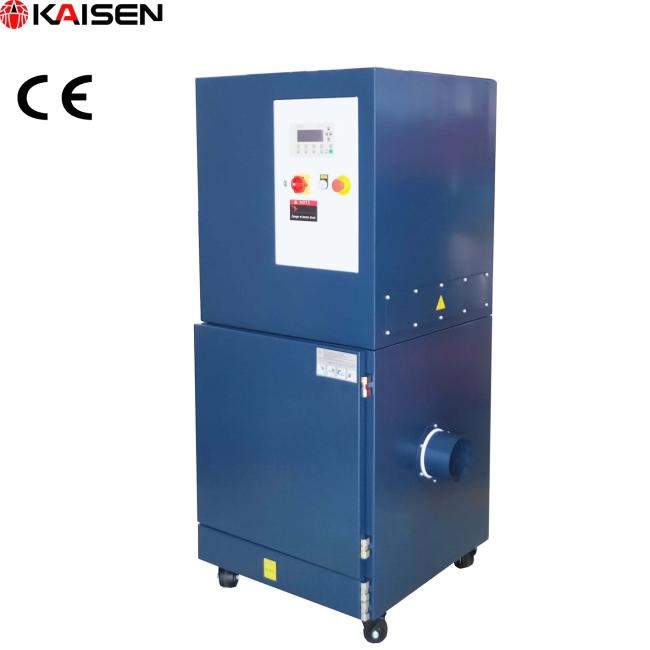

Fume Extraction Equipment 1.5kW Dust Collector For Industrial Laser Cutting
Fume Extraction Equipment 1.5kW Dust Collector For Industrial Laser Cutting
Fume Extractor Product Introduction
Kaisen laser fume extractor suitable for fume filtration and dust collection for different welding process. It also has very good performance for Dust collection and fume filtration for laser cutting metal, plasma cutting, polishing and small work piece metal grinding, etc;
Technical parameters
| No. | Item | KSJ-1.5G | KSJ-2.2G | KSJ-3.0G |
| 1 | Fan type | centrifugal fan | centrifugal fan | centrifugal fan |
| 2 | Treatment of air flow | 2400±100 m3/h | 2600±100 m3/h | 4000±100 m3/h |
| 3 | Motor power | 1.5 kW | 2.2kW | 3.0kW |
| 4 | Power supply | 3×380 or 415V/50Hz | 3×380 or 415V/50Hz | 3×380 or 415V/50Hz |
| 5 | Filtration area | 20m2 | 30m2 | 40m2 |
| 6 | Number of cartridge filters | 2 pieces | 3 pieces | 4 pieces |
| 7 | Filter medium | PTFE coated filter element | PTFE coated filter element | PTFE coated filter element |
| 8 | Filtration efficiency | >99.9% | >99.9% | >99.9% |
| 9 | Compressed air | 5～6 bar | 5～6 bar | 5～6 bar |
| 10 | Cleaning Way | Automatic Cleaning | Automatic Cleaning | Automatic Cleaning |
| 11 | Noise | ≤75±5dB(A) | ≤75±5dB(A) | ≤75±5dB(A) |
| 12 | Weight | 225±10kg | 275±10kg | 435±10kg |
| 13 | Dimensions(excluding suction arm) | 720(L)×700(W)×1745(H)mm | 900(L)×800(W)×1775(H)mm | 1100(L)×800(W)×2000(H)mm |
Smoke Absorber Features
1. The laser fume extractor's operation is controlled by PLC control system.
2 .All of operations control and information display are on the control panel with control button and display screen, the operation screen is humanization design and the operating is very convenient.
3. Our engineers can set the running program according to the requirement of different working conditions, for instance the automatically cleaning ash times after starting and stopping the equipment.
4. Its filtration efficiency can reach 99.9%.
5. Setting up the reverse blow cleaning's technical parameters according to the on-site air environment, fume & dust characters and compressed air supplying.
6. The controlling system implements real time monitoring and analyzes on a number of important parameters of the equipment in operation, and show them on the display screen.
7. It's equipped with automatic shutdown mechanism when the temperature is too high (optional) and automatically rotating blowing protection when the pressure difference is too high (optional).
-Power switch
-Power indicating light
-PLC implementation of filter semi-automatically cleaning
-Fan rotation direction monitor(Inside the control box)
on active filter.
Advantages
1. The strusture is compact, stable performance, can be appiled in a variety of situation.
2. PLC control system, real time monitoring, easy to operate
3. Set the running program according to the requirement of different working conditions
4. Imported material of wood fiber filtering, can reach 99.9% filtration efficiency of 0.3um fume
5. Automatic back blowing cleaning way
6. CE and RoHS certification is approved
