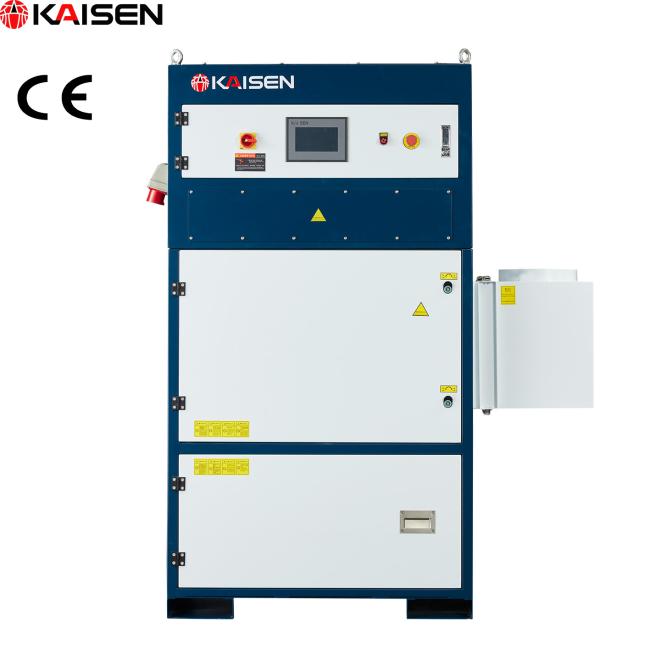

Laser Smoke Extractor Unit Dust Collector 3.0kW For Industrial Fume Purifier
Laser Smoke Extractor Unit Dust Collector 3.0kW For Industrial Fume Purifier
Smoke Absorber Product Introduction

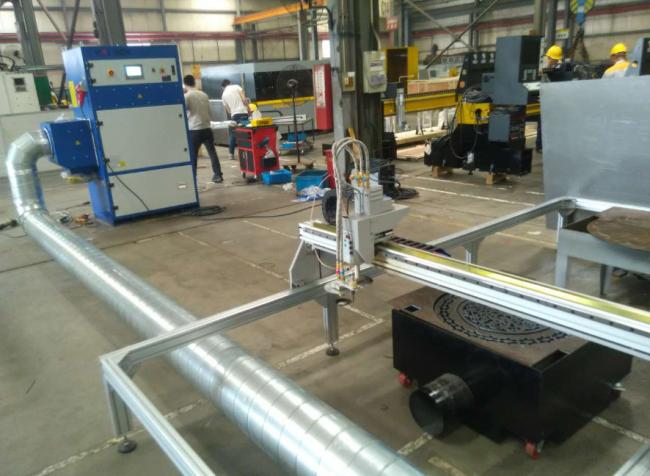

This product mainly used for laser working room, CNC laser cutting, grinding wheel and other fume purification.The purification of dust can solve the workshop pollution question, control the emissions of dust from welding process generated within the specified range. Ensure the workers health and cleaning of the workshop environment. And adopted the world leading technique of PTFE coating micro particle filtration, filtration efficiency can reache 99.99%, meanwhile maintains a high air flow; the extractor can clean dust automatically. It is ideal for purifying dry, oil-free, non-corrosive fume mixture generated in welding, polishing, cutting and other processes.
Technical parameters
| No. | Item | KSJ-3.0G | KSJ-1.5G | KSJ-2.2G |
| 1 | Fan type | centrifugal fan | centrifugal fan | centrifugal fan |
| 2 | Treatment of air flow | 4000±100 m3/h | 2400±100 m3/h | 2600±100 m3/h |
| 3 | Motor power | 3.0kW | 1.5 kW | 2.2kW |
| 4 | Power supply | 3×380 or 415V/50Hz | 3×380 or 415V/50Hz | 3×380 or 415V/50Hz |
| 5 | Filtration area | 40m2 | 20m2 | 30m2 |
| 6 | Number of cartridge filters | 4 pieces | 2 pieces | 3 pieces |
| 7 | Filter medium | PTFE coated filter element | PTFE coated filter element | PTFE coated filter element |
| 8 | Filtration efficiency | >99.9% | >99.9% | >99.9% |
| 9 | Compressed air | 5～6 bar | 5～6 bar | 5～6 bar |
| 10 | Cleaning Way | Automatic Cleaning | Automatic Cleaning | Automatic Cleaning |
| 11 | Noise | ≤75±5dB(A) | ≤75±5dB(A) | ≤75±5dB(A) |
| 12 | Weight | 435±10kg | 225±10kg | 275±10kg |
| 13 | Dimensions(excluding suction arm) | 1100(L)×800(W)×2000(H)mm | 720(L)×700(W)×1745(H)mm | 900(L)×800(W)×1775(H)mm |
Advantages
1. PLC control system, real time monitoring, easy to operate
2. Set the running program according to the requirement of different working conditions
3. Imported material of PTFE fiber filtering, can reach 99.9% filtration efficiency of 0.3um fume
4. Automatic back blowing cleaning way
5. The strusture is compact, stable performance, can be appiled in a variety of situation.
6. Large air flow, low noise
Company information
Shanghai Kaisen Environmental Technology Co., Ltd is established in 2007, it located at the technology innovation corridor of G60 in Shanghai. The factory area is about 6 0 0 0 square meter, and it also passed I S O 9 0 0 1, I S O 1 4 0 0 1 and O S A S 1 8 0 0 1 management certification. Over many years, we have been always committed to designing, research & development and manufacturing of industrial fume extractor system. These products are extensively applied to the processing of welding, cutting, grinding, painting, casting, chemical, wood, paper, food and other industries.
