Welding Dust Collector Product Introduction

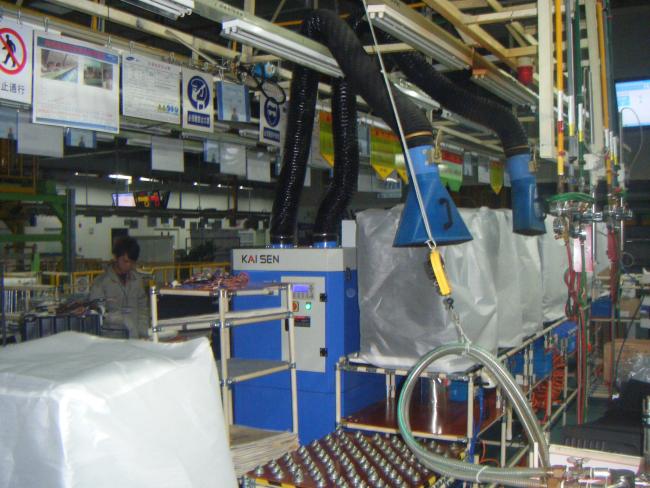

Mobile fume extractor is equipped with two suction arms, bottom equipped with 2 directional and 2 swivel casters with brake, that is mainly used for mobile welding station. This product is suitable for the filtration of dust generated in various welding, grinding and other places, as well as thecollection of rare metals and precious materials. Improve the work environment effectively, ensure the workers health.
Industrial Air Filter Features
1. High efficiency custom aluminum impeller, high air flow, low noise.
2. High filtration efficiency, adopt imported PTFE coated filter material, the filtration efficiency for 0.3um dust can reach 99.9%, exhausted clean air can be discharged in the workshop directly.
3. PLC control panel, the operation panel is clear and simple, very easy to operate, and has the function of remote monitoring.
4. Self-supporting & self-positioning suction hood.
5. Special designed dust cleaning device, semi-auto & full-auto cleaning method.
6. φ160mm, 3m or 4m length, 360° rotated suction arm, can stay at any position, wide range of application. High temperature resistance & flame retardant & abrasion resistance. It will not crack after burning through by sparks, the service life will be longer
7. The structure is compact, stable performance, portable design, can be appiled in a variety of situation.
8. Power phase sequence instructions, short-circuit protection for lack of phase, with shutdown protection measures when too high temperature.
9. Wide range of uses: Gas shiels welding, argon arc welding, MMA, laser welding and other tiny metal cutting dust removal.
Technical parameters
| No. | Item | KSZ-3.0D | KSZ-3.0D1/D2 |
| 1 | Fan type | Centrifugal fan | Centrifugal fan |
| 2 | Treatment of air flow | 2600±100 m3/h | 2800±100 m3/h |
| 3 | Motor power | 3.0 kW | 3.0kW |
| 4 | Power supply | 3×380/50Hz or 3×220V/60Hz | 3×380/50Hz or 3×220V/60Hz |
| 5 | Filtration area | 20m2 | 20m2 |
| 6 | Number of cartridge filters | 2 pieces | 2 pieces |
| 7 | Filter medium | Polyester+PTFE | Polyester+PTFE |
| 8 | Filtration efficiency | >99.9% | >99.9% |
| 9 | Filtration Precision | ≥0.3um | ≥0.3um |
| 10 | Compressed air | 5～6 bar | 5～6 bar |
| 11 | Cleaning Way | Automatic Cleaning | Automatic Cleaning |
| 12 | Noise | ≤74±5dB(A) | ≤74±5dB(A) |
| 13 | Weight | 266±10kg | 266±10kg |
| 14 | Dimensions | 800(L)×800(W)×1633(H)mm | 800(L)×800(W)×1633(H)mm |
Package & Shipping
Package: Package Used Wooden Box
Transportation By Sea or By Air are both Acceptable.
