Durable Weld Smoke Collector , Stainless Steel Hood Industrial Dust Extraction Units

Economical mobile welding fume extractor with 2m arms & stainless steel hood and suiting TIG & MIG welding fume disposal

Working principle

Product Introduction

1. Mobile welding fume extractor has two directional and two rotary polyurethane casters with brake

    device for easy moving and stationing. It is suitable for the purification of fume and dust generated

    in all kinds of welding, grinding and other places as well as for collecting rare metal particles and

    precious material.

2. Suction arm can be rotated by 360 °and can reach the position flexibly and easily by pulling the

    handle on the hood and position in the absence of external force. Depending on needs, 2m, 3m

    flexible suction arm are available.Suction arm uses high temperature resistant, flame retardant

    and wearable composite material, it will not crack after burning through by spark and has a longer

    usage life. The diameter of suction arm is 160mm.

3. The fume comes from the processing will be sucked into the extractor through the hood, first the fume

    passes the 1^st layer preventer plate which will ramify the fume to avoid residual sparks enter into filter

    layer directly. Finally, the fume enters the second layer of HEPA filter cartridge for ultimate purification,

    and HEPA’s filtration efficiency can reach 99.9%. As the filtering precision of the main filter cartridge

    reaches the indoor emission standard, the filtered clean air can be directly discharged indoor via the

    vent in the bottom of the extractor.

4. The filter cartridge of the welding fume extractor is made of imported filtering material of high

    filtration precision and can filter out welding fume of 0.5μm. According to the extractor’s work intensity

    and the amount of dusts, the usage life of the filter cartridge is different.

Main  features:

1. CE certification and EMC test report is approvable.

2. Specically suiting for TIG,MIG etc. small fume volume working conditions.

3. Small dimension, easy to move,  low power and energy consumption,low price.

4. It's able to change PTFE membrane filter cartridge to get better filtering precision.

5. Gas-pressue meter from USA, Switzerland switch ( Water proof, dust proof and short-circuit protection)

Standard Parameters

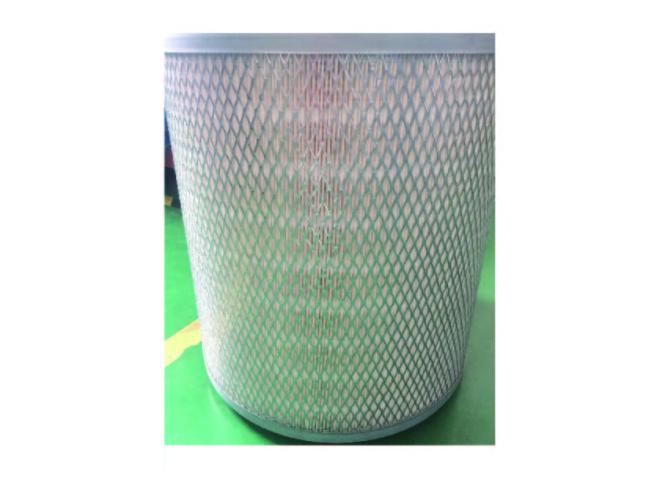

Nano-meter filter
