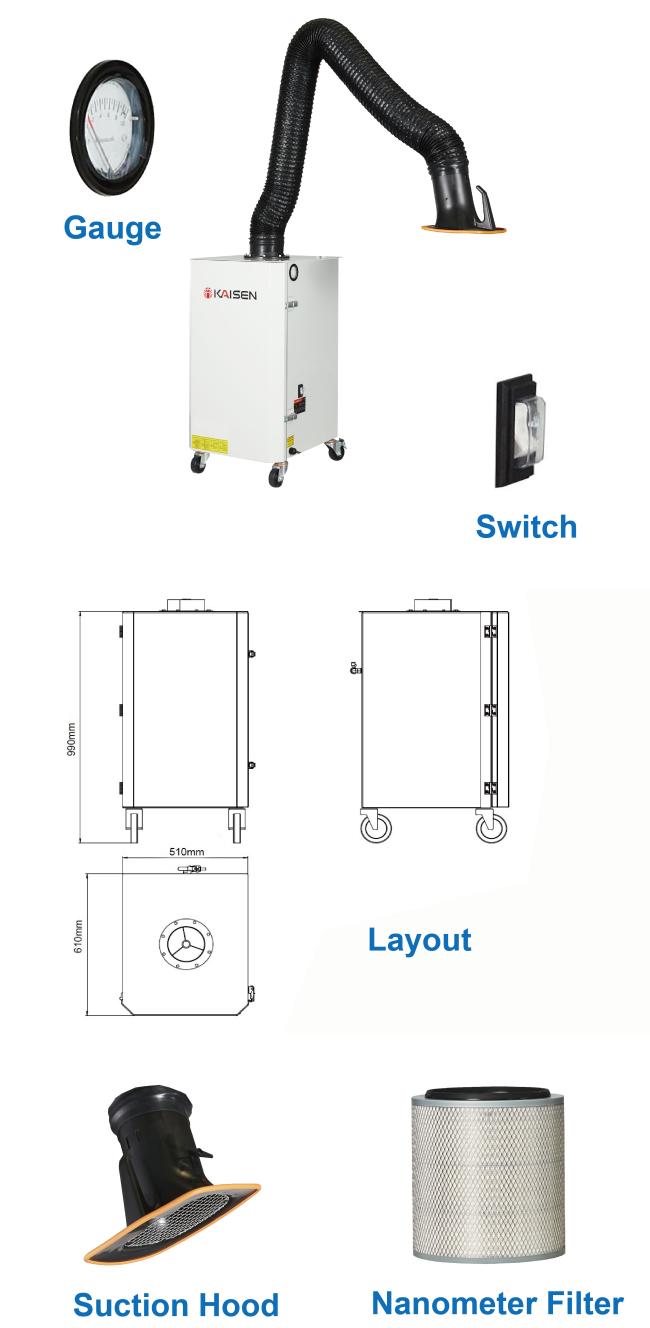

Single arm & small air flow welding smoke purifier with EMC test report

Product Introduction

1. It is suitable for the purification of fume and dust generated in all kinds of welding, grinding and

    other places as well as for collecting rare metal particles and precious material.

2. Mobile welding fume extractor has two directional and two rotary polyurethane casters with brake

    device for easy moving and stationing.

3. Suction arm can be rotated 360° horizontally, according to actual working condition, suction volume can

    be adjusted by adjusting volume valve in suction hood.

4. Fume cleaning:Cleaning use compressed air(0.5～0.6MPa) to reverse blowing, external compressed

    air PU hose Φ10mm. If need dust removing, just open the valve of the top of equipment, lasting time at

    3S～8S,more or less.

5. The fume comes from the processing will be sucked into the extractor through the hood, first the fume

    passes the 1st layer preventer plate which will ramify the fume to avoid residual sparks enter into filter

    layer directly. Finally, the fume enters the second layer of HEPA filter cartridge for ultimate purification,

    and HEPA’s filtration efficiency can reach 99.9%. As the filtering precision of the main filter cartridge

    reaches the indoor emission standard, the filtered clean air can be directly discharged indoor via the

    vent in the bottom of the extractor.

6. The filter cartridge of the welding fume extractor is made of imported filtering material of high filtration

    precision and can filter out welding fume of 0.5μm. According to the extractor’s work intensity and the

    amount of dusts, the usage life of the filter cartridge is different.

Main features:

1. CE certification and EMC test report is approvable.

2. Specically suiting for TIG,MIG etc. small fume volume working conditions.

3. Small dimension, easy to move,  low power and energy consumption,low price.

4. It's able to change PTFE membrane filter cartridge to get better filtering precision.

5. Gas-pressue meter from USA, Switzerland switch ( Water proof, dust proof and short-circuit protection)

Standard Parameters
