Metallic Workpiece Downdraft Grinding Table Polyester Coated Material Filter
Price:
Negotiation
MOQ:
1 set
Delivery Time:
25 work days
Brand:
KAISEN
Product Description
Metallic Workpiece Downdraft Grinding Table Polyester Coated Material Filter

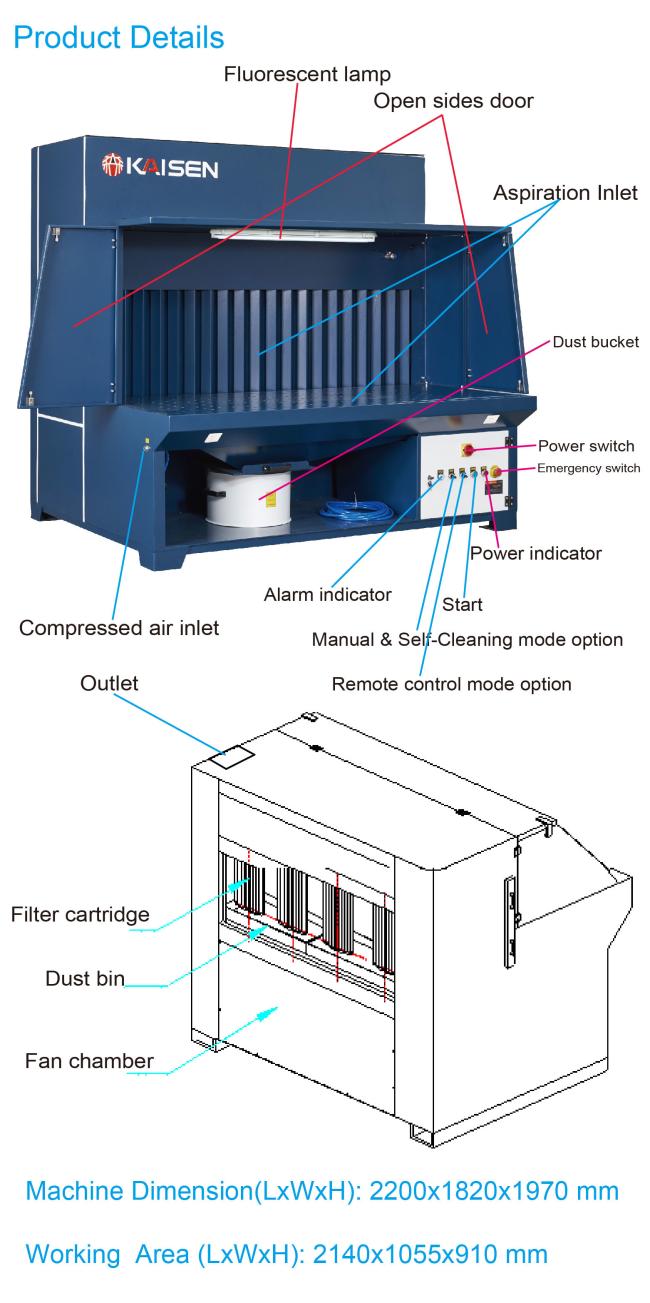

Main features
1. CE and explosion-proof certification is available.
2. Worksize is 1890*855*650mm (LXWXH), the table is available in different sizes
3. Middle air flow, semi-automatically cleaning, maintaining easy.
4. Safe working due to robust material support
5. Side walls can be folded away so also suitable for larger workpieces
6. Comfortable to work with thanks to the ergonomically adapted sheet steel construction
Technical parameters
| No. | Item | Parameter |
| 1 | Fan type | centrifugal fan |
| 2 | Treatment of air flow | 8000±100 m3/h |
| 3 | Motor power | 7.5 kW |
| 4 | Power supply | 3×380 or 415V/50Hz |
| 5 | Filtration area | 48 m2 |
| 6 | Number of cartridge filters | 4 pieces |
| 7 | Filter medium | Polyester |
| 8 | Filtration efficiency | >99.9% |
| 9 | Solenoid valve3 | 4 pieces |
| 10 | Compressed air | 5～6 bar |
| 11 | Ash hopper volume | 50L |
| 12 | Noise | ≤72±5dB(A) |
| 13 | Weight | 1350±20kg |
| 14 | Dimensions |
2200(L)×1820(W)×1970(H)mm |
