Flexible Move Welding Fume Collector , Laser Graving Welding Smoke Eater
Price:
Negotiation
MOQ:
1 set
Delivery Time:
15 work days
Brand:
KAISEN
Product Description

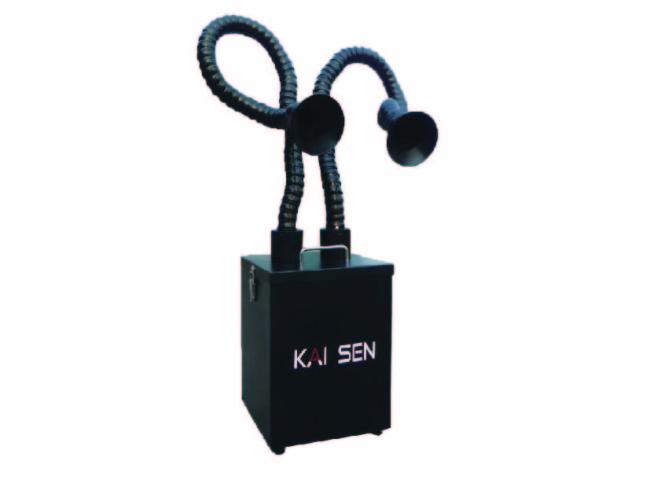

Laser graving smoke extraction with two arms
Main features
1. Integrated design, convenient installation, flexible move, no pipes needed.
2. It adopts internal three layers filtering (including activated carbon filters) to ensure the filter more
accurate, get rid of smell stronger, extend the service life of filter materials. Reduce maintenance costs
during use.
3. Built-in way to avoid indoor air filtration cycle air conditioning / heating discharged to outside.
4. High-power brushless motor, long life, low noise, a high air flow.
Technical parameters
| NO. | Item | Parameter |
| 1 | Motor type | Centrifuged fan |
| 2 | Air flow | 260±10m3/h |
| 3 | Power | 0.20KW |
| 4 | Voltage & frequency | 220V/50Hz |
| 5 | Filtering area | 2㎡ |
| 6 | Filter layer | 3 layers |
| 7 | Filtering material | Glass fabric, active carbon |
| 8 | Filtering efficiency | 0.5um ,>95% |
| 9 | Noise | ≤65±5dB(A) |
| 10 | Suction arm | 2 pcs 1.2m φ75mm |
| 11 | Suction hood (optional) | φ355 mm ,Acrylic material |
| 12 | Weight | 14±2kg |
| 13 | Dimension | 308×308×420 mm |
