Welding fume extraction system unit with long filter life OEM ODM extraction for cutting dust

This is the OEM product we made for our British customer.
We accept ODM/OEM.


Working Principle
The fume comes from the processing will be sucked into the extractor through the hood, first the fume passes the 1st layer preventer plate which will ramify the fume to avoid residual sparks enter into filter layer directly. Finally, the fume enters the second layer of HEPA filter cartridge for ultimate purification, and HEPA ’s filtration efficiency can reach 99.9%. As the filtering precision of the main filter cartridge reaches the indoor emission standard, the filtered clean air can be directly discharged indoor via the vent in the bottom of the extractor.

Product introduction

Mobile welding fume extractor are designed to be utilized as a respiratory safety engineering control during a variety of welding applications, including TIG welding, MIG welding, maintenance welding, production welding, clean room welding, stick welding, stainless steel tank welding, rapid location welding, and much more.

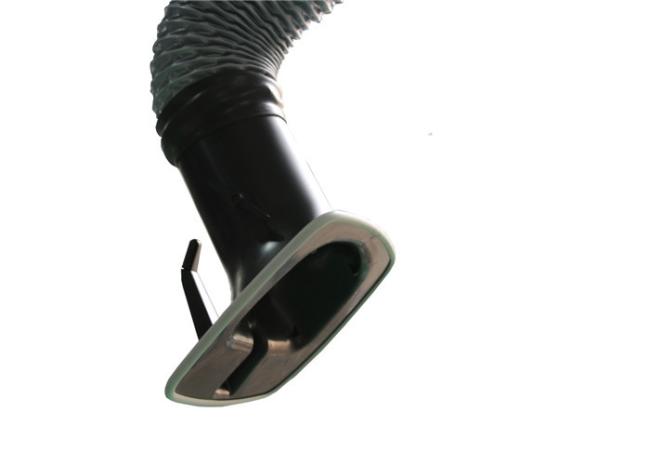

Depending on needs, 2m, 3m flexible suction arm are available. Suction arm uses high temperature resistant, flame retardant and wearable composite material, it will not crack after burning through by spark and has a longer usage life. The diameter of suction arm is 160mm.


The filter cartridge of the welding fume extractor is made of imported filtering material of high filtration precision and can filter out welding fume of 0.5μm. According to the extractor’s work intensity and the amount of dusts, the usage life of the filter cartridge is different. The corresponding indicator on the control panel will light up to indicate different conditions and a power phase sequence indicator, phase absence and short-circuit protection are set inside. It is equipped with automatic shutdown mechanism when the temperature is too high (optional).
On the control panel, it includes:
- Fan Switch


Main feature

1. For low amounts of smoke/dust
2. Occasional use
3. 2m, 3m flexible suction arm are available.
4. CE certification, EMC certification
5. Cleanable Filter


Standard Parameters


Company profile
Shanghai Kaisen Environmental Technology Co.,Ltd has been always committed to designing, R&D and manufacturing of industrial dust collectors.Since 2007 we had been engaged in dust collectors for ten years.Our products are extensively applied to the processing of welding, cutting, grinding, painting, casting, chemical, wood processing, paper and other industries.
Through ten years development, Kaisen has become one of the top brands in China in this field, and the Kaisen factory has been accredited by ISO9001, ISO14001, OSAS18001 system etc.

All of products are certificated by CE, meanwhile we have been exported around the world, for example Japan, UK, Chile, Australia, New Zealand and Vietnam etc.
