5.5kw Downdraft Grinding Table Workbench Automatic Cleaning Ce Approved
1. 5.5kW CE approved high quality grinding dust collector workbench welding table
1. Grinding ventilation table, as grinding is essential before & after welding in welding whokshop. this
product uses the internationally advanced filtration technology, and it’s filtration efficiency for dust
generated in cutting and grinding reaches 99.9%. and ensure high air flow at the same time.
2. It can be designed & manufactured according to customer’s actual needs. the side plate of it can be
designed to open style or closed style according to the conditions of the work place ; and it can also be
designed to be below ventilation or side ventilation according to the actual conditions.
2.Technical parameters
KSDM-5.5-2 series Grinding Welding Fume Extractor
| Air Volume | 5000±300m³/h |
| Motor Power | 5.5kW |
| Working Voltage | 3×380V/50Hz |
| Filtering Area | 36m2 |
| Cleaning way | Full-automatically cleaning |
| Compressed Air | 0.5~0.6MPa |
| Filtration efficiency | >99.9% |
| Noise Level | ≤72±5dB(A) |
| Dimension | 1950(W)×1535(D)×1845(H)mm |
| The actual working table | 1890(W)×855(D)×650(H)mm |
|
weight |
915±15KG |

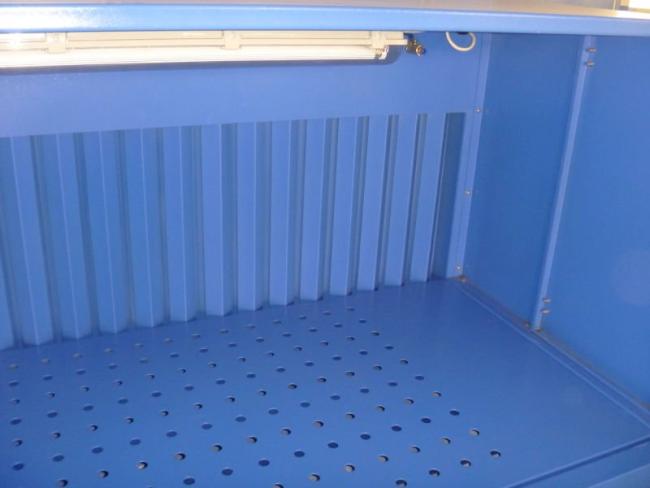

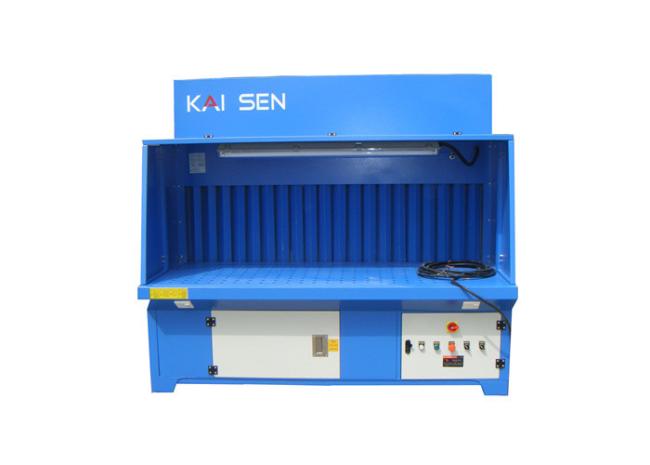

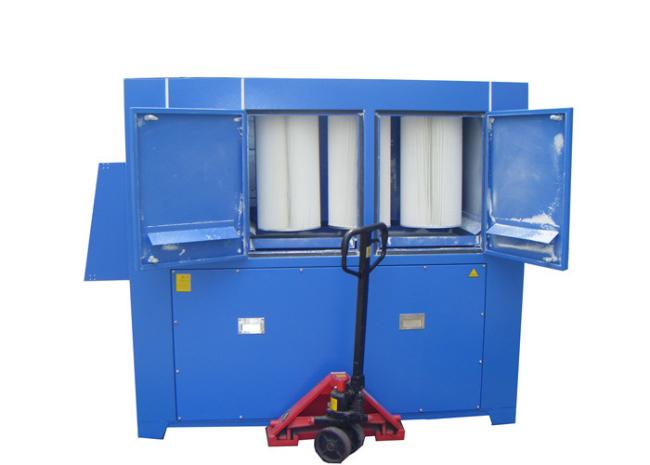

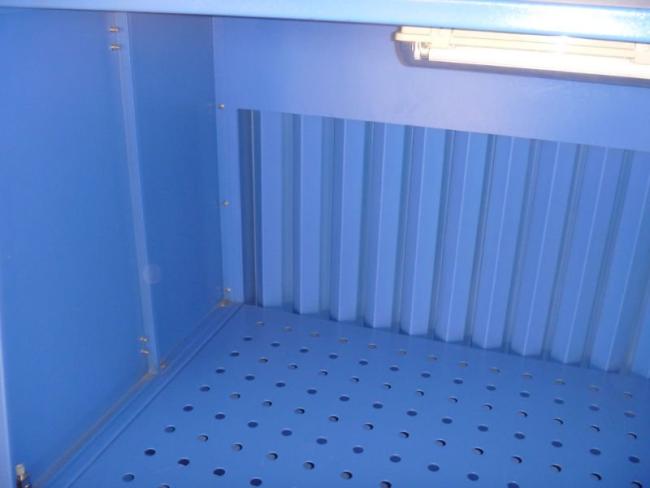

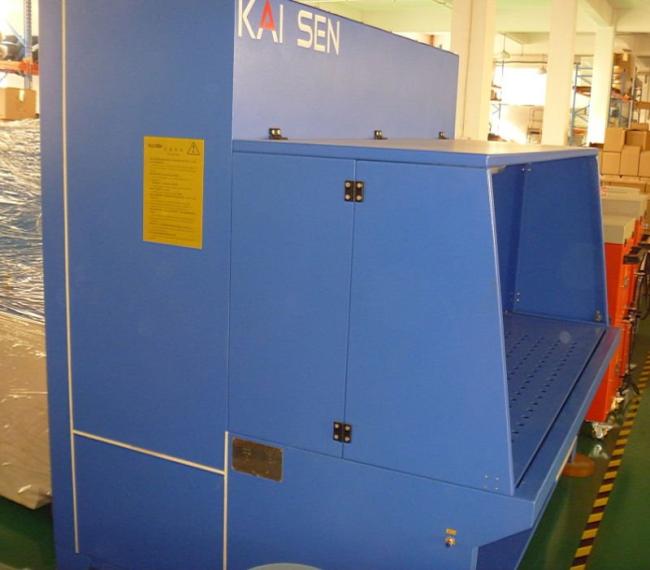

3.Photos for reference
Shanghai Kaisen Environmental Technology Co., Ltd. is always committed to the R&D and production of purifying products such as welding and cutting smog,grinding dust,soot and other fuel-air. We have introduced advanced technologies from abroad. Our materials are selected from a variety of imported components. And they are formed to be a wide range of soot, dust purification products and integrated system engineering products. Our products are widely used in welding, cutting, grinding, painting, casting, chemical, wood processing, tobacco, ceramics, paper and other industries. We can specifically solve various industrial plant pollution problems, and provide special product development and application services, quality products and perfect services for clients.
Our company has rich technical force, advanced equipment, excellent process, perfect detection and a sound quality assurance system. Our company is the first company to pass Environmental Protection Certification in Shanghai. We are authorized by Shanghai Quality Supervision, Inspection and Certification Center. The product performance indicatiors have reached the international leading level.
Our company also has a group of after-sales service members with religious styles and exquisite technologies to provide circumspect services for you. We take markets' requirements as business targets and science technologies as our guidance, and strictly conform to the aim of 'quality first, customer foremost'. Our company uses our abundant capital with the efforts of our staff to provide a comfortable and clean work.
