PTFE Coated Fume Extraction System 380V For Welding / Laser Cutting 7.5KW
Central Dust Collector Machine, Fume Extraction System with Cartridge Filter
Product introduction
Central fume extractor is a series of products developed by our company based on the requirements of different site conditions.
The central fume purification system is controlled by PLC control system. All of operations control and information display are on the control panel with control button and display screen, the operation screen is humanization design and the operating is very convenient.
The structure of integrated design is compact and reasonable. A complete series of models have been developed to meet the different site conditions; whatever your production line is: large scale welding or grinding workshop, welding center, robot welding line, plasma & laser cutting, you will find suitable model for you.
Main features
1. Adjustable air flow
2. CE certification
3. Large air flow, automatically cleaning
4. The filtration efficiency (0.1μm) reaches 99.9%
5. Easy to change filters, cartridge filter
6. Reverse blow cleaning
Application
1. For heavy smoke and dust
2. Traning centres and robotic welding lines,

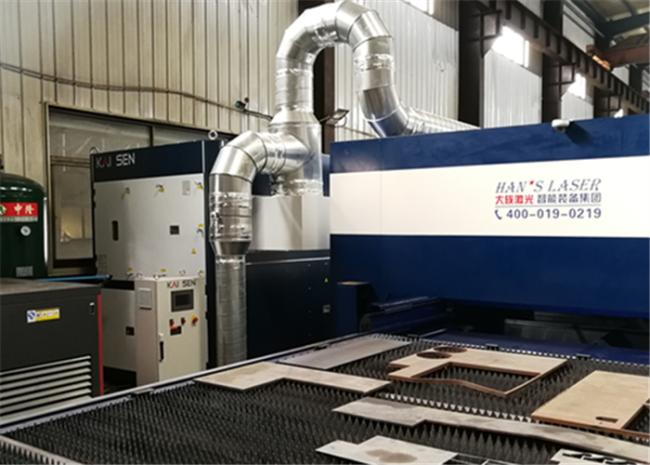

3. Plasma and flame cutting systems,
4. Welding and grinding workshop
Technical parameters
| No. | Item | Parameter |
| 1 | Fan type | centrifugal fan |
| 2 | Treatment of air flow | 8000±500 m3/h |
| 3 | Motor power | 7.5kW |
| 4 | Power supply | 3×380v/50Hz |
| 5 | Filtration area | 135m2 |
| 6 | Number of cartridge filters | 4 pieces |
| 7 | Filter medium | PTFE coated filter element |
| 8 | Filtration efficiency | >99.9% |
| 9 | Solenoid valve | 4 pieces |
| 10 | Compressed air | 0.5～0.6 bar |
| 11 | Noise | ≤72±5dB(A) |
| 13 | Weight | 1420±20kg |
| 14 | Dimensions(excluding fan) |
1800(W)×2000(D)]×2500(H)mm |
