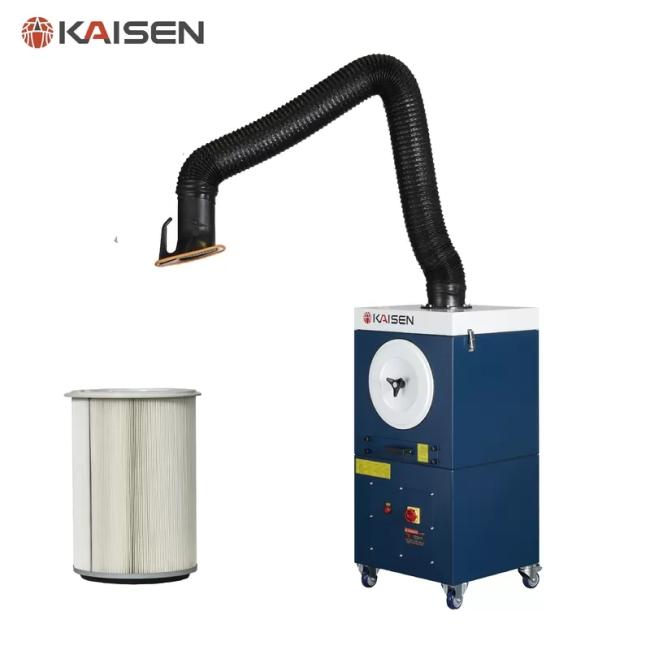

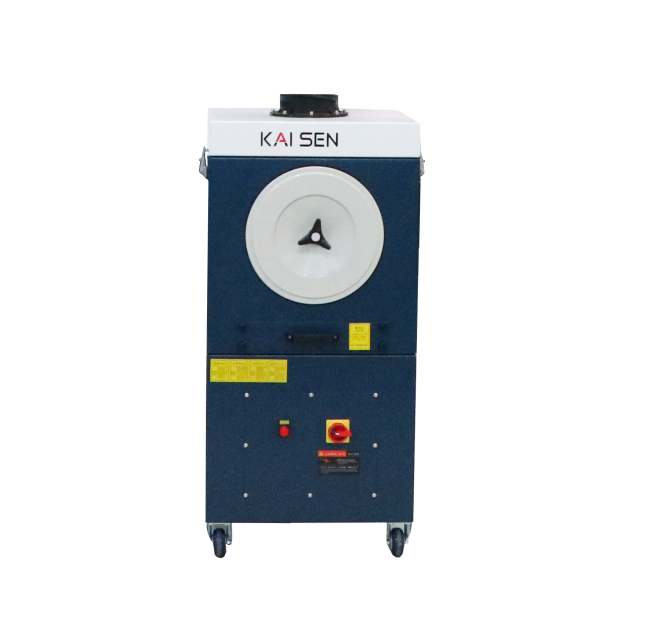

KAISEN 1.5kW Motor Power Welding Fume Extractor For Industry Fume Collection 380V 50HZ
Welding Fume Extractor For Industry Fume Collection 1.5kW Motor Power 380V 50HZ
Technical parameters
| No. | Item | Parameter |
| 1 | Fan type | Centrifugal fan |
| 2 | Fan of air flow | 3000±100m3/h |
| 3 | Treatment of air flow | 1800±100m3/h |
| 4 | Motor power | 1.5kW |
| 5 | Power supply | 415V(±10％)/50Hz |
| 6 | Filtration area | 8 m2 |
| 7 | Number of cartridges filter | 1 piece |
| 8 | Filter medium | Imported PTFE membrane |
| 9 | Filtration efficiency | >99.9% |
| 10 | Noise | ≦74±5dB(A) |
| 11 | Internal suction arm (1 piece) | 2 mφ160mm |
| 12 | Weight(excluding suction arm) | 120±10 kg |
| 13 | Dimensions(excluding suction arm) | 550×550×1165mm |
Company profile
Shanghai Kaisen Environmental Technology Co., Ltd has been always committed to designing, R&D and manufacturing of industrial dust collectors. Since 2007 we had been engaged in dust collectors for ten years. Our products are extensively applied to the processing of welding, cutting, grinding, painting, casting, chemical, wood processing, paper and other industries.
Product introduction

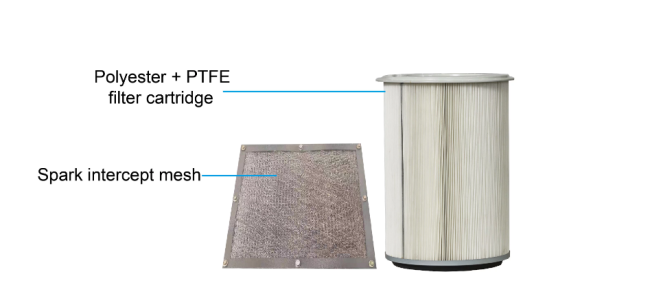

The fume comes from the processing will be sucked into the extractor through the hood, first the fume passes the 1st layer preventer plate which will ramify the fume to avoid residual sparks enter into filter layer directly. Finally, the fume enters the second layer of HEPA filter cartridge for ultimate purification, and HEPA' s filtration efficiency can reach 99.9%. As the filtering precision of the main filter cartridge reaches the indoor emission standard, the filtered clean air can be directly discharged indoor via the vent in the bottom of the extractor.
Main feature

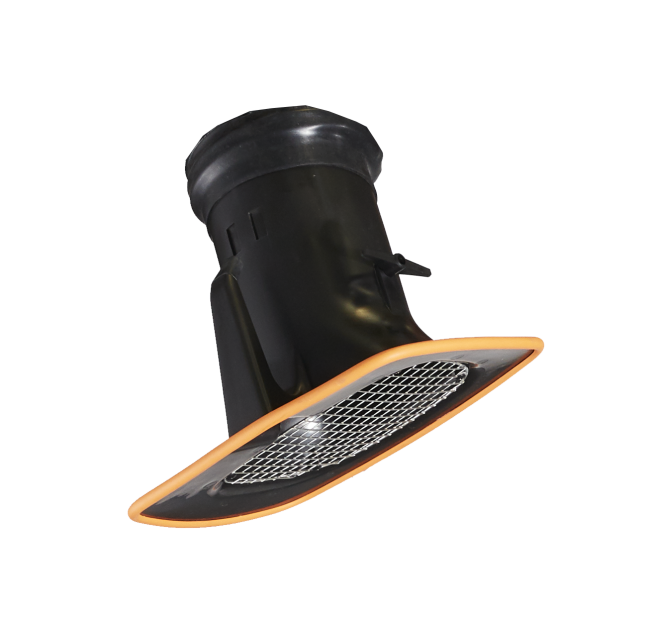

1. Flexible suction arm can rotate 360°and the freedom to stay anywhere.

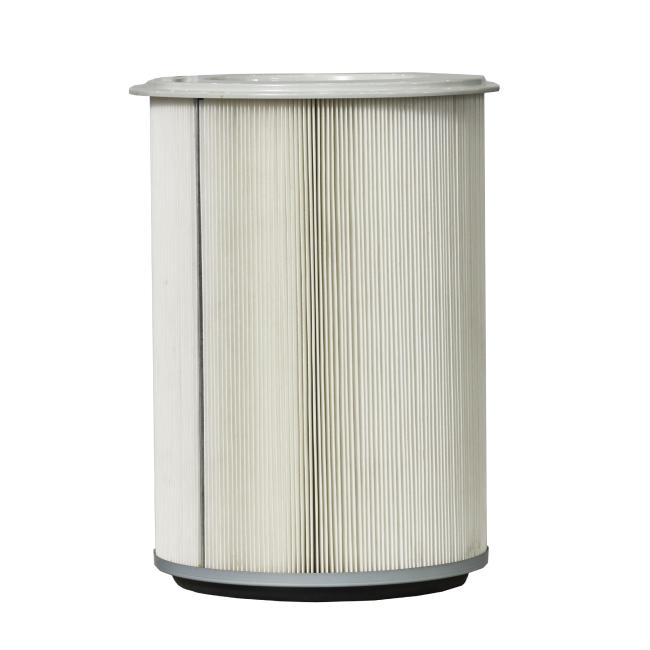

2. The machine adopts HEPA filter filtration, the filtration precision could reach 0.1μm.
3. Depending on needs, 2m, 3m flexible suction arm are available.
4. On the control panel, it includes:
- Fan Switch
- Power Switch
- Power indicating light
Package & Shipping
Package: Package Used Wooden Box without Fumigation
The package would include spare parts box and machine installation tools.
Transportation By Sea or By Air are both Acceptable.
