220V 50Hz Industrial Fume Extractor With Exhaust Arm 510 × 610 × 990mm

220V/50Hz Industrial fume extraction system with exhaust arm 510×610×990mm

1. Mobile welding fume extractor has two directional and two rotary polyurethane casters with brake device for easy moving and stationing.It is

suitable for the purification of fume and dust generated in all kinds of welding, grinding and other places as well as for olleting rare metal particles

and precious material.

2. Suction arm can be rotated by 360 "and can reach the position flexibly and easily by pulling the handle on the hood and position in the absence

of external force, Depending on needs, 2m, 3m flexible suction arm are available, Suction arm uses high temperature resistant, flame retardant

and wearable composite material, it will not crack after burning through by spark and has a longer usage life. The diameter of suction arm is

160mm.

3. The fume comes from the processing will be sucked into the extractor through the hood, first the fume passes the 1st layer preventer plate

which will ramify the fume to avoid residual sparks enter into HEPA filter layer directly. Finally, the fume enters the second layer of HEPA filter

cartridge or ultimate purification, and HEPA"s filtration efficiency can reach 99.9%. As the filtering precision of the main filter cartridge reaches the

indoor emission standard, the filtered clean air can be directly discharged indoor via the vent in the bottom of the extractor.The filter cartridge of

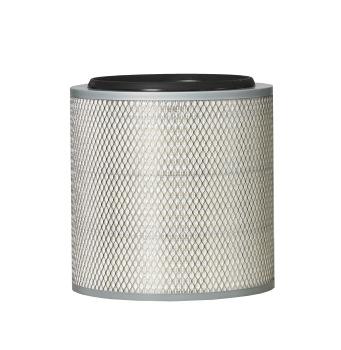

the welding fume extractor is made of imported filtring material of high filtration precision and can filter out welding fume of 0.5um. According to

the extractor's work intensity and the amount of dusts, the usage life of the filter cartridge is different. Thecorresponding indicator on the control

panel will light up to indicate different conditions and a power phase sequence indicator, phase absence and short-circuit protection are set inside.

It is equipped with automatic shutdown mechanism when the temperature is too high (optional).

On the control panel, it includes:- Fan switch

- Pressure difference gauge

Package & Shipping

Package: Package Used Wooden Box without Fumigation

The package would include spare parts box and machine installation tools.

Transportation By Sea or By Air are both Acceptable.
