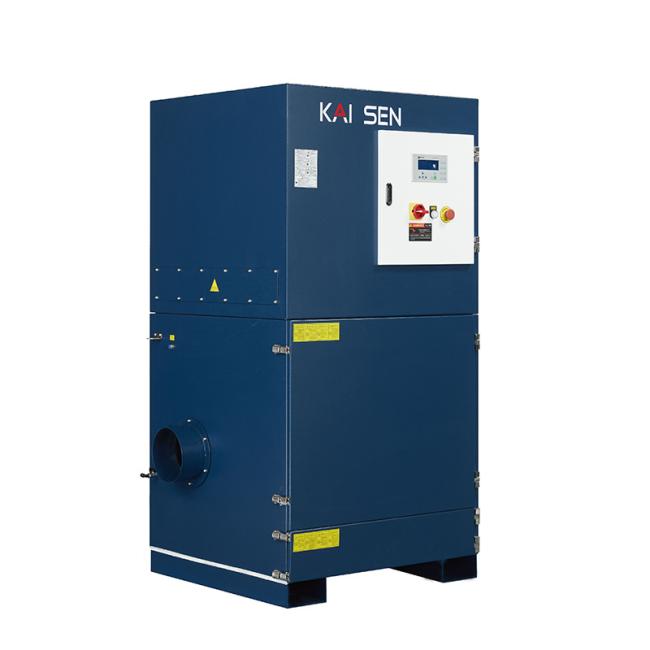

1.5KW Power Laser Dust Collector 200mm Inlet Diameter 720 * 700 * 1745mm
1.5 KW Power Laser Dust Collector 200mm Inlet Diameter 720*700*1745mm
Features
1. The air purifier is suitable for the purification of all kinds of smoke and dust generated by welding, grinding, recycling of rare metals and precious materials.
2. In view of possible fire and slag particles, three protective measures are adopted inside the purifier to make it longer life, safer and more reliable.
3. The intelligent model uses PLC automatic control to make the operation simple, and the filter rotation uses automatic cleaning in all directions, so as to have a more thorough cleaning of the filter surface, always in all directions, to ensure cleaning, so as to have a more thorough cleaning of the filter On the surface, it is always ensured that 0.1μm high-precision smoke can meet GB indoor emission standards.
4. Power supply phase sequence command, lack of phase short circuit protection, and shutdown protection measures in case of high temperature.
5. Large air volume, low noise and good capture effect. The suction hose adopts true high temperature resistant and wear-resistant composite materials, without cracks and damages, and has a longer service life.
6. Photoelectric switch, high efficiency and energy saving, with cantilever cover (optional).
7. The plasma and laser cutting fume extractor averagely divides the cutting platform into partitions of equal width ,a dust collector for both fume absorption and dust holding is configured in each partition. The valve is set at the end of each partition, and is in linkage with the pneumatic tappet. When the cutting gun arrives any position, the corresponding valve automatically opens, and always ensures that ventilation is just implemented only in the cutting areas that generate fume. This system greatly reduces the amount of wind needed, thus saves the consumption of electric energy.
main feature
1. CE certification is available.
2. It is suitable for laser cutting and exhausting smoke of the working table with the size below 1500x1500m
3. Low air volume, automatic cleaning, easy maintenance and small size.
4. Excellent shell and structure design to ensure the durability of the machine.
5. Also suitable for cutting plastic materials after replacing filter media and increasing carbon activity filter.
Technical parameters
| No. | Item | Parameter |
| 1 | Fan type | centrifugal fan |
| 2 | Treatment of air flow | 2400±100 m3/h |
| 3 | Motor power | 1.5 kW |
| 4 | Power supply | 3×380 or 415V/50Hz |
| 5 | Filtration area | 20m2 |
| 6 | Number of cartridge filters | 2 pieces |
| 7 | Filter medium | PTFE coated filter element |
| 8 | Filtration efficiency | >99.9% |
| 9 | Solenoid valve | 2 pieces |
| 10 | Compressed air | 5～6 bar |
| 11 | Ash hopper volume | 8 L |
| 12 | Noise | ≤75±5dB(A) |
| 13 | Weight | 225±10kg |
| 14 | Dimensions(excluding suction arm) | 720(L)×700(W)×1750(H)mm |
Package & Shipping
Package: Package Used Wooden Box without Fumigation
The package would include spare parts box and machine installation tools.
Transportation By Sea or By Air are both Acceptable.
