5.5KW Low Noise Central Plasma Dust Collector With 4 Filters For Workshop With CE/RoHS Certificate

Working principle

The vacuum pressure air flowing the blower generates enters the purifying chamber through the suction arm or pipe. The dust contained gas is purified in the purifying chamber through the separation of the filter cartridge. Through different ways of cleaning (manual cleaning or automatic cleaning) make the ash cake of accumulating in the surface of the filter fall into the fume drum. After cleaning, the clean air through the air duct is exhausted out by blower.

Product introduction

    Central Control system implements real-time monitoring and analysis on a number of important

    parameter of equipments in the operation and show them in the display, and it has self-diagnosis

    function, showing abnormal and error conditions in the operation of the equipment automatically.

    The central dust & fume purification system's performance is controlled by PLC controlling system.

Main features

1. CE certification is available.

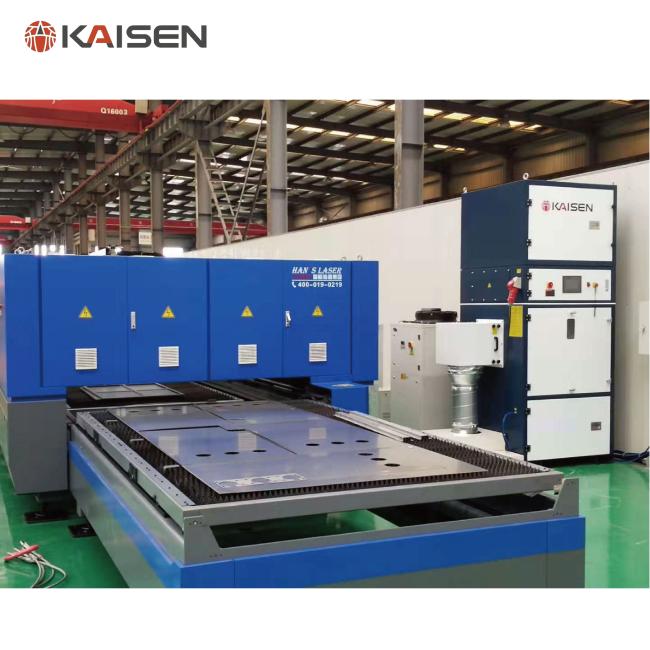

2. Application for 3-5 welding units fume disposal, small or medium plasma cutting fume disposal androbot

    welding housing fume disposal and so on.

3. Large air flow, automatically cleaning, maintaining easy, preprocessor to intercept the spark.

4. Good parts make sure the qualilty, for example, Schneider,CHNT electrics, Siemens PLC and montoring

    screen, USA gas-pressure switch, Japan Toray filtering material, AKZO Nobel spraying powder etc.

5. Exellent housing and structure design makes sure the machine is durable.

Technical parameters
