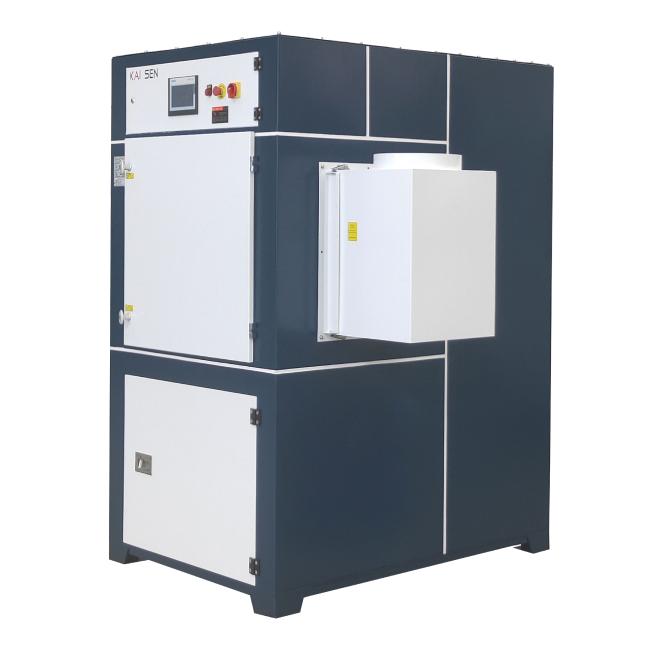

High Efficiency Air Dust Collector Weld Grind Fume Smoke Extractor 1170*1663*2150MM
5.5/7.5KW Central Dust Collector Weld Grind Fume Smoke Extractor 1170*1663*2150
Function Introductions
Surface filtration precision
The functionality of an extractor lies in the filter cartridge’s material, Kaisen has been dedicating to upgrading filter cartridge.
Kaisen filter element is specially developed for the purification of fume and tiny particles generated in welding and cutting, which solved this industry’s problem of low filtration precision and filter element’s blocking. Kaisen filter cartridge uses polyester fibers (glass fiber) material, and with a special heat process the outer surface of the cartridge is covered with a layer of PTFE (polytetrafluorethylene) membrane. The filter cartridge’s interior wall is thin and firm, the surface membrane has very even pores, and form a network of pores’ of diameter less than 0.1μm.
In order to increase filtration area, all of filters are folded in “v” shape, the folding angle is sharp, so no dusts will be retained in the “V” shaped folds when the vertically placed filter cartridge is blow-cleaned. Dusts directly fall into the dust collector below and won’t cause interactive pollution.
Reverse blow cleaning
Rotary dust blowing device is inserted inside the filter cartridge and very close to the cartridge’s inner wall. When the solenoid valve opens, compressed air rush into two pipes drilled with nozzles, implementing rotary blowing to clean every part of the filter cartridge. Compared with externally placed blowing nozzles, rotary dust blowing nozzles’ blow force is even on every part of the cartridge, and have a thorough cleaning to avoid big noise and damage to the cartridge caused by instant huge blow impact of the externally placed blowing method.
Technical parameters
| Model | KSDC-8604B | KSDC-8604B1 |
| Air flow | 4500 (m3/h) | 6800 (m3/h) |
| Motor Power | 5.5 (kw) | 7.5 (kw) |
| Voltage | 3x380V/50 Hz | 3x380V/50 Hz |
| Filtering area | 60(m2) 4 pcs filter cartridge | 60(m2) 4 pcs filter cartridge |
| Surface Cleaning Way | Automatic Cleaning | Automatic Cleaning |
| Compressed Air | 0.5-0.6 (MPa) | 0.5-0.6 (MPa) |
| Filtration Efficiency | >99.9% | >99.9% |
| Noise | ≤72 dB(A) | ≤72 dB(A) |
| Demission | 1170×1633×2150(mm) | 1170×1163×2150(mm) |
| Weight | 730 ±20(kg) | 750 ±20(kg) |
|
Notes:
|
||
Package & Shipping
Package: Package Used Wooden Box without Fumigation
The package would include spare parts box and machine installation tools.
Transportation By Sea or By Air are both Acceptable.
