Metal Processing Integration Industrial Dust Collecting System For Plasma Cutter Or Multi-Units Welding

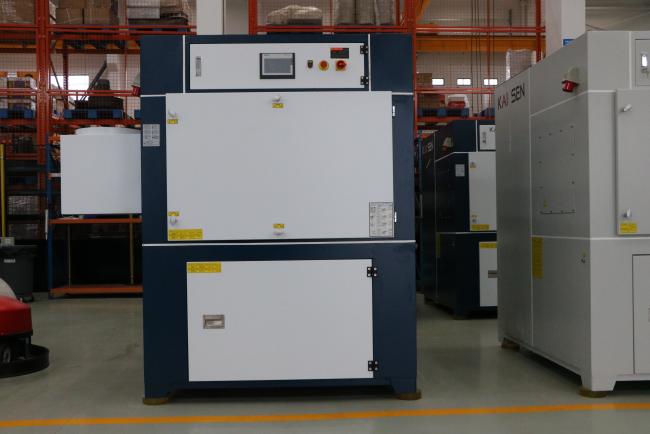

Metal Processing Integration Dust Collecting System For Plasma Cutter Or Multi-Units Welding KSDC-8606B/B1
Product Introduction
1. Central Control system implements real-time monitoring and analysis on a number of important parameter of equipments in the operation and
show them in the display, and it has self-diagnosis function, showing abnormal and error conditions automatically in the operation of the equipment.The central dust &fume purification system's performance is controlled by PLC controlling system.
2. Central fume&dust purifier is a series product researched, developed and designed by the company based on the requirements of different site
conditions.The design of integrated units is compact and reasonable. A complete series of specifications has been developed to
meet the on-site different work-in-conditions, whether large-scale welding or grinding shop, welding centers, robotic welding production lines,
plasma curring, or laser cutting blanking production lines, you can always find suitable model.
Technical Parameters
| Industrial Central Laser Welding Fume & Dust Extractor | ||
| Model | KSDC-8606B | KSDC-8606B1 |
| Air flow | 6500 (m3/h) | 9500 (m3/h) |
| Motor Power | 7.5 (kw) | 11 (kw) |
| Voltage | 3x380V/50 Hz | 3x380V/50 Hz |
| Filtering area | 90(m2) 6 pcs filter cartridge | 90(m2) 6 pcs filter cartridge |
| Surface Cleaning Way | Automatic Cleaning | Automatic Cleaning |
| Compressed Air | 0.5-0.6 (MPa) | 0.5-0.6 (MPa) |
| Filtration Efficiency | >99.9% | >99.9% |
| Noise | ≤72 dB(A) | ≤72 dB(A) |
| Demission | 1750×1620×2150(mm) | 1750×1620×2150(mm) |
| Weight | 1050 ±20(kg) | 1120 ±20(kg) |
|
Notes:
|
||
Applications
1. Middle to high levels of smoke and dust
2. Training centres and robotic welding lines
3. Laser & plasma and flame cutting systems
4. Welding and grinding shops
Package & Shipping
Package: Package Used Wooden Box without Fumigation
The package would include spare parts box and machine installation tools.
Transportation By Sea or By Air are both Acceptable.
