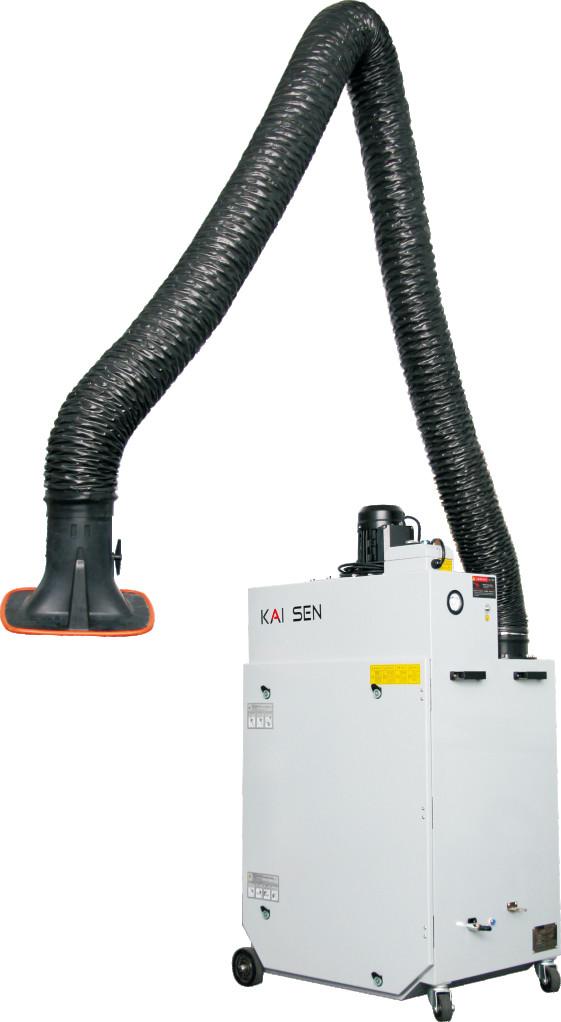

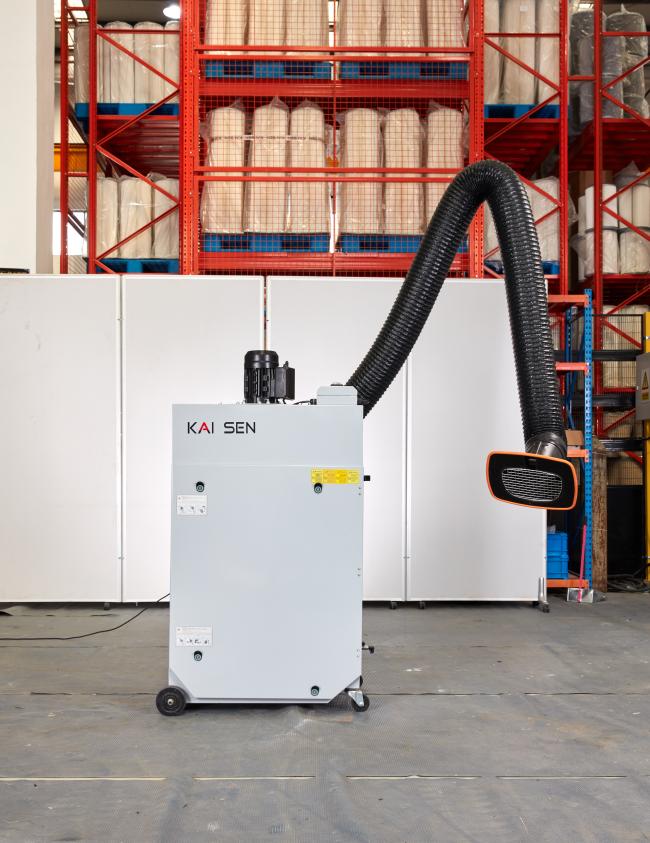

KAISEN KSJ-1.1C KAISEN Energy-Saving Intelligent Welding Fume Extractor Dust Remover
KAISEN KSJ-1.1C KAISEN Energy-Saving Intelligent Welding Fume Extractor Dust Remover
Application
Suitable for air purification, fume filtration during different welding processing:
1. Argon arc welding;
2. Electric-arc welding;
3. Carbon-dioxide arc welding;
4. Electric slag pressure welding;
5. Oxygen-acetylene Gas Welding;
6. Flash butt welding ultrasonic welding;
7. Other Welding Process.
Working Principle
Dust laden fume is drawn into the machine through the positionable extraction hood which then hits the deflector at the extractor’s inlet, this slows the fume forming a downward moving air stream causing larger particles to fall into the dust collector tray with the fine dust particles then being removed by the filter cartridge, the clean air is directly discharged back into the workshop. As required the filter unit can be connected to a compressed air supply to remove dust build-up from the surface of the filter cartridge.
Parameters
| No. | Item | Parameter |
| 1 | Fan type | centrifugal fan |
| 2 | Treatment of air flow | 1000±100 m3/h |
| 3 | Motor power | 1.1kW |
| 4 | Power supply | 220V/50Hz |
| 5 | Filtration area | 20 m2 |
| 6 | Number of filter cartridges | 1 piece |
| 7 | Filter medium | Synthetic wood pulp fiber filter paper |
| 8 | Filtration efficiency | >99.9% |
| 9 | Noise | ≤74±5dB(A) |
| 10 | One suction arm | Ø160mm*2m |
| 11 | Weight (excluding suction arm) | 135±5KG |
| 12 | Dimensions(excluding suction arm) | 800(L)×625(W)×1540(H)mm |
Company Introduction
Shanghai Kaisen Environmental Technology Co.,Ltd has been always committed to designing, R&D and manufacturing of industrial dust collectors.Since 2007 we had been engaged in dust collectors for ten years.Our products are extensively applied to the processing of welding, cutting, grinding, painting, casting, chemical, wood processing, paper and other industries.
Through ten years development, Kaisen has become one of the top brands in China in this field, and Kaisen factory has been accredited by ISO9001, ISO14001, OSAS18001 system etc.
We have cooperated with some famous enterprises such as CATERPILLAR (Xuzhou) INC, Buhler (Changzhou) Machinery Co., Ltd., BMW Automobile, Thyssen Krupp elevator, SIEMENS VAI, SANNY Heavy Industry etc.
Package & Shipping
Package: Package Used Wooden Box without Fumigation
The package would include spare parts box and machine installation tools.
Transportation By Sea or By Air are both Acceptable.
