Stable PTFE Mobile Dust Collector With Single Suction Arm 2 Years Warranty
KAISEN 1.5kW PTFE Mobile Dust Collector With Single Suction Arm 550*550*1650mm
Technical parameters
| KAISEN 1.5kW PTFE Mobile Dust Collector With Single Suction Arm 550*550*1650mm |
| No. | Item | Parameter |
| 1 | Fan type | Centrifugal fan |
| 2 | Fan of air flow | 3000±100m3/h |
| 3 | Treatment of air flow | 1800±100m3/h |
| 4 | Motor power | 1.5kW |
| 5 | Power supply | 415V(±10％)/50Hz |
| 6 | Filtration area | 8 m2 |
| 7 | Number of cartridges filter | 1 piece |
| 8 | Filter medium | Imported PTFE membrane |
| 9 | Filtration efficiency | >99.9% |
| 10 | Noise | ≦74±5dB(A) |
| 11 | Internal suction arm (1 piece) | 2 mφ160mm |
| 12 | Weight(excluding suction arm) | 120±10 kg |
| 13 | Dimensions(excluding suction arm) | 550×550×1165mm |

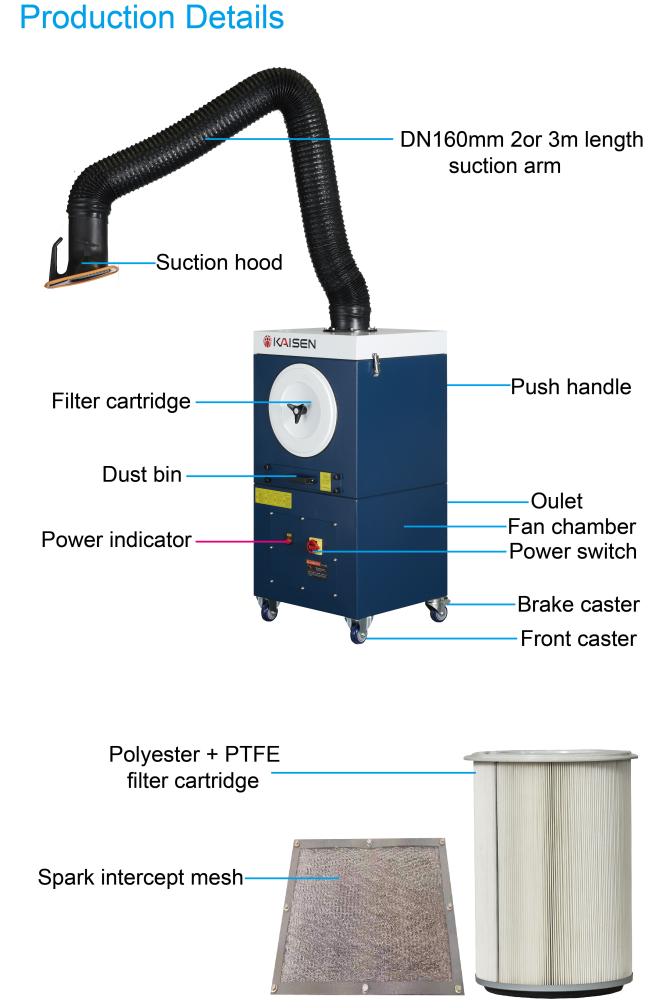

Product introduction
The fume comes from the processing will be sucked into the extractor through the hood, first the fume passes the 1st layer preventer plate which will ramify the fume to avoid residual sparks enter into filter layer directly. Finally, the fume enters the second layer of HEPA filter cartridge for ultimate purification, and HEPA' s filtration efficiency can reach 99.9%. As the filtering precision of the main filter cartridge reaches the indoor emission standard, the filtered clean air can be directly discharged indoor via the vent in the bottom of the extractor.
Working Principle
The fume comes from the processing will be sucked into the extractor through the hood, first the fume passes the 1st layer preventer plate which will ramify the fume to avoid residual sparks enter into filter layer directly. Finally, the fume enters the second layer of HEPA filter cartridge for ultimate purification, and HEPA ’s filtration efficiency can reach 99.9%. As the filtering precision of the main filter cartridge reaches the indoor emission standard, the filtered clean air can be directly discharged indoor via the vent in the bottom of the extractor.
Package & Shipping
Package: Package Used Wooden Box without Fumigation
The package would include spare parts box and machine installation tools.
Transportation By Sea or By Air are both Acceptable.
