Manual Cleaning Welding Fume Extractor / Welding Fume Collector 8㎡ Filtering Area
KAISEN CE Certification KSJ-1.5S Welding Dust Collector With PTFE Membrane Filter 1.5kw
Main features
Mobile welding fume extractor has two directional and two rotary polyurethane casters with brake device for easy moving and stationing. It is suitable for the purification of 'fume and dust generated in all kinds of welding, grinding and other places as well as for collecting rare metal particles and precious material.
The filtration efficiencey can reach 99,9%.As the filtering precision of the main filter cartridge reach the indoor emission standards, after filtration clean air can be directly discharged indoor through the air vent in the bottom of the extractor.
In accordance with the extractor work intensity and the amount of dust, the usage life of the filter is different.
On the control panel, it includes:
- Fan switch
- Power switch
- Power indicating light
Technical parameters
| No. | Item | Parameter |
| 1 | Fan type | Centrifugal fan |
| 2 | Fan of air flow | 3000±100m3/h |
| 3 | Treatment of air flow | 1800±100m3/h |
| 4 | Motor power | 1.5kW |
| 5 | Power supply | 415V(±10％)/50Hz |
| 6 | Filtration area | 8 m2 |
| 7 | Number of cartridges filter | 1 piece |
| 8 | Filter medium | Imported PTFE membrane |
| 9 | Filtration efficiency | >99.9% |
| 10 | Noise | ≦74±5dB(A) |
| 11 | Internal suction arm (1 piece) | 2 mφ160mm |
| 12 | Weight(excluding suction arm) | 120±10 kg |
| 13 | Dimensions(excluding suction arm) | 550×550×1165mm |
What we provide

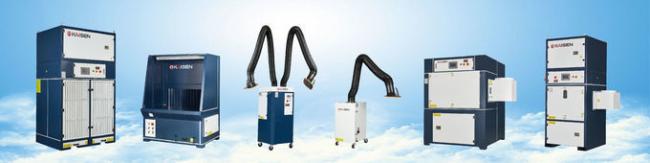

KAISEN produces a wide range industrial fume/dust extraction and collection equipments, such as mobile welding fume extractor,laser fume/dust collector,soldering fume extractor, mobile high vacuum fume extractor,central high vacuum fume extractor,self-circulation purifying tower,plasma cutting valve-type fume extraction system,central/downdraft grinding dust collector...etc. and other spare parts included.
Package & Shipping
Package: Package Used Wooden Box without Fumigation
The package would include spare parts box and machine installation tools.
Transportation By Sea or By Air are both Acceptable.
