Clean Dust Air Portable Welding Smoke Eater For Motor Welding 550 * 550 * 1650mm
KAISEN Industrial Dust Treater/Cleaner KSJ-1.5S For Motor Welding 550*550*1650mm
Technical parameters
| No. | Item | Parameter |
| 1 | Fan type | Centrifugal fan |
| 2 | Fan of air flow | 3000±100m3/h |
| 3 | Treatment of air flow | 1800±100m3/h |
| 4 | Motor power | 1.5kW |
| 5 | Power supply | 415V(±10％)/50Hz |
| 6 | Filtration area | 8 m2 |
| 7 | Number of cartridges filter | 1 piece |
| 8 | Filter medium | Imported PTFE membrane |
| 9 | Filtration efficiency | >99.9% |
| 10 | Noise | ≦74±5dB(A) |
| 11 | Internal suction arm (1 piece) | 2 mφ160mm |
| 12 | Weight(excluding suction arm) | 120±10 kg |
| 13 | Dimensions(excluding suction arm) | 550×550×1165mm |
Main feature
1. Flexible suction arm can rotate 360°and the freedom to stay anywhere.
2. The machine adopts HEPA filter filtration, the filtration precision could reach 0.1μm.
3. Depending on needs, 2m, 3m flexible suction arm are available.
4. On the control panel, it includes:
- Fan Switch
- Power Switch
- Power indicating light
What we provide

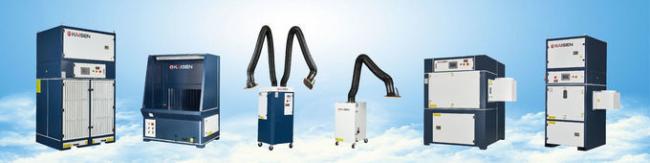

KAISEN produces a wide range industrial fume/dust extraction and collection equipments, such as mobile welding fume extractor,laser fume/dust collector,soldering fume extractor, mobile high vacuum fume extractor,central high vacuum fume extractor,self-circulation purifying tower,plasma cutting valve-type fume extraction system,central/downdraft grinding dust collector...etc. and other spare parts included.
Package & Shipping
Package: Package Used Wooden Box without Fumigation
The package would include spare parts box and machine installation tools.
Transportation By Sea or By Air are both Acceptable.
