Easy Moving Industrial Fume Extractor KSJ-1.5S Series Dust Collector 1.5 KW
KAISEN CE Certification KSJ-1.5S Welding Dust Collector With PTFE Membrane Filter
Technical parameters
| No. | Item | Parameter |
| 1 | Fan type | Centrifugal fan |
| 2 | Fan of air flow | 3000±100m3/h |
| 3 | Treatment of air flow | 1800±100m3/h |
| 4 | Motor power | 1.5kW |
| 5 | Power supply | 415V(±10％)/50Hz |
| 6 | Filtration area | 8 m2 |
| 7 | Number of cartridges filter | 1 piece |
| 8 | Filter medium | Imported PTFE membrane |
| 9 | Filtration efficiency | >99.9% |
| 10 | Noise | ≦74±5dB(A) |
| 11 | Internal suction arm (1 piece) | 2 mφ160mm |
| 12 | Weight(excluding suction arm) | 120±10 kg |
| 13 | Dimensions(excluding suction arm) | 550×550×1165mm |
Types of grinding dust cleaners
1. Mobile welding fume extractor has two directional and two rotary polyurethane casters with brack device for easy moving and stationing.
2 . Suction arm can be rotated by 360° and can reach the position flexibly and easily by pulling the handle on the hood and position in the absence of external force.
3 . The utility model has the advantages of low noise, stable performance, convenient operation and use, etc..
4. As the filtering precision of the main flter cartridge reaches the indoor emission standard the filtered cleaning air can be directly discharged indoor via the vent in the bottom of the extractor.
5. The machine needs to manually take down the filter cartridge for cleaning ash.
6. In accordance with the extractor work intensity and the amount of dust, the usage life of the filter is different.
Company Support
1. Custom services available. We can make suitable solution according to end customer's requirements. For example, we designed the special laser cutting fume extractor for cutting PP, OPP material for Japanese clients in 2018. Meanwhile, we also have experience, technology and capacity to design and complete project overseas.
2. CE and RoHS certification approved. We use imported filter material from Japan Toray Company, and
USA Blue Heaven Technologies company lab's filter cartridge test report improves the reality of filter filtration efficiency and precision.
3. Long quality guarantee, 24 months warranty for machine, and 12 months for filter cartridge. During warranty time if any parts broken without man-made damage, we will send you new parts for free. Beyond warranty, we can still provide you free aftersale service, you only need to pay for the cost of parts.
4. Agents and Distributors worldwide. We have exported many products to overseas market since 2012, and we also built our agents in some countries such as Thailand, UK, Vietnam and Australia etc.
5. Extremely professional and skillful team support clients. We have a professional and strong team, and our professional engineers and sales person will supply exact solution, product and reasonable offer to customer promptly and efficiently.
What we provide

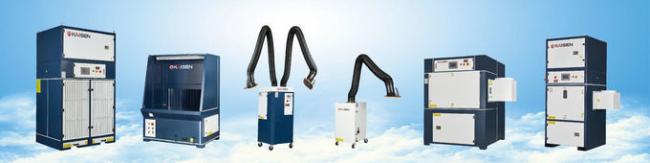

KAISEN produces a wide range industrial fume/dust extraction and collection equipments, such as mobile welding fume extractor,laser fume/dust collector,soldering fume extractor, mobile high vacuum fume extractor,central high vacuum fume extractor,self-circulation purifying tower,plasma cutting valve-type fume extraction system,central/downdraft grinding dust collector...etc. and other spare parts included.
Package & Shipping
Package: Package Used Wooden Box without Fumigation
The package would include spare parts box and machine installation tools.
Transportation By Sea or By Air are both Acceptable.
