Mobile Industrial Dust Collector 99.9% Efficiency With Exhaust Arm For Welding / Grind
KAISEN Industrial Dust Collector With Exhaust Arm For Welding,Grind, Cutting 510*610*990mm

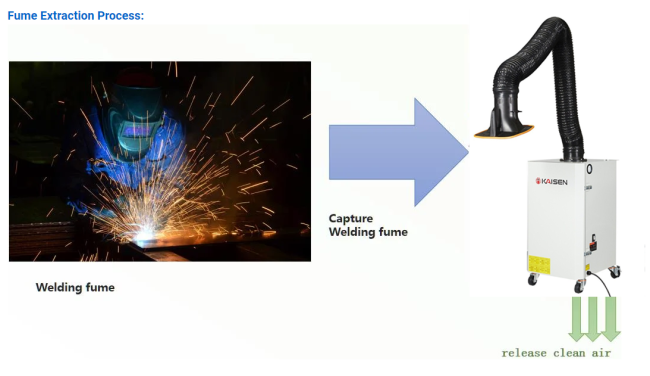

Working principle
Main features
1. Passed CE certification and EMC test report.
2. The blister cover can adjust the air flow through the valve.
3. It is especially suitable for small smoke conditions such as TIG and MIG.
4. Small size, easy to move, low power consumption and low price. Enter translation page.
Standard Parameters
| No. | Item | Parameter |
| 1 | Fan type | centrifugal fan |
| 2 | Treatment of air flow | 1000±100 m3/h |
| 3 | Motor power | 0.75kW |
| 4 | Power supply | 220/50Hz |
| 5 | Filtration area | 15 m2 |
| 6 | Number of filter cartridges | 1 piece |
| 7 | Filter medium | Synthetic wood pulp fiber filter paper |
| 8 | Filtration efficiency | >99.9% |
| 9 | Noise | ≤74±5dB(A) |
| 10 | Ash hopper volume | 2 L |
| 11 | One suction arm | Ø160mm*2m |
| 12 | Weight (excluding suction arm) | 98±5KG |
| 13 | Dimensions(excluding suction arm) | 510×610×990mm |
What we provide
KAISEN produces a wide range industrial fume/dust extraction and collection equipments, such as mobile welding fume extractor,laser fume/dust collector,soldering fume extractor, mobile high vacuum fume extractor,central high vacuum fume extractor,self-circulation purifying tower,plasma cutting valve-type fume extraction system,central/downdraft grinding dust collector...etc. and other spare parts included.
Package & Shipping
Package: Package Used Wooden Box without Fumigation
The package would include spare parts box and machine installation tools.
Transportation By Sea or By Air are both Acceptable.
