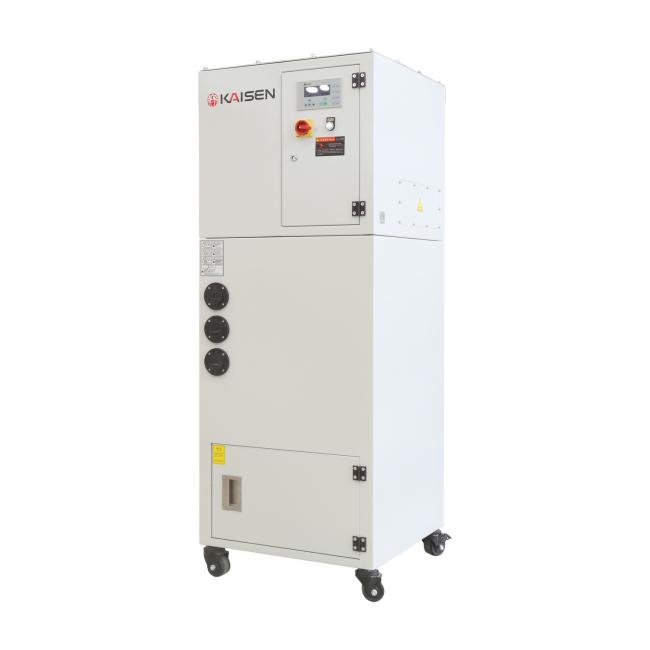

Industry Robots Welding Smoke Extractor KSG-5.5A Fume Extraction 5.5KW
KAISEN Industry Robots Welding Dust Extractor KSG-5.5A Fume Extraction 5.5KW
Advantages
The filter cartridge’s cleaning is easy and thorough (Omni bearing blow cleaning from inside the filter cartridge).
Intelligent control: Setting blow cleaning time according to filter cartridge’s property and the working environment, implementing automatic safe control.
Main features
1. It is suitable for the welding occassion of frequently changing.
2. Professional solving the robot welding fume issue with the special suction nozzule.
3. DN44 mm hose is available, it is easy to move and install in the process of using.
4. High efficiency vacuum pressure fan makes sure the usage life and suction force & air flow.
Technical parameters
| Model | KSG-3.4A | KSG-5.5A |
| Treatment of air flow | 450 ±10m3/h | 700m±103/h |
| Motor Power | 3.4 Kw | 5.5Kw |
| Voltage | 380 V/50 Hz | 380 V/50 Hz |
| Filtering area | 20 m2 | 20m2 |
| Cleaning Methods | Automatic Cleaning | Automatic Cleaning |
| Compressed Air | 26000-29500pa | 26000-29500pa |
| Filtration efficiency | >99.9% | >99.9% |
| Noise | ≤72±5dB(A) | ≤72±5dB(A) |
| Weight | 265±5Kg | 295±10Kg |
Work principle
High vacuum self-cooling fan’s working induces strong vacuum suction force, forcing fume to move towards the fume inlet, and enter into the purifier to be purified. While sparks are intercepted by the metal mesh filter element, after that, the fume is ramified evenly by deflector to be filtered by the filter cartridge, during the same time, big particles fall into the dust collector under gravity, and small particles floating in vortex caused by suction force will be filtered by the filter cartridge. Small particles coalesce on filter cartridge’s layer surface, then under gravity fall into the dust collector. Purified air is discharged through the vent into workshop.
Company profile

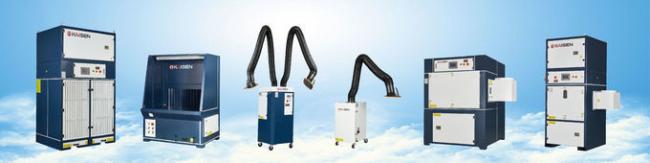

Shanghai Kaisen Environmental Technology Co.,Ltd has been always committed to designing, R&D and manufacturing of industrial dust collectors.Since 2007 we had been engaged in dust collectors for ten years.Our products are extensively applied to the processing of welding, cutting, grinding, painting, casting, chemical, wood processing, paper and other industries.
Through ten years development, Kaisen has become one of the top brands in China in this field, and Kaisen factory has been accredited by ISO9001, ISO14001, OSAS18001 system etc.
We have cooperated with some famous enterprises such as CATERPILLAR (Xuzhou) INC, Buhler (Changzhou) Machinery Co., Ltd., BMW Automobile, Thyssen Krupp elevator, SIEMENS VAI, SANNY Heavy Industry etc.
Package & Shipping
Package: Package Used Wooden Box without Fumigation
The package would include spare parts box and machine installation tools.
Transportation By Sea or By Air are both Acceptable.
